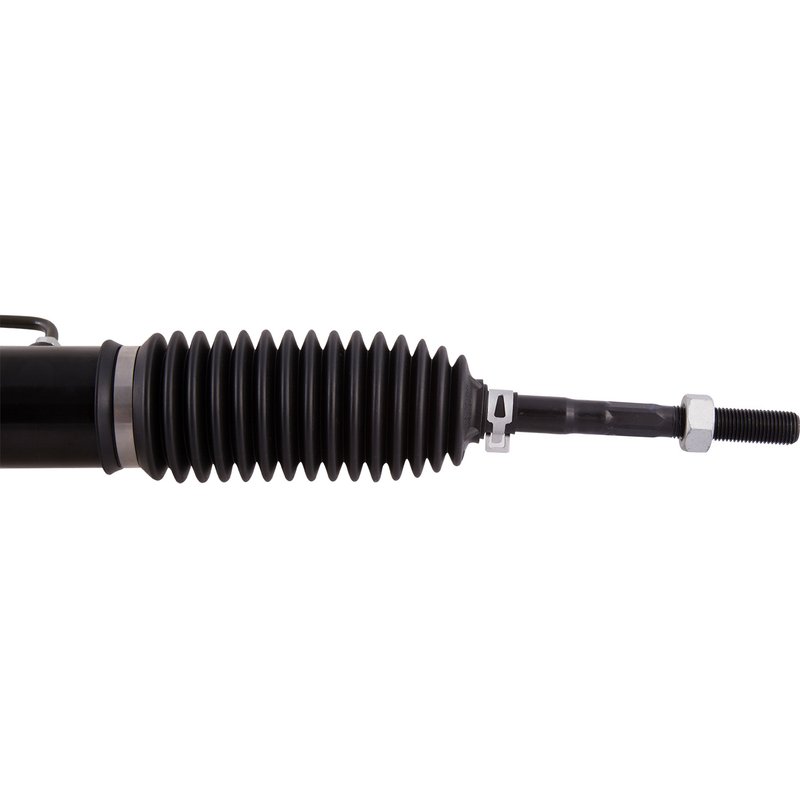

PWR 42-2464 Rack and Pinion Assembly

Overview of PWR Hydraulic Rack and Pinion Assembly 42-2464

The PWR Rack and Pinion Assembly 42-2464 is designed for precise steering control in select Dodge and Hyundai vehicles. This hydraulic rack and pinion unit is engineered to restore steering performance for models like the Hyundai Accent and Dodge Attitude.

• Hydraulic type rack and pinion assembly
• Includes mounting brackets and inner tie rods
• Two mounting holes for secure installation
• End to end length of 1047 mm
• 3.1 total turns lock to lock for responsive steering
• 36 spline steering input shaft with 18 mm diameter
• Female inlet and outlet line fittings (14 mm and 16 mm respectively)
• Gasket or seal included for leak prevention
• Compatible with Dodge Attitude and Hyundai Accent models

Detailed Product Description

The PWR 42-2464 rack and pinion assembly is a hydraulic steering component designed to replace worn or damaged steering racks in Dodge Attitude and Hyundai Accent vehicles. This assembly features a 36 spline steering input shaft with an 18 mm diameter, ensuring compatibility with the original steering system. The unit includes mounting brackets and inner tie rods, but outer tie rods and mounting hardware are not included, so additional parts may be required for a complete installation.

With a total of 3.1 turns lock to lock, this rack provides a balance between steering responsiveness and control. The assembly measures 1047 mm from end to end, matching OEM specifications for proper fitment. Both inlet and outlet line fittings are female, sized at 14 mm and 16 mm respectively, facilitating straightforward hydraulic line connections. A gasket or seal is included to help maintain a secure, leak-free installation.

Compatible Vehicles and Applications

This rack and pinion assembly is compatible with the following vehicles:

• Dodge Attitude
• Hyundai Accent

It is intended for use in hydraulic steering systems requiring a replacement rack that matches the original equipment specifications.

Common Steering Issues Addressed

• Excessive play or looseness in steering
• Leaking hydraulic fluid from the steering rack
• Difficulty in steering or uneven steering response
• Noise or clunking sounds during steering maneuvers
• Worn or damaged inner tie rods affecting alignment

Installation Notes and Tips

• Verify compatibility with your specific Dodge Attitude or Hyundai Accent model year before installation
• Mounting hardware is not included; ensure you have the necessary bolts and fasteners
• Inspect and replace outer tie rods if necessary, as they are not included with this assembly
• Use the included gasket or seal to prevent hydraulic fluid leaks
• Bleed the hydraulic steering system after installation to remove air and ensure proper function

Quality Assurance and Warranty

The PWR 42-2464 rack and pinion assembly is manufactured to meet OEM standards for fit and function. It includes a gasket or seal to ensure a reliable hydraulic connection. While specific warranty details are not provided, PWR products typically come with a limited warranty against defects in materials and workmanship. It is recommended to consult the product documentation or supplier for exact warranty terms.
