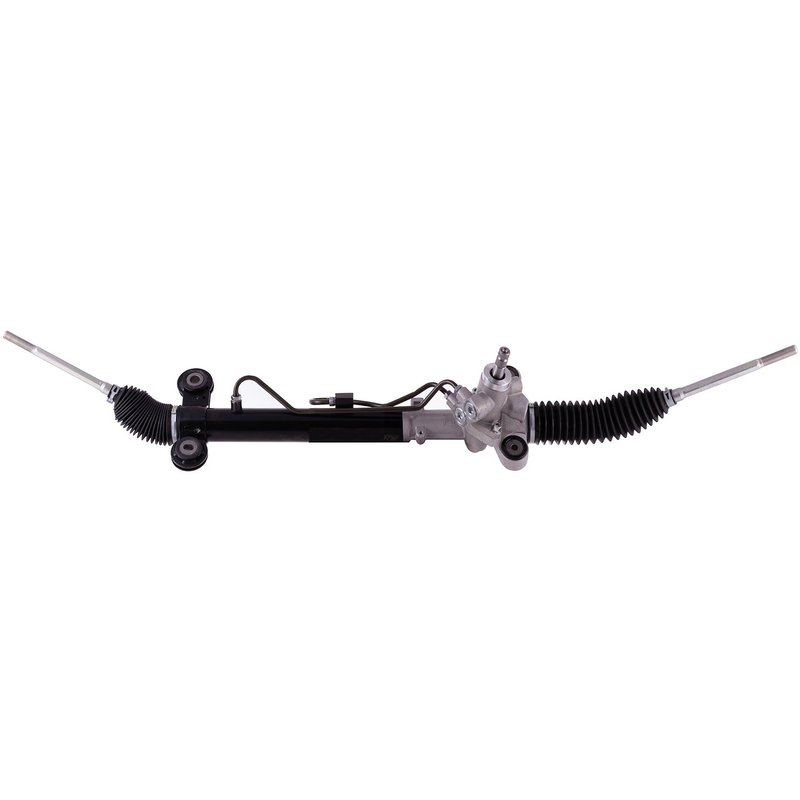

PWR 42-2549 Rack and Pinion Assembly

PWR 42-2549 Rack and Pinion for Honda CR-V

The PWR 42-2549 is a hydraulic rack and pinion assembly built for direct-fit replacement on select 2007-2011 Honda CR-V models built in Japan. It is engineered and tested for leak resistance, pressure, noise, and function to support consistent steering response.

Key Features

• Hydraulic rack and pinion assembly for steering system service
• Direct-fit design for easier installation on the correct application
• Fits 2007-2011 Honda CR-V, Japan Built
• Inner tie rods included; outer tie rods not included
• Gasket or seal included for installation support
• 36-spline steering input shaft with 17.4 mm diameter
• 4 mounting holes, 1256 mm end-to-end length, 2.8 turns lock to lock
• Female inlet and outlet line fittings

Detailed Description

PWR part number 42-2549 is a hydraulic rack and pinion assembly for steering repair on the Honda CR-V. This unit is built to match the original steering layout for 2007-2011 Honda CR-V, Japan Built applications, with direct-fit dimensions and connection points that support OE-style replacement work. It cross-references Honda 53601SWAA03 for the same application.

The assembly includes inner tie rods and a gasket or seal, while mounting hardware, mounting brackets, and outer tie rods are not included. Key specifications include a 36-spline input shaft, 17.4 mm input shaft diameter, 18 mm inlet fitting, 16 mm outlet fitting, and female line connections on both ports. PWR 42-2549 is also cross-referenced to Anchor 2119 for the same application.

What This Part Helps Address

• Excessive steering play or looseness
• Fluid leakage from the steering rack assembly
• Rough, noisy, or inconsistent hydraulic steering operation
• Worn internal rack components affecting steering feel
• Steering response issues on a 2007-2011 Honda CR-V, Japan Built

Installation Notes and Tips

Verify the vehicle is a 2007-2011 Honda CR-V, Japan Built before ordering. Confirm the 36-spline input shaft, 17.4 mm shaft diameter, and female inlet and outlet fittings match the original unit. Transfer or replace any required external components not included with the assembly, and inspect hydraulic lines, seals, and alignment settings during installation.

Quality Assurance

PWR states that its racks and gears are engineered in the USA and tested for leaks, pressure, noise, and function before release. That validation supports consistent performance checks for steering system replacement work.
