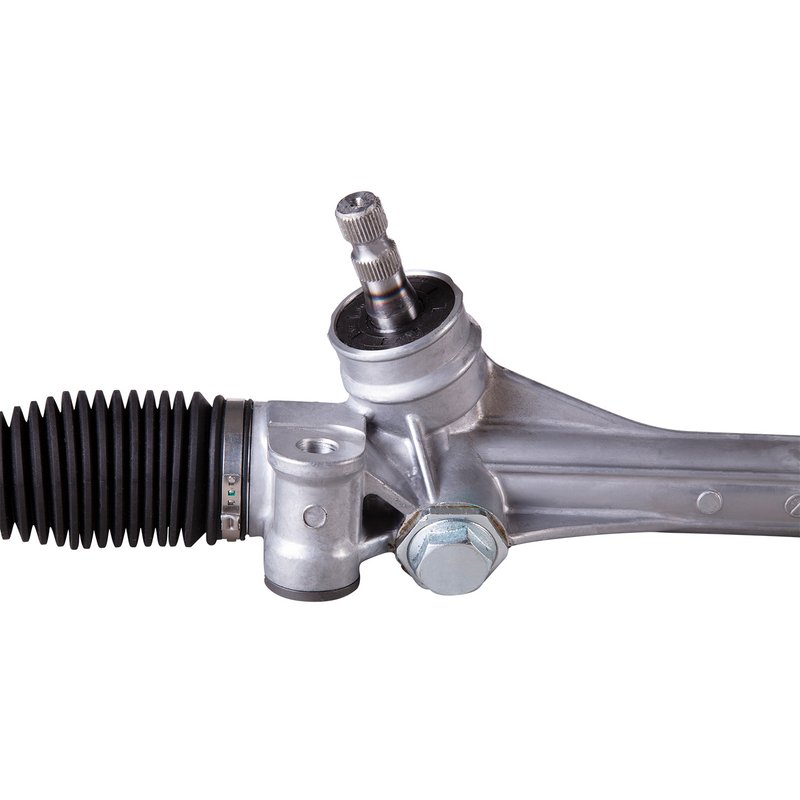

PWR 45-1252 Rack and Pinion Assembly

PWR 45-1252 Manual Rack and Pinion

PWR 45-1252 is a manual rack and pinion assembly for steering service on select Toyota RAV4 applications. It is built as a direct-fit replacement to simplify installation and is USA Engineering Approved, with each unit tested for leaks, pressure, noise, and function before release.

• Manual rack and pinion assembly
• Direct-fit design for easier installation
• USA Engineering Approved
• 100% tested for leaks, pressure, noise, and function
• Gasket or seal included
• Inner tie rods included
• 2 mounting holes
• 2.8 turns lock to lock

Fitment and Application

Compatible with 2006-2012 Toyota RAV4 steering systems, including 2009-2010 Toyota RAV4, USA Built. This part number, 45-1252, is also referenced for Toyota RAV4 steering repair searches where a manual rack and pinion assembly is needed.

This part cross-references Federal Parts (e.g., 4577) for the same application.

Detailed Description

This PWR rack and pinion assembly is specified for manual steering applications and uses a 36-spline input shaft with a 17.4 mm steering input shaft diameter. The assembly measures 1112.5 end to end and includes inner tie rods, while outer tie rods, mounting brackets, and mounting hardware are not listed as included. For buyers searching for a Toyota RAV4 rack and pinion replacement, PWR 45-1252 provides a direct-fit steering solution for the listed model years.

What It Helps Address

• Excessive steering play or looseness
• Uneven or delayed steering response
• Fluid leak concerns at the rack assembly seals
• Noise or rough operation in the steering gear
• Wear-related steering rack replacement on Toyota RAV4 models

Installation Notes and Tips

Verify manual steering configuration, spline count, shaft diameter, and mounting hole layout before installation. Transfer or replace related steering components as needed during service, and confirm alignment after the rack and pinion assembly is installed. Check the vehicle build details carefully for 2009-2010 Toyota RAV4 USA Built applications.

Quality Assurance

PWR states that this rack and pinion assembly is USA Engineering Approved and individually tested for leaks, pressure, noise, and function to support consistent steering performance.
