Part #: 61-5109

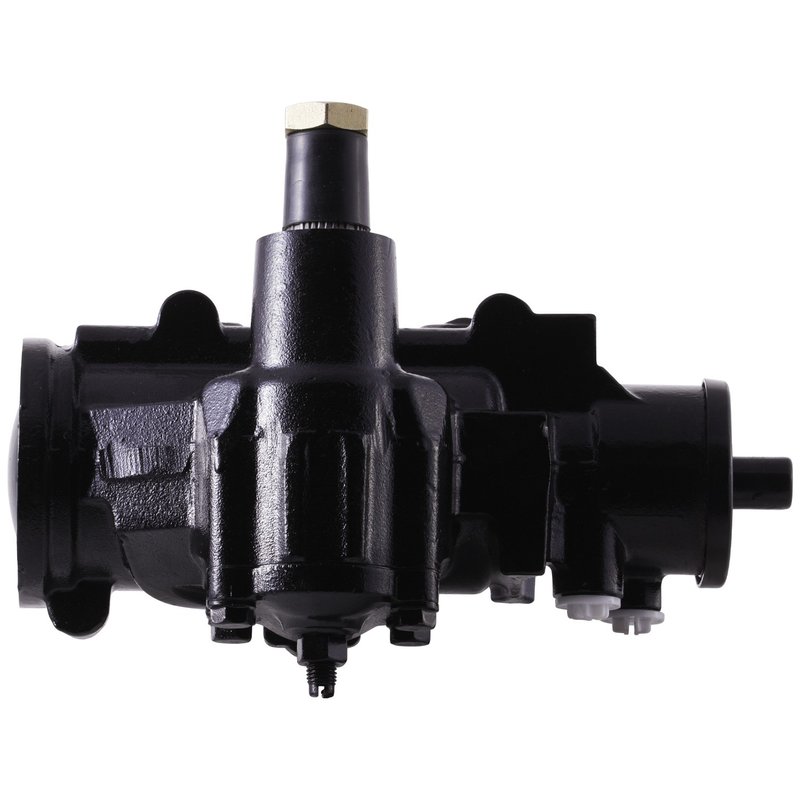

PWR 61-5109 Steering Gear

170 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$719.34Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet and GMC, Express 2500, Express 3500, Silverado 2500 HD, Silverado 3500, Savana 2500, Savana 3500, Sierra 2500 HD, Sierra 3500, Silverado 1500, Sierra 1500, Silverado 1500 HD, Silverado 2500, Suburban 1500, Tahoe, Sierra 1500 HD, Sierra 2500, Yukon, Yukon XL 1500, Suburban 2500, and Yukon XL 2500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST

Overview of PWR Steering Gear 61-5109

The PWR Steering Gear part number 61-5109 is designed for power-assisted steering systems in select Chevrolet and GMC trucks and SUVs. Engineered to meet the specifications of vehicles like the Silverado 1500 HD and Yukon XL 2500, this steering gear ensures precise control and reliable performance.

  • Output shaft spline quantity: 32 splines for secure fitment
  • Output shaft diameter: 31.7 mm for durability
  • Input shaft diameter: 16.8 mm for compatibility
  • Total turns lock to lock: 3.3 for responsive steering
  • Output shaft thread diameter: 0.875 inches
  • Power assisted steering gear for reduced driver effort
  • Port 1 thread diameter: 16 mm
  • Port 2 thread diameter: 18 mm

Technical Details and Specifications

This PWR steering gear 61-5109 features a 32-spline output shaft with a diameter of 31.7 mm, providing a robust connection to the steering linkage. The input shaft diameter measures 16.8 mm, designed to match the steering column interface precisely. With a total of 3.3 turns lock to lock, the steering gear offers a balance between maneuverability and control. The output shaft thread diameter of 0.875 inches and port thread diameters of 16 mm and 18 mm accommodate standard hydraulic connections for power-assisted steering systems.

Compatible Vehicles and Applications

This steering gear is compatible with a range of Chevrolet and GMC models, including:

  • Chevrolet Express 2500 and 3500
  • GMC Savana 2500 and 3500
  • Chevrolet Silverado 1500, 1500 HD, 2500, 2500 HD, and 3500
  • GMC Sierra 1500, 1500 HD, 2500, 2500 HD, and 3500
  • Chevrolet Suburban 1500 and 2500
  • Chevrolet Tahoe
  • GMC Yukon, Yukon XL 1500, and Yukon XL 2500

Common Issues Addressed by This Steering Gear

  • Excessive play or looseness in steering
  • Difficulty in steering due to worn or damaged gear components
  • Leaking power steering fluid from worn seals
  • Uneven or jerky steering response
  • Noise or grinding during steering operation

Installation Notes and Tips

When installing the PWR steering gear 61-5109, ensure all hydraulic connections match the specified port thread diameters of 16 mm and 18 mm. Verify spline count and shaft diameters for proper fitment with the vehicle’s steering linkage and column. It is recommended to perform a wheel alignment after installation to maintain optimal steering performance and tire wear.

Quality Assurance and Warranty

PWR steering gears are manufactured to meet OEM standards for durability and performance. This part undergoes rigorous testing to ensure reliable operation in power-assisted steering systems. Please refer to PWR’s warranty policy for specific coverage details related to part number 61-5109.

BrandPWR
Part Number61-5109
Input Shaft Diameter16.8
Output Shaft Diameter31.7
Output Shaft Spline Quantity32
Output Shaft Thread Diameter.875
Port 1 Thread Diameter16
Port 2 Thread Diameter18
Power AssistedYes
Total Turns Lock To Lock3.3
