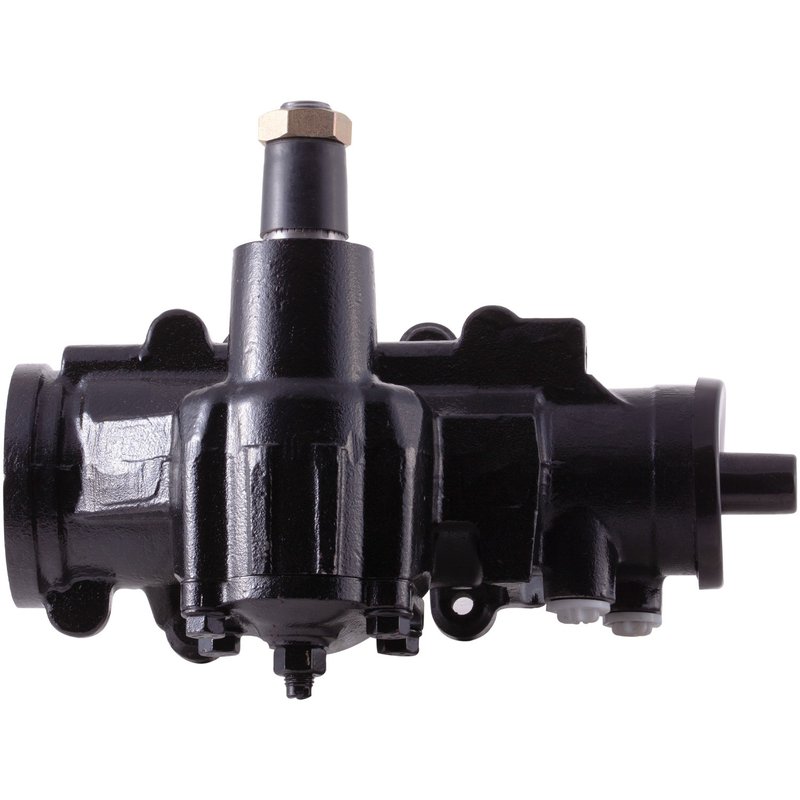

PWR 61-5246 Steering Gear

PWR Steering Gear for Jeep CJ5 and CJ7

The PWR 61-5246 steering gear is a direct-fit replacement for select Jeep CJ5 and Jeep CJ7 applications. It is built for power-assisted steering systems and engineered for straightforward installation on the listed vehicles.

• Direct-fit steering gear replacement
• Power assisted: Yes
• Output shaft spline quantity: 32
• Output shaft diameter: 31.7
• Input shaft diameter: 20.2
• Total turns lock to lock: 3.1
• Output shaft thread diameter: .875
• Port 1 thread diameter: .6875
• Port 2 thread diameter: .625

Detailed Product Overview

Built for 1972-1979 Jeep CJ5 and 1976-1979 Jeep CJ7 steering systems, this PWR steering gear is intended to restore steering response and maintain proper hydraulic assist in the original application. The 61-5246 uses the listed shaft and port dimensions to match the vehicle’s steering setup, making it a practical OE-style replacement for Jeep CJ5 steering gear and Jeep CJ7 steering gear service.

PWR states that its pumps, racks, and gears are fully tested for leaks, pressure, noise, and function, and that the units are USA engineering approved. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Steering Gear Helps Address

• Excessive steering play or loose steering feel
• Hydraulic steering assist loss from a worn gear assembly
• Steering noise caused by internal wear or leakage
• Hard steering response in a power-assisted Jeep CJ5 or CJ7
• Replacement needs after fluid seepage or pressure-related failure

Installation Notes and Tips

Verify the output shaft spline count, shaft diameters, and port thread sizes before installation. Confirm the vehicle is equipped with the listed power-assisted steering configuration and compare the original gear to the PWR 61-5246 before removal. After installation, bleed the steering system and check for leaks, proper assist, and centered steering wheel position.

Quality Assurance

PWR tests each steering gear for leaks, pressure, noise, and function before release. The manufacturer also identifies this unit as USA engineering approved for the listed application.
