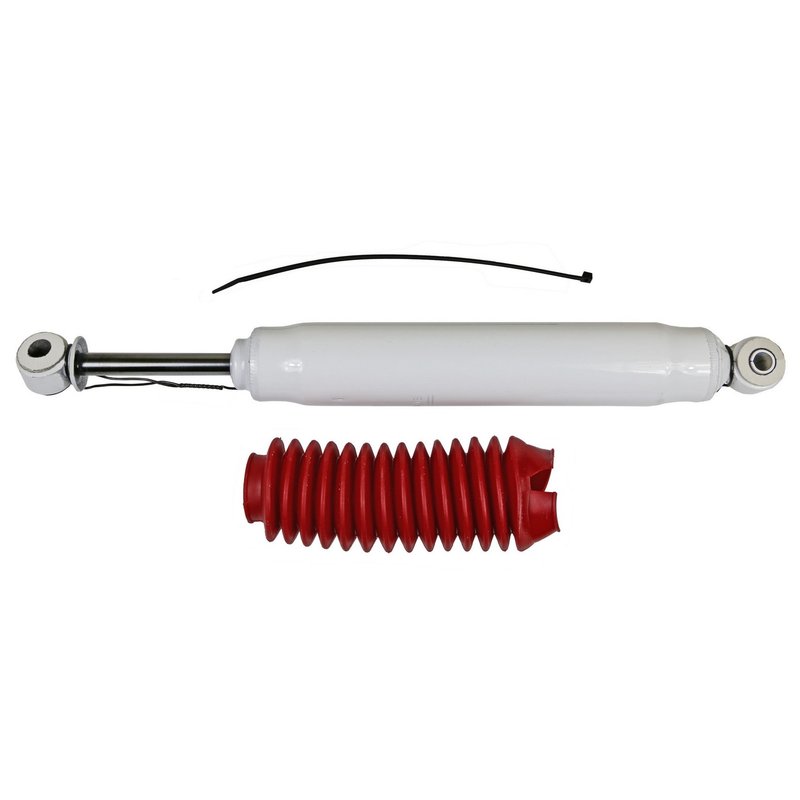

Rancho RS55007 Suspension Shock Absorber - Rear
| Brand | Rancho RS55007 |
|---|---|
| Position | Rear |
| 65126 | L1 |
| Compressed Bumper Stop | No |
| Compressed Length | 14.89 |
| Dust Shield Included | No |
| Extended Bumper Stop | Yes |
| Extended Hydraulic Lockout | No |
| Extended Length | 24.29 |
| Lower Mounting Code | Ls26 |
| Lower Mounting Description | Loop bushing & sleeve mount - 12mm sleeve id x 1.1/2" sleeve oal |
| Parts Pack | None |
| Reserve Tube Diameter | 2.251 |
| Travel Length | 9.41 |
| Upper Mounting Description | Loop bushing mount - 5/8" bushing id x 1.5/16" bushing oal |
| Product line | RS5000X |
| Fits | Ford · 8 vehicles |
RS5000X tuning. Exclusive valving and compression-focused response for controlled damping.
Direct-fit mounts. Loop bushing upper and lower mounting points for specified suspension applications.
Performance shock absorber. Built for improved on-road and off-road handling response.
Cross-references RS5007 for the same application. See all 1.
Overview
The Rancho RS5000X suspension shock absorber is built for drivers who want more controlled handling on and off the road. This RS55007 shock uses Rancho’s RS5000X valving and compression-focused design to improve ride response in demanding rear suspension applications.
Compatible With Ford F-Super Duty and Ford Ranger rear applications, this shock absorber is a fitment-specific replacement for select raised-height and zero-lift setups. The RS55007 part number is also referenced as RS5007 for the same application.
Key Features
- RS5000X valving system for more controlled damping response.
- Advanced compression functionality for improved handling performance.
- Extended length of 24.29 in. with 9.41 in. of travel.
- Loop bushing upper and lower mounts for direct suspension replacement.
- Extended bumper stop included in the shock design.
Detailed Description
The Rancho RS55007 is a rear suspension shock absorber engineered for specific Ford truck fitments, including 1993-1997 Ford F-Super Duty and 1993-1995 Ford Ranger rear applications. It is built around Rancho’s RS5000X product line, which uses a unique valving system and compression-oriented tuning to improve overall on-road and off-road control. Mounting details include a loop bushing upper mount and a loop bushing and sleeve lower mount, with dimensions that support the listed applications. If you are replacing a worn rear shock on a Ford F-Super Duty or Ford Ranger, the RS55007 provides a direct-fit suspension service part for the specified configurations.
This part cross-references Monroe Shocks & Struts (e.g., RS5007) for the same application.
What It Helps Address
- Excessive rear suspension bounce after bumps.
- Reduced damping control from a worn shock absorber.
- Unstable ride response on uneven pavement or light off-road surfaces.
- Loss of handling consistency in raised-height rear suspension setups.
Installation Notes and Quality
Verify rear fitment, mounting style, and suspension height before installation. Confirm compressed and extended length against the vehicle’s suspension travel requirements, especially on raised-height applications. The RS5000X line is positioned by Rancho as a performance-oriented shock absorber series with tuning aimed at improved handling response.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Ford | F-Super Duty | — | Rear | Rear Shock Absorber for 0 inch raised height.; RS5000X |
| 1996 | Ford | F-Super Duty | — | Rear | Rear Shock Absorber for 0 inch raised height.; RS5000X |
| 1995 | Ford | F-Super Duty | — | Rear | Rear Shock Absorber for 0 inch raised height.; RS5000X |
| 1995 | Ford | Ranger | RWD | Rear | with Rear Raised Height 2.5 (in); RS5000X |
| 1994 | Ford | F-Super Duty | — | Rear | Rear Shock Absorber for 0 inch raised height.; RS5000X |
| 1994 | Ford | Ranger | RWD | Rear | with Rear Raised Height 2.5 (in); RS5000X |
| 1993 | Ford | F-Super Duty | — | Rear | From 02/93; with Rear Raised Height 0 (in); RS5000X |
| 1993 | Ford | Ranger | RWD | Rear | with Rear Raised Height 2.5 (in); RS5000X |
| No rows match your filter. | |||||
