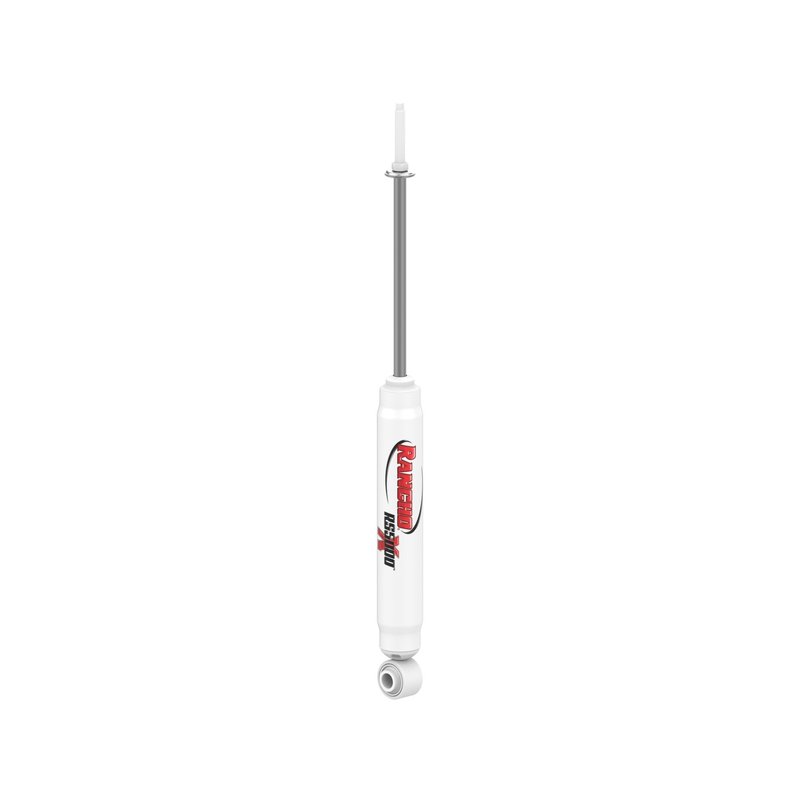

Rancho RS55074 Suspension Shock Absorber - Rear
| Brand | Rancho RS55074 |
|---|---|
| Position | Rear |
| 10527 | No |
| 10528 | No |
| 10529 | No |
| 10530 | Passive |
| 10531 | Painted |
| Compressed Length | 15.78 |
| Compressed Length | 400.7 |
| Travel Length | 10.28 |
| Travel Length | 261.1 |
| Rod Diameter | 0.62 |
| Rod Diameter | 15.8 |
| Body Color | White |
| Color | White |
| Finish | Painted |
| Cylinder Material | Steel |
| Type | Telescopic |
| Mounting Hardware Included | Yes |
| Cylinder Outside Diameter | 2.25 |
| Cylinder Outside Diameter | 57.2 |
| Internal Construction Type | Twin tube |
| Grade Type | Performance |
| Extended Length | 26.06 |
| Extended Length | 661.8 |
| Shock Stroke | 10.28 |
| Shock Stroke | 261.1 |
| Shock Absorber Rod End Measuring Point | Base of stem |
| Shock Absorber Body End Measuring Point | Center of loop |
| Lower Mount Type | Loop (eyelet) bushing and sleeve |
| Upper Mount Type | Stem |
| Boot Included | Yes |
| Product line | RS5000X |
| Fits | Nissan and Toyota · 8 vehicles |
RS5000X tuning. Exclusive valving and compression control for more consistent shock response.
Twin-tube design. Gas-charged construction with a steel body and painted finish.
Protective coverage. Boot and dust shield included for added rod-area protection.
Cross-references Rancho RS55036A and 23190A for the same application. See all 2.
RS5000X Rear Shock Absorber
The Rancho RS55074 is a rear suspension shock absorber from the RS5000X line, built for drivers who want controlled damping and consistent handling on and off pavement. It uses a twin-tube, gas-charged design with a painted steel body and white finish.
Compatible With 2023-2026 Nissan Frontier rear and 2022-2025 Toyota Tundra rear, this shock is a fitment-based replacement for applications that call for a stem upper mount and loop-style lower mount. The RS55074 part number is also useful when cross-checking suspension service parts for these trucks.
Key Features
- RS5000X valving and advanced compression control for more stable damping response.
- Twin-tube, gas-charged construction for performance-oriented suspension service.
- Steel body and painted finish for durable underbody use.
- Boot and dust shield included to help protect the rod area from road debris.
- Stem upper mount and loop lower mount for direct replacement applications.
Detailed Description
Rancho RS55074 is a telescopic suspension shock absorber engineered for rear applications on the Nissan Frontier and Toyota Tundra. The RS5000X product line uses a unique valving system and compression-focused tuning to improve overall handling response, making it a practical choice for trucks that see mixed street and off-road use. The RS55074 part number identifies this RS5000X shock absorber for the listed fitments.
Construction details include a 2.25-inch steel body, gas-charged twin-tube internal design, and a painted white finish. The shock uses a stem upper mount and a loop-style lower mount with bushing and sleeve, and it includes a rubber dust shield and boot. Rancho RS55074 is a direct-fit suspension service part for the specified rear positions on these vehicles.
What It Is Used For
- Restoring rear damping control when the original shock is worn.
- Reducing excessive bounce after bumps or load changes.
- Improving stability during highway driving and uneven-road use.
- Addressing noise or harshness caused by tired suspension damping.
Installation Notes and Tips
Verify the rear mount style before installation: stem upper mount and loop lower mount with bushing and sleeve. Confirm compressed length, extended length, and shock stroke against the existing part before service. The RS55074 includes mounting hardware, boot, and dust shield as listed in the product data.
Quality Assurance
Rancho RS5000X shocks are built around an exclusive valving system and advanced compression functionality for controlled performance. The RS55074 part number is a fitment-specific replacement for the listed Nissan Frontier and Toyota Tundra rear applications.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2026 | Nissan | Frontier | — | RWD | Rear | RS5000X |
| 2025 | Nissan | Frontier | — | RWD | Rear | RS5000X |
| 2025 | Toyota | Tundra | Limited | — | Rear | RS5000X |
| 2024 | Nissan | Frontier | — | RWD | Rear | RS5000X |
| 2024 | Toyota | Tundra | Limited | — | Rear | RS5000X |
| 2023 | Nissan | Frontier | — | RWD | Rear | RS5000X |
| 2023 | Toyota | Tundra | Limited | — | Rear | RS5000X |
| 2022 | Toyota | Tundra | Limited | — | Rear | RS5000X |
