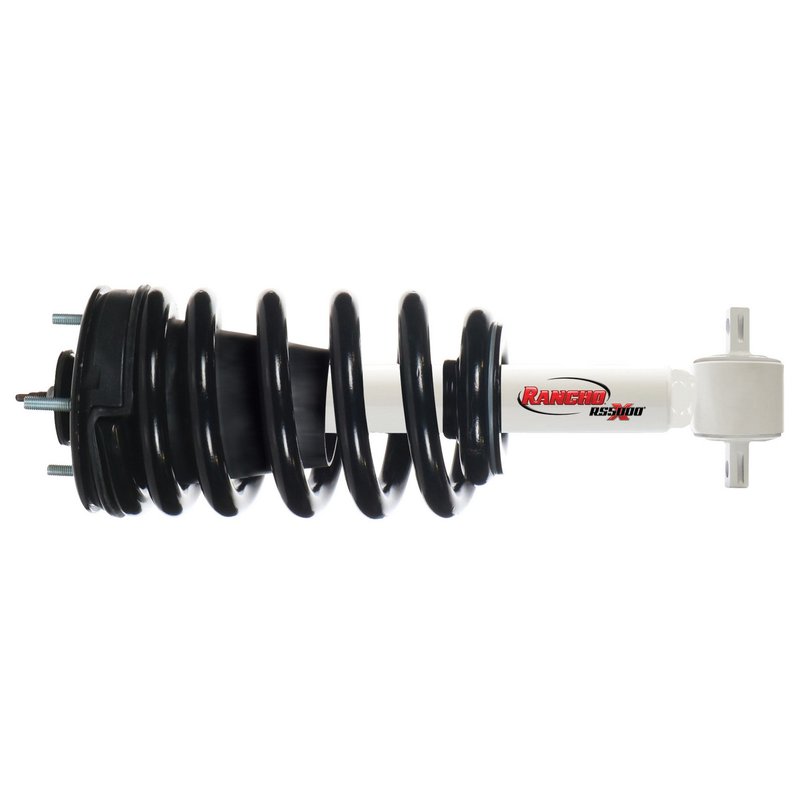

Rancho RS551836R Suspension Strut and Coil Spring Assembly - Front Right
| Brand | Rancho RS551836R |
|---|---|
| Position | Front Right |
| Compressed Length | 17.17 |
| Compressed Length | 436.1 |
| Travel Length | 113.5 |
| Travel Length | 4.47 |
| Mounting Hardware Included | Yes |
| Grade Type | Performance |
| Extended Length | 21.64 |
| Extended Length | 549.7 |
| Gas Charged | Yes |
| Body Diameter | 2.13 |
| Body Diameter | 54.1 |
| Body Length | 17.03 |
| Body Length | 432.6 |
| Adjustable Damping | No |
| Dust Shield Included | No |
| 9783 | Yes |
| Body Type | Ss7 |
| Internal Rebound Bumper | Yes |
| Lower Mount Type | Cross pin |
| Parts Pack(s) | P01141, p01726 |
| Upper Mount Type | Stud plate |
| Upper Mount Type | Stud plate mount |
| Fits | Ford · 6 vehicles |
Loaded assembly. Combines the strut and related components into one service unit.
Cross Tuned technology. Balances on-road control with off-road handling response.
Gas charged design. Delivers consistent damping response for performance-grade service.
Cross-references Monroe Shocks & Struts 173032 and Monroe Shocks & Struts 173032R for the same application. See all 2.
Overview
The Rancho RS5000X loaded strut assembly is built for late-model truck suspension service where restoring ride height and improving handling matter. Fits 2015-2020 Ford F-150, front right, and uses Rancho Cross Tuned technology to balance on-road control with off-road performance.
Key Features
- Loaded strut assembly for a complete suspension service solution
- Restores factory ride height on compatible applications
- Cross Tuned technology for improved handling on pavement and dirt
- Gas charged construction for consistent damping response
- Performance-grade design with internal rebound bumper
- Includes mounting hardware for installation
Product Details
Part number RS551836R is a Rancho RS5000X suspension strut and coil spring assembly engineered for the Ford F-150 platform. The assembly combines the strut and related components into one unit, which reduces the number of separate parts needed during service and supports a more straightforward replacement process. Rancho states that this unit is ride tested and built to strict durability requirements for truck and SUV use. This part cross-references Monroe Shocks & Struts (e.g., 173032, 173032R) for the same application.
Common Repair Uses
- Corrects a sagging or uneven front suspension stance
- Replaces a worn strut assembly with reduced damping control
- Addresses excessive bounce, nose dive, or poor body control
- Helps restore stable steering feel during daily driving
- Supports improved control on mixed road and off-road surfaces
Installation Notes
Fits 2015-2020 Ford F-150, front right. Verify the mounting style before installation: upper stud plate mount and lower cross pin configuration. The assembly is gas charged and includes an internal rebound bumper, so final ride height and suspension response should be checked after installation. Part number RS551836R should be matched to the vehicle’s exact fitment before service.
Quality Assurance
Rancho builds this RS5000X assembly to strict durability requirements and tests it for on- and off-road use. Part number RS551836R is engineered as a performance-grade replacement for the specified Ford F-150 application.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Ford | F-150 | Platinum | 4WD | Front Right | — |
| 2019 | Ford | F-150 | Platinum | 4WD | Front Right | — |
| 2018 | Ford | F-150 | Platinum | 4WD | Front Right | — |
| 2017 | Ford | F-150 | Platinum | 4WD | Front Right | — |
| 2016 | Ford | F-150 | Platinum | 4WD | Front Right | — |
| 2015 | Ford | F-150 | Platinum | 4WD | Front Right | — |
