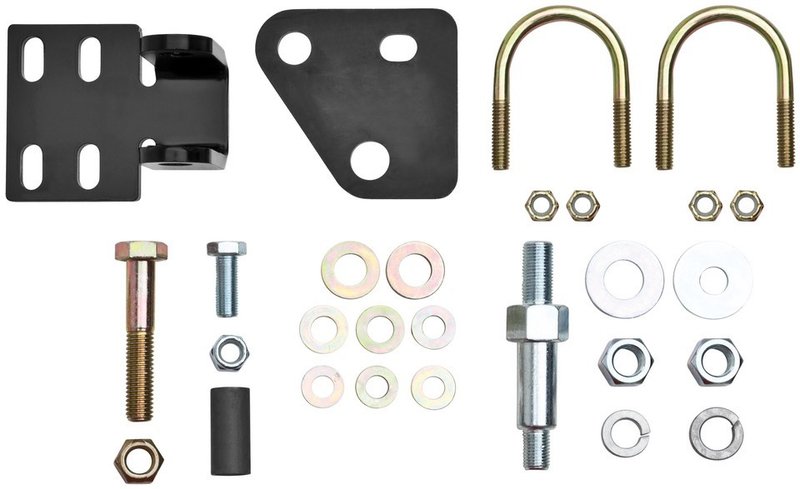

Rancho RS64100 Steering Damper Bracket - Front
Rancho RS64100 Steering Damper Bracket
The Rancho RS64100 steering damper bracket is a high-clearance mounting solution for Jeep Wrangler JK steering setups. It relocates the steering stabilizer above the factory tie rod to keep it out of harm’s way while supporting more controlled steering feel on lifted vehicles.
Compatible With Jeep Wrangler JK front applications, this performance-grade bracket is built for drivers who need added clearance and a cleaner stabilizer location on the front end.
Key Features
- Performance-grade steering damper bracket for front suspension use
- High-clearance design mounts the stabilizer above the factory tie rod
- Helps reduce bump steer and steering vibration
- Compatible With 2007-2018 Jeep Wrangler JK front applications
- Requires a single steering damper setup and at least 2-inch front bump stop spacers
- Requires at least a 2-inch suspension lift for use
- Stabilizer protective boots cannot be used with this bracket
- Must be used with Rancho steering damper RS5401
Detailed Description
Rancho RS64100 is a steering damper bracket kit engineered for Jeep Wrangler JK front-end steering systems. By moving the stabilizer above the factory tie rod, the bracket creates additional clearance for off-road use and helps keep the damper positioned away from trail hazards. For lifted Jeep Wrangler JK and Jeep Wrangler front applications, this setup supports more stable steering response and reduced vibration under changing road and trail conditions. The RS64100 part number is commonly searched by owners looking for a high-clearance steering damper bracket for Jeep Wrangler JK front suspension upgrades.
This part cross-references Rancho steering damper RS5401 for the same application.
What It Helps Address
- Steering vibration on lifted Jeep Wrangler JK front suspensions
- Bump steer caused by altered suspension geometry
- Exposure of the steering stabilizer to trail impacts
- Limited clearance around the factory tie rod area
- Need for a high-clearance steering damper bracket on Jeep Wrangler JK builds
Installation Notes and Tips
- Fits 2007-2018 Jeep Wrangler JK, front
- Requires at least a 2-inch suspension lift
- Requires at least 2-inch tall front bump stop spacers
- Use with Rancho steering damper RS5401
- Stabilizer protective boots cannot be used with this bracket
- If using RS62101 track bar relocation bracket, Rancho recommends using RS64100 together
Quality Assurance
Rancho RS64100 is a performance steering bracket designed for Jeep Wrangler JK front applications and built to support a high-clearance stabilizer mounting position. The RS64100 part number is a direct reference for buyers comparing steering damper bracket options for Jeep Wrangler JK and Jeep Wrangler front suspension setups.
This part fits 12 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Jeep | Wrangler JK | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. | |
| 2017 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2016 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2015 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2014 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2013 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2012 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2011 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2010 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2009 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2008 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
| 2007 | Jeep | Wrangler | 4WD | Front | Single Steering Damper; For High Clearance; Stabilizer protective boots cannot be used; Requires at least 2 (in) tall front bump stop spacers; Requires at least a 2 (in) suspension lift to use.; Must Use with Steering Damper(s) RS5401; If using RS62101 track bar relocation bracket, it is recommended RS64100 be used in conjunction. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
