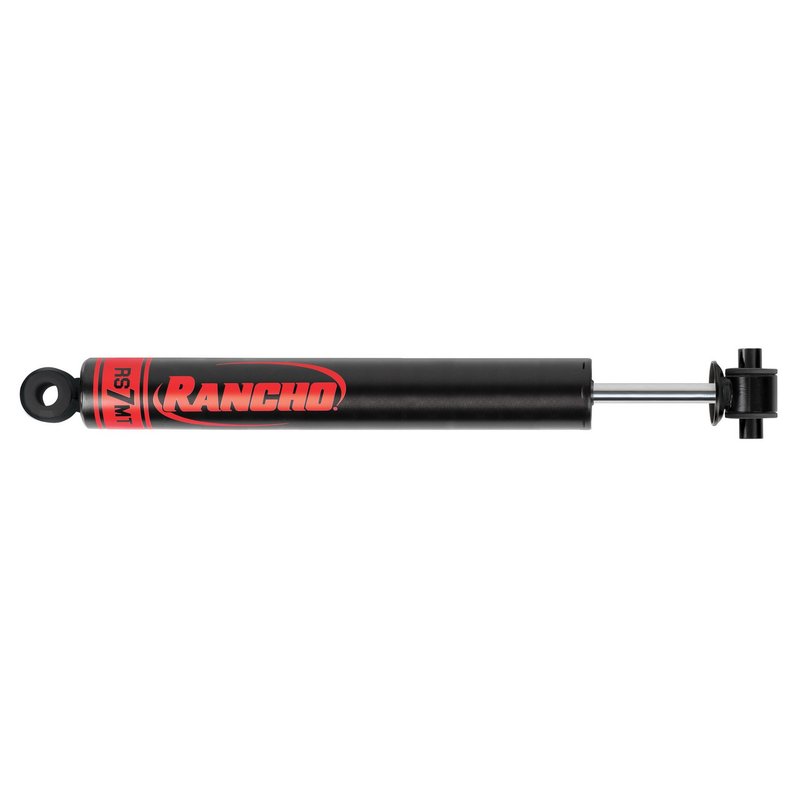

Rancho RS77063 Suspension Shock Absorber - Front

Overview

The Rancho RS7MT RS77063 is a monotube suspension shock absorber built for precise on-road control and off-road performance. It is engineered for Jeep applications that need stable damping, heat management, and consistent response on rough terrain.

Compatible With Jeep Gladiator and Jeep Wrangler front suspension applications, this RS7MT shock uses a monotube design with an integrated dirt wiper sealing system, a hardened piston rod, and an internal rebound bumper. The RS77063 part number is also referenced by cross numbers 24286350 and 33304847 for the same application.

Key Features

• Monotube shock construction for efficient heat dissipation during demanding use.
• Integrated dirt wiper sealing system helps keep debris out of the shock body.
• Hardened piston rod resists scuffs and corrosion.
• Internal rebound bumper smooths suspension movement over uneven surfaces.
• Loop bushing and sleeve mounts at both ends for a direct-fit suspension setup.
• Extended bumper stop included in the design.

Product Details

The Rancho RS7MT line is tuned for drivers who want controlled handling on pavement and dependable damping off-road. On Jeep Gladiator and Jeep Wrangler front suspension applications, the RS77063 supports vehicles running 0-inch lift configurations as listed in fitment, while also serving broader front applications in the same model range. The RS77063 part number appears again here for easy identification when matching suspension components.

Its 2-inch reserve tube diameter and 7.44-inch travel length support consistent shock performance, while the loop bushing and sleeve mounting style simplifies fitment on the specified Jeep platforms. The RS7MT product line focuses on heat control, contamination resistance, and ride smoothing for mixed-use driving.

Common Issues Addressed

• Excessive bounce or poor damping response.
• Heat buildup during sustained off-road driving.
• Contamination from dirt and debris entering the shock assembly.
• Scuffed or corroded piston rod surfaces.
• Harsh rebound over uneven road or trail conditions.

Installation Notes

Fits 2022-2025 Jeep Gladiator, front. Fits 2022-2025 Jeep Wrangler, front. Fits 2020-2021 Jeep Gladiator, front, front suspension strut for vehicles with 0" lift, suitable for installation. Fits 2018-2021 Jeep Wrangler, front, front suspension strut for vehicles with 0" lift, suitable for installation.

Verify mount style, lift height, and suspension configuration before installation. Confirm the RS77063 part number against the vehicle application and compare the existing shock dimensions and mounting codes to the listed specifications.

Quality Assurance

Rancho RS7MT shocks are built around a monotube design and application-tuned damping for controlled performance in demanding driving conditions. The RS77063 combines contamination resistance, rod protection, and rebound control in a suspension shock absorber intended for the listed Jeep fitments.
