OE Quality
60-Day Returns
RanchoPart #: RS77330

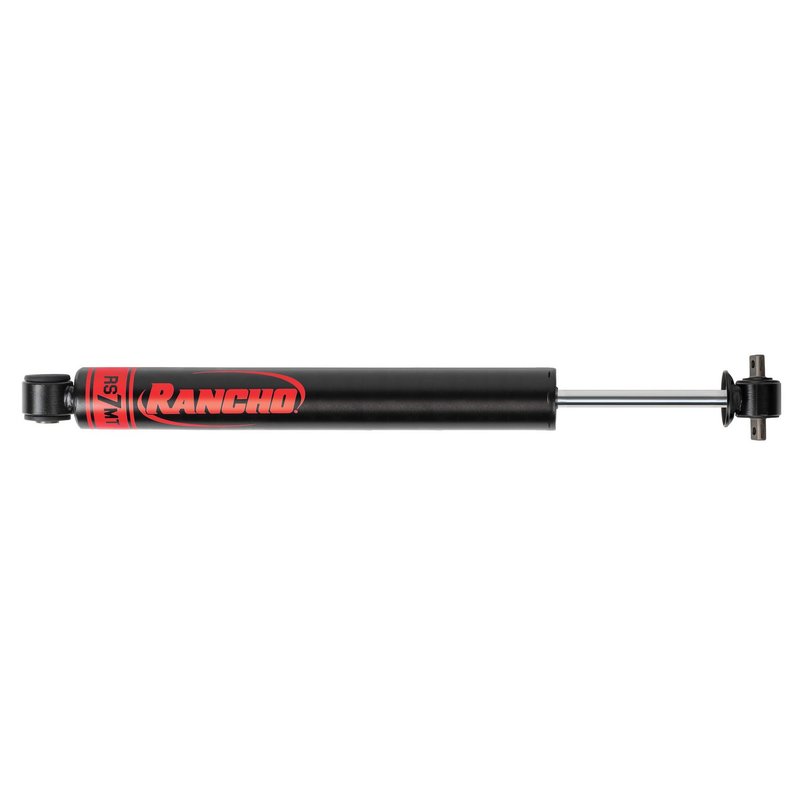

Rancho RS77330 Suspension Shock Absorber - Rear
12 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$103.55Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
RS7MT, Rear
Fitment: Jeep, Wrangler and Wrangler JK
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Suspension Shock Absorber options
Rancho RS77330 Suspension Shock Absorber - Rear
| Brand | Rancho |
|---|---|
| Part Number | RS77330 |
| Position | RS7MT, Rear |
| 10526 | Progressive |
| 10527 | No |
| 10528 | No |
| 10529 | No |
| 10530 | Passive |
| 10531 | Painted |
| Compressed Length | 17.52 |
| Compressed Length | 445 |
| Travel Length | 241.3 |
| Travel Length | 9.5 |
| Rod Diameter | 14 |
| Body Color | Black |
| Color | Black |
| Finish | Painted |
| Cylinder Material | Steel |
| Type | Telescopic |
| Mounting Hardware Included | No |
| Cylinder Outside Diameter | 1.97 |
| Cylinder Outside Diameter | 50 |
| Internal Construction Type | Single tube |
| Grade Type | Performance |
| Extended Length | 27.04 |
| Extended Length | 686.8 |
| Shock Stroke | 241.3 |
| Shock Stroke | 9.5 |
| Shock Absorber Rod End Measuring Point | Center of loop |
| Shock Absorber Body End Measuring Point | Center of cross pin |
| Lower Mount Type | Loop (eyelet) bushing and sleeve |
| Upper Mount Type | Cross pin |
| Boot Included | No |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Jeep | Wrangler JK | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2017 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2016 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2015 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2014 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2013 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2012 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2011 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2010 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2009 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2008 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
| 2007 | Jeep | Wrangler | Rear | with Rear Raised Height 2.5 (in) to 3.5 (in); Use with Rancho RS66102B, RS66110B, RS66114B, RS66115B System(s); RS7MT |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
98024888
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
