Home› Suspension > Shocks and Struts› Rancho RS999935 Suspension Strut and Coil Spring Assembly - Front Left
Rancho RS999935 Suspension Strut and Coil Spring Assembly - Front LeftOE Quality 60-Day Returns
Part #: RS999935

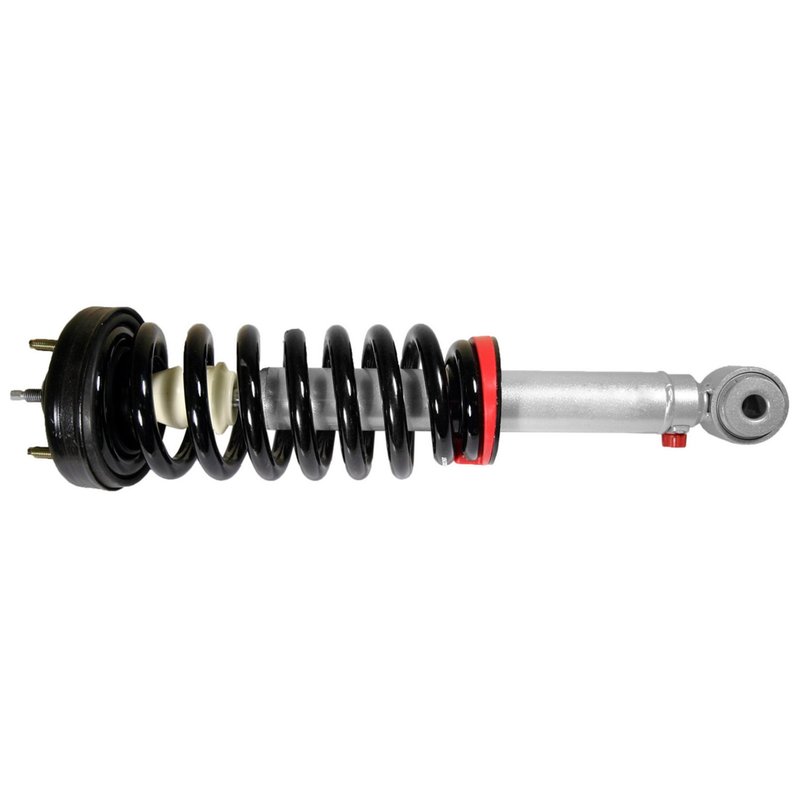

Rancho RS999935 Suspension Strut and Coil Spring Assembly - Front Left

Front Left
37 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$244.99Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Ford, F-150
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Suspension Strut and Coil Spring Assembly options

Rancho Suspension Strut and Coil Spring Assembly Overview

The Rancho RS999935 suspension strut and coil spring assembly is designed specifically for Ford F-150 models, providing reliable suspension performance. Engineered to meet OEM specifications, this assembly ensures proper fitment and function for your vehicle's front suspension system.

  • Compressed length: 17.13 inches
  • Travel length: 4.47 inches
  • Body length: 16.63 inches
  • Extended length: 21.6 inches
  • Body type: SS2
  • Reserve tube diameter: 2.13 inches
  • Upper and lower mounting: Loop bushing mount with 5/8" bushing ID and 1.5/16" bushing OAL
  • Parts pack included: P01141
  • No dust shield or bumper stops included

Technical Details and Specifications

This Rancho suspension strut and coil spring assembly (part number RS999935) features a robust SS2 body type designed for durability and consistent damping performance. The assembly’s compressed length of 17.13 inches and extended length of 21.6 inches provide the necessary travel length of 4.47 inches to accommodate typical suspension movement on Ford F-150 trucks. The 2.13-inch reserve tube diameter supports fluid capacity for effective shock absorption. Both upper and lower mounts utilize loop bushing mounts with precise 5/8" inner diameter and 1.5/16" overall length bushings, ensuring secure and vibration-resistant installation.

Compatible Vehicles and Applications

This suspension strut and coil spring assembly is compatible with Ford F-150 models, designed to replace worn or damaged front suspension components. It is suitable for restoring factory ride height and handling characteristics, making it an appropriate choice for maintenance or repair of the front suspension system.

  • Restores proper suspension travel and damping
  • Addresses worn or leaking struts
  • Corrects sagging or uneven ride height
  • Improves vehicle stability and control
  • Replaces damaged or corroded coil springs

Installation Notes and Tips

Installation of the Rancho RS999935 suspension strut and coil spring assembly requires standard suspension tools and safety precautions. Ensure the vehicle is securely lifted and supported before removal of the old assembly. Verify that the loop bushing mounts align correctly with the vehicle’s mounting points. Since this assembly does not include dust shields or bumper stops, inspect existing components for wear and replace as necessary. Proper torque specifications should be followed during installation to maintain suspension integrity.

Quality Assurance and Warranty

Rancho suspension components are manufactured to meet or exceed OEM standards for durability and performance. The RS999935 assembly undergoes rigorous quality control to ensure consistent operation under normal driving conditions. Please refer to Rancho’s official warranty documentation for specific coverage details related to this suspension strut and coil spring assembly.

BrandRancho
Part NumberRS999935
Body Length16.63
Body TypeSS2
Compressed Bumper StopNo
Compressed Length17.13
Dust Shield IncludedNo
Extended Bumper StopNo
Extended Hydraulic LockoutNo
Extended Length21.6
Lower Mounting DescriptionLoop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Parts PackP01141
Reserve Tube Diameter2.13
Travel Length4.47
Upper Mounting DescriptionLoop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

This part fits 37 vehicles. Search below:

YearMakeModelSubmodelDrive TypePositionNotes
2013FordF-150STX4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2013FordF-150XLT4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2013FordF-150Limited4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2013FordF-150Platinum4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2013FordF-150Lariat4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2013FordF-150King Ranch4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2013FordF-150XL4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2013FordF-150FX44WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2012FordF-150STX4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2012FordF-150XLT4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2012FordF-150Platinum4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2012FordF-150Lariat4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2012FordF-150King Ranch4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2012FordF-150XL4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2012FordF-150FX44WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2011FordF-150STX4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2011FordF-150XLT4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2011FordF-150Platinum4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2011FordF-150Lariat4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2011FordF-150King Ranch4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2011FordF-150Lariat Limited4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2011FordF-150XL4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2011FordF-150FX44WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2010FordF-150STX4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2010FordF-150XLT4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2010FordF-150Platinum4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2010FordF-150Lariat4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2010FordF-150King Ranch4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2010FordF-150XL4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2010FordF-150FX44WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2009FordF-150STX4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2009FordF-150XLT4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2009FordF-150Platinum4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2009FordF-150Lariat4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2009FordF-150King Ranch4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2009FordF-150XL4WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)
2009FordF-150FX44WDFront Leftwithout 8,200 (lb) Gross Vehicle Weight (GVW); Raises Front 2.0 (in)

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
