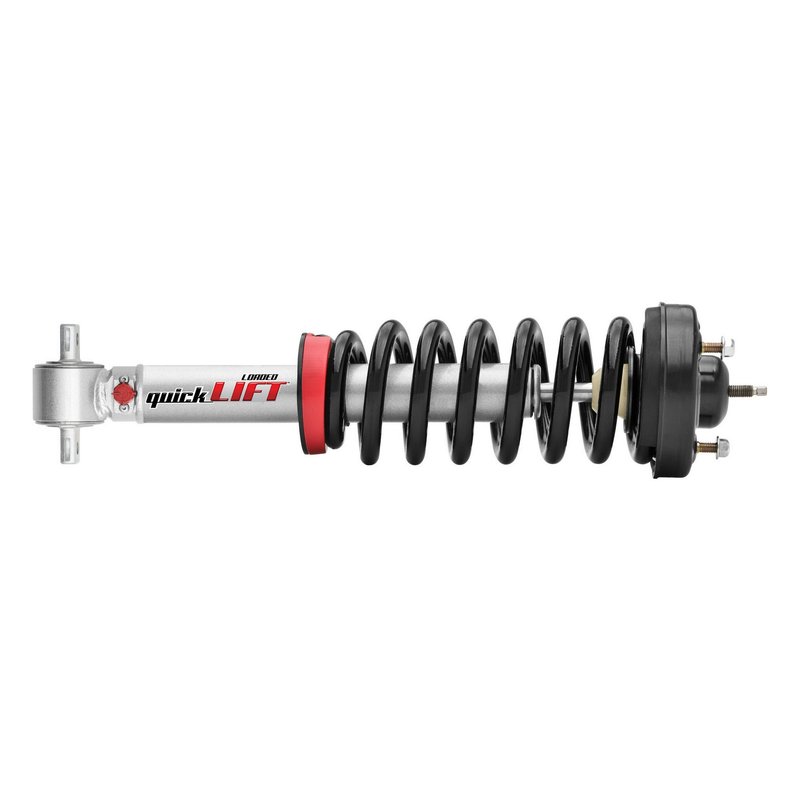

Rancho RS999947 Suspension Strut and Coil Spring Assembly - Front Right
| Brand | Rancho RS999947 |
|---|---|
| Position | Front Right |
| Body Length | 17.728 |
| Body Type | SS7 |
| Compressed Bumper Stop | No |
| Compressed Length | 15.98 |
| Dust Shield Included | No |
| Extended Bumper Stop | Yes |
| Extended Hydraulic Lockout | No |
| Extended Length | 21.1 |
| Lower Mounting Description | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack | P01141, P01726 |
| Reserve Tube Diameter | 2.129 |
| Travel Length | 5.12 |
| Upper Mounting Description | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Fits | Ford · 25 vehicles |
Complete assembly. Simplifies installation with an all-in-one strut and coil spring setup.
QuickLIFT design. Levels the suspension and adds lift for larger wheels and tires.
Loop bushing mounts. Upper and lower mounting points use a loop bushing design.
Rancho QuickLIFT Front Right Strut Assembly
The Rancho RS999947 is a loaded suspension strut and coil spring assembly for the front right side of select Ford F-150 trucks. It combines the strut and spring into one unit to simplify front suspension service while adding the lift needed for larger wheels and tires.
- Loaded strut and coil spring assembly for the front right position
- Levels the front suspension on select Ford F-150 applications
- Provides 2.25 in. of front lift on 2014-2019 Ford F-150 models
- Extended length: 21.1 in.; compressed length: 15.98 in.
- Travel length: 5.12 in. with a 2.129 in. reserve tube diameter
- Upper and lower loop bushing mounts with 5/8 in. bushing ID and 1.5/16 in. bushing OAL
- Extended bumper stop included
Fitment Details
Compatible with 2020 Ford F-150, front right. Fits 2014-2019 Ford F-150, front right, and raises the front 2.25 in. Rancho RS999947 is built for buyers searching for a front right strut assembly for Ford F-150 trucks that need added stance and suspension leveling.
How It Works
This quickLIFT loaded assembly is an all-in-one front suspension solution that replaces the strut and coil spring together. By using a preassembled design, RS999947 helps reduce the number of separate components involved in the repair and delivers a direct fit for the listed Ford F-150 applications. The body uses an SS7 design, and the assembly includes an extended bumper stop for suspension control at full extension.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems It Can Address
- Front-end rake on lifted or leveled Ford F-150 trucks
- Worn or noisy front strut and spring assemblies
- Reduced clearance for larger wheels and tires
- Uneven ride height at the front right corner
- Time-consuming suspension service from separate spring and strut replacement
Installation Notes
Install on the front right position only for the listed Ford F-150 model years. Verify vehicle year and suspension configuration before installation, and inspect surrounding suspension components, mounts, and fasteners during service. Because this is a loaded assembly, it is suited to replacement work where a complete strut-and-spring unit is preferred over rebuilding individual parts.
Quality Assurance
Rancho suspension components are engineered for truck and SUV applications that require controlled ride height and dependable front-end support. RS999947 is part of the Rancho quickLIFT line, which focuses on complete loaded assemblies for leveling and lift applications.
| Year | Make | Model | Body Type | Drive Type | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Ford | F-150 | Extended Cab Pickup | RWD | GAS | Front Right | — |
| 2019 | Ford | F-150 | Extended Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2019 | Ford | F-150 | Crew Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2019 | Ford | F-150 | Extended Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2019 | Ford | F-150 | Crew Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2018 | Ford | F-150 | Extended Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2018 | Ford | F-150 | Crew Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2018 | Ford | F-150 | Extended Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2018 | Ford | F-150 | Crew Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2017 | Ford | F-150 | Extended Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2017 | Ford | F-150 | Crew Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2017 | Ford | F-150 | Extended Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2017 | Ford | F-150 | Crew Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2016 | Ford | F-150 | Extended Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2016 | Ford | F-150 | Crew Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2016 | Ford | F-150 | Extended Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2016 | Ford | F-150 | Crew Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2015 | Ford | F-150 | Extended Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2015 | Ford | F-150 | Crew Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2015 | Ford | F-150 | Extended Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2015 | Ford | F-150 | Crew Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2014 | Ford | F-150 | Extended Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2014 | Ford | F-150 | Crew Cab Pickup | RWD | GAS | Front Right | Raises Front 2.25 (in) |
| 2014 | Ford | F-150 | Extended Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
| 2014 | Ford | F-150 | Crew Cab Pickup | RWD | FLEX | Front Right | Raises Front 2.25 (in) |
