Home› Raybestos 2307R Brake Drum - Front or Rear
Raybestos 2307R Brake Drum - Front or RearOE Quality 60-Day Returns
Part #: 2307R

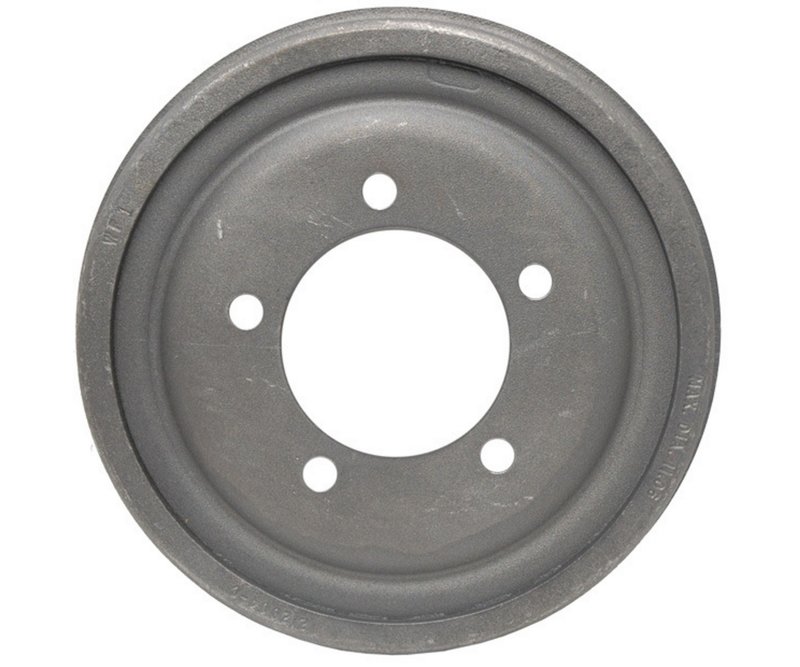

Raybestos 2307R Brake Drum - Front or Rear

R-Line, Front
33 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$70.98Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
Out of Stock
OE Direct Replacement — Bolt-on fit, no modifications needed
R-Line, Front
Fitment: AM General and Jeep, DJ5, CJ5, CJ6, Commando, J-100, J-2500, J-2600, J-4500, J-4600, J-4700, J-4800, Wagoneer, J-3800, Jeepster, J-2700, J-3700, Universal Truck, CJ5A, DJ6, Universal, CJ6A, Dispatcher, and DJ3
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Brake Drum options

Overview of Raybestos R-Line 2307R Brake Drum

The Raybestos R-Line 2307R brake drum is engineered for reliable braking performance on Jeep CJ5 and Wagoneer models. Designed to meet precise specifications, this brake drum ensures compatibility and durability for your vehicle's braking system.

  • Outside Diameter: 12.400 inches
  • Depth: 2.350 inches
  • Nominal Drum Diameter: 11.050 inches
  • Stud/Lug Hole Quantity: 5
  • Stud/Lug Hole Diameter: 0.632 inches
  • Compatible with Jeep CJ5 and Wagoneer

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable brake components that meet or exceed OEM standards. This product line emphasizes precise fitment and consistent performance, making the 2307R brake drum a suitable replacement part for Jeep CJ5 and Wagoneer vehicles requiring exact specifications in brake drum dimensions and mounting.

Detailed Product Description

The Raybestos R-Line 2307R brake drum features an outside diameter of 12.400 inches and a depth of 2.350 inches, providing the necessary surface area for effective brake shoe contact. The nominal drum diameter of 11.050 inches ensures proper engagement with brake components. With five stud/lug holes measuring 0.632 inches in diameter, this brake drum is designed for secure mounting on Jeep CJ5 and Wagoneer models. The absence of outer cooling fins indicates a solid drum construction optimized for standard braking applications.

Common Applications and Problem Solving

  • Replacement for worn or scored brake drums on Jeep CJ5 and Wagoneer
  • Restores proper braking surface to reduce brake noise and vibration
  • Addresses uneven brake wear caused by damaged drums
  • Helps maintain consistent braking performance and pedal feel
  • Prevents brake fade due to drum surface irregularities

Installation Notes and Tips

  • Ensure compatibility with Jeep CJ5 and Wagoneer before installation
  • Inspect wheel studs and lug nuts for wear or damage during replacement
  • Clean mounting surfaces to prevent misalignment or brake pulsation
  • Check brake shoes for wear and replace if necessary to optimize performance
  • Torque lug nuts to manufacturer specifications to ensure safety

Quality Assurance and Warranty

Raybestos R-Line brake drums are manufactured to meet strict quality standards, ensuring reliable fit and function. While specific warranty details for part number 2307R are not provided, Raybestos products typically come with a limited warranty against defects in material and workmanship. Always verify warranty terms with the supplier or manufacturer.

BrandRaybestos
Part Number2307R
PositionR-Line, Front
Depth2.350
Depth59.700
Nominal Drum Diameter0.435
Nominal Drum Diameter11.050
Outer Cooling FinsNo
Outside Diameter0.487
Outside Diameter12.400
Stud/Lug Hole Diameter0.632
Stud/Lug Hole Diameter16.050
Stud/Lug Hole Quantity5

This part fits 33 vehicles. Search below:

YearMakeModelPositionNotes
1973JeepCJ5FrontCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1973JeepCJ5RearCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1973JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1973JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1972JeepCJ5FrontCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1972JeepCJ5RearCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1972JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1972JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1971JeepCJ5FrontCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1971JeepCJ5RearCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1971JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1971JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1970JeepCJ5FrontCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1970JeepCJ5RearCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1970JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1970JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1969JeepCJ5RearCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1969JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1969JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1968JeepCJ5RearCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1968JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1968JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1967JeepCJ5RearCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1967JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1967JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1966JeepCJ5RearCompatibility with 11 inch drum brake shoe hold down spring and bleeder screw.; R-Line
1966JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1966JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1965JeepCJ5RearCJ5; with 11 IN Brakes; R-Line
1965JeepWagoneerFrontwith 2.96 IN Overall Height; with 11 IN x 2 IN Brakes; R-Line
1965JeepWagoneerRearCompatible with 11" x 2" drum brake systems.; R-Line
1964JeepCJ5RearCJ5; with 11 IN Brakes; R-Line
1963JeepCJ5RearCJ5; with 11 IN Brakes; R-Line

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

122.63006123.6300614008816-8753177-14620076205530212004-C23072307DGS2307R3-91746023074753601396070058753937164937604937606937608937849938608991953991995994305999728AD8306AD8306EBD1074BD1133BD1138BD60139BD8753BD87530C10-488D2307G2307K2307X21414YH140088YH6111

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
