Raybestos 2469R Brake Drum - RearOE Quality 60-Day Returns
Part #: 2469R

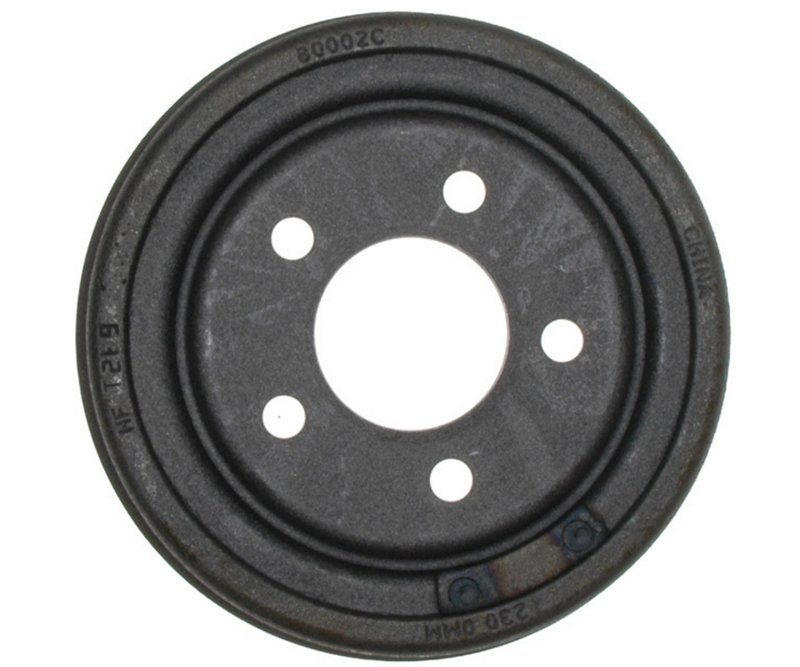

Raybestos 2469R Brake Drum - Rear

R-Line, Rear
42 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$67.93Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
R-Line, Rear
Fitment: Jeep, TJ, Wrangler, Cherokee, Comanche, and Wagoneer
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Brake Drum options

Overview of Raybestos R-Line 2469R Brake Drum

The Raybestos R-Line 2469R brake drum is engineered for reliable braking performance on Jeep vehicles. Designed specifically for Jeep Cherokee, Comanche, TJ, Wagoneer, and Wrangler models, this brake drum ensures proper fit and function for your vehicle's braking system.

  • Outside diameter: 10.750 inches
  • Depth: 3.040 inches
  • Nominal drum diameter: 9.050 inches
  • Stud/Lug hole quantity: 5
  • Stud/Lug hole diameter: 0.613 inches
  • No outer cooling fins

Raybestos R-Line Product Line Details

The R-Line by Raybestos is a product line focused on delivering dependable brake components that meet or exceed OEM specifications. The 2469R brake drum is part of this line, offering consistent dimensions and quality materials to maintain braking efficiency and safety for Jeep vehicles. This line is designed to provide a balance of durability and performance for everyday driving conditions.

Technical Specifications and Features

The 2469R brake drum features an outside diameter of 10.750 inches and a depth of 3.040 inches, matching the required dimensions for proper brake shoe contact and heat dissipation. The nominal drum diameter of 9.050 inches ensures compatibility with the braking system of Jeep Cherokee, Comanche, TJ, Wagoneer, and Wrangler models. It includes five stud/lug holes with a diameter of 0.613 inches, providing secure mounting to the wheel hub. This brake drum does not have outer cooling fins, which is typical for certain Jeep applications where passive cooling is sufficient.

Compatible Jeep Models and Applications

  • Jeep Cherokee
  • Jeep Comanche
  • Jeep TJ
  • Jeep Wagoneer
  • Jeep Wrangler

This brake drum is designed to replace worn or damaged drums on these specific Jeep models, restoring proper braking function and safety.

Common Issues Addressed by the 2469R Brake Drum

  • Brake noise caused by worn or scored drums
  • Reduced braking efficiency due to drum wear or out-of-round conditions
  • Vibration or pulsation during braking from uneven drum surfaces
  • Brake fade from overheated or damaged drums
  • Corrosion or rust compromising drum integrity

Installation Notes and Tips

When installing the Raybestos R-Line 2469R brake drum, ensure the hub and backing plate surfaces are clean and free of debris. Verify the stud/lug hole alignment matches your Jeep model’s specifications. It is recommended to inspect brake shoes and hardware for wear and replace as necessary to maintain optimal braking performance. Proper torque specifications should be followed when mounting the drum to avoid warping.

Quality Assurance and Warranty

Raybestos R-Line brake drums are manufactured to meet strict quality standards, ensuring dimensional accuracy and material integrity. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Refer to Raybestos documentation for complete warranty information.

BrandRaybestos
Part Number2469R
PositionR-Line, Rear
Depth3.040
Depth77.200
Nominal Drum Diameter0.356
Nominal Drum Diameter9.050
Outer Cooling FinsNo
Outside Diameter0.424
Outside Diameter10.750
Stud/Lug Hole Diameter0.613
Stud/Lug Hole Diameter15.550
Stud/Lug Hole Quantity5

This part fits 42 vehicles. Search below:

YearMakeModelPositionNotes
2006JeepTJRearR-Line
2006JeepWranglerRearR-Line
2005JeepTJRearR-Line
2005JeepWranglerRearR-Line
2004JeepTJRearR-Line
2004JeepWranglerRearR-Line
2003JeepTJRearR-Line
2003JeepWranglerRearR-Line
2002JeepTJRearR-Line
2002JeepWranglerRearR-Line
2001JeepCherokeeRearFits models with 9-inch drum brakes.; R-Line
2001JeepTJRearR-Line
2001JeepWranglerRearR-Line
2000JeepCherokeeRearFits models with 9-inch drum brakes.; R-Line
2000JeepTJRearR-Line
2000JeepWranglerRearR-Line
1999JeepCherokeeRearFits models with 9-inch drum brakes.; R-Line
1999JeepTJRearR-Line
1999JeepWranglerRearR-Line
1998JeepCherokeeRearFits models with 9-inch drum brakes.; R-Line
1998JeepTJRearR-Line
1998JeepWranglerRearR-Line
1997JeepCherokeeRearFits models with 9-inch drum brakes.; R-Line
1997JeepTJRearR-Line
1997JeepWranglerRearR-Line
1996JeepCherokeeRearFits models with 9-inch drum brakes.; R-Line
1995JeepCherokeeRearFits models with 9-inch drum brakes.; R-Line
1995JeepWranglerRearR-Line
1994JeepCherokeeRearFits models with 9-inch drum brakes.; R-Line
1994JeepWranglerRearR-Line
1993JeepCherokeeRearDANA 35; with 9 IN Brakes; R-Line
1993JeepWranglerRearR-Line
1992JeepCherokeeRearDANA 35; with 9 IN Brakes; R-Line
1992JeepComancheRearFits models with 9-inch drum brakes.; R-Line
1992JeepWranglerRearR-Line
1991JeepCherokeeRearDANA 35; with 9 IN Brakes; R-Line
1991JeepComancheRearFits models with 9-inch drum brakes.; R-Line
1991JeepWranglerRearR-Line
1990JeepCherokeeRearDANA 35; with 9 IN Brakes; R-Line
1990JeepComancheRearFits models with 9-inch drum brakes.; R-Line
1990JeepWagoneerRearDANA 35; with 9 IN Brakes; R-Line
1990JeepWranglerRearFits models with 9-inch drum brakes.; R-Line

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

122.67021123.6702112503814.8121.8514057016-80002205022212394-C2308024692469DGS2469R255902930345066391780460000252-1250385200535052515460760563-91-7806668687129307251788-400218000288-4002188409AD8721AD8721EAX80002BD125038BD1624BD163BD80002BD88381C10-1239D91780D9384DL80002E-8364P125038Q6070R44140570R448364SB2469X21740YH140570YH6024

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
