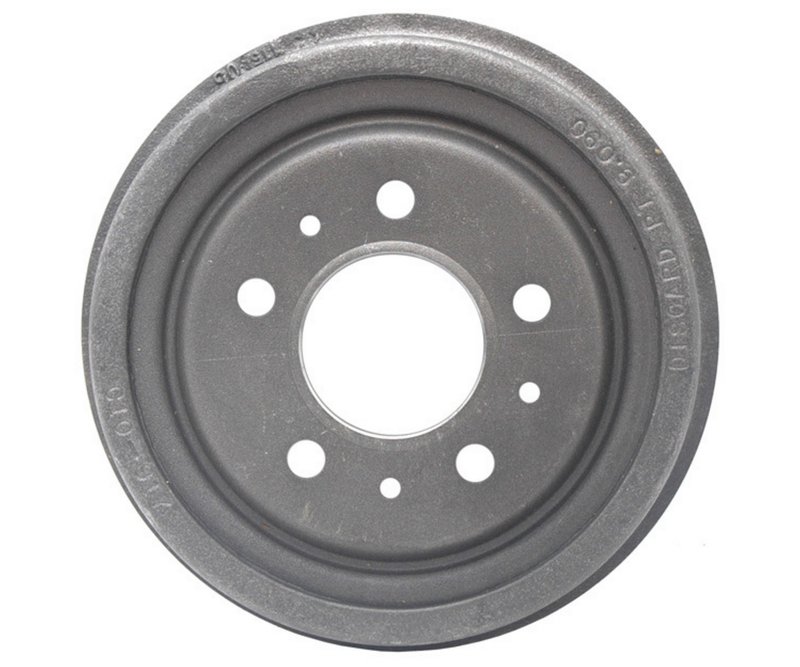

Raybestos 2517R Brake Drum - Rear
OE Quality 60-Day Returns
Raybestos

Raybestos 2517R Brake Drum - Rear

Brand Raybestos 2517R
Position Rear
Outside Diameter 0.418
Outside Diameter 10.650
Depth 2.300
Depth 58.400
Outer Cooling Fins No
Nominal Drum Diameter 0.357
Nominal Drum Diameter 9.050
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 0.613
Stud/Lug Hole Diameter 15.550
Fits —14 vehicles

Brake drum. Part of Raybestos R-Line for dependable braking performance.

Five-lug design. Built with five stud holes for a secure wheel connection.

Cross-references Airtex Fuel Pumps 1109, AMS Automotive 4835 and Centric Parts 123.63017 for the same application. See all 36.

$58.31Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Order total $58.31
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options

Raybestos R-Line Brake Drum 2517R

The Raybestos R-Line 2517R brake drum is built for rear drum brake service where correct dimensions and wheel mounting geometry matter. With a 10.650-inch outside diameter, 2.300-inch depth, and 9.050-inch nominal drum diameter, it supports accurate brake shoe contact and consistent drum brake operation.

For drivers searching for a brake drum for Chevrolet Malibu, Pontiac G6, or Saturn Aura applications, this Raybestos brake drum offers the dimensional fit needed for routine brake repair. The R-Line product line focuses on dependable replacement parts for everyday passenger vehicle maintenance.

Key Features

  • Raybestos R-Line brake drum, part number 2517R
  • Outside diameter: 10.650 inches
  • Depth: 2.300 inches
  • Nominal drum diameter: 9.050 inches
  • 5 stud/lug holes with 15.550 mm hole diameter
  • No outer cooling fins
  • Brake drum replacement for drum brake service

Product Details

The Raybestos 2517R is a rear brake drum engineered around standard drum brake dimensions for vehicles that use a 5-lug wheel pattern. Its 10.650-inch outside diameter and 2.300-inch depth are important measurements for proper shoe-to-drum contact, while the 15.550 mm stud/lug hole diameter supports correct wheel mounting alignment. This part is a practical choice when replacing a worn or out-of-spec drum on Chevrolet Malibu, Pontiac G6, or Saturn Aura models that require this application.

Raybestos R-Line parts are positioned as straightforward replacement components for common brake service needs. If you are comparing brake drum 2517R options for a Chevrolet Malibu brake repair or a Pontiac G6 rear drum replacement, verify vehicle application by year and brake configuration before installation.

This part cross-references Centric Parts 123.63017 and CSF 2517 for the same application.

Common Problems This Part Can Address

  • Brake pulsation caused by an out-of-round drum
  • Reduced braking performance from a worn drum surface
  • Noise during braking from uneven drum wear
  • Improper shoe contact due to incorrect drum dimensions
  • Wheel mounting issues related to damaged lug holes

Installation Notes and Tips

Confirm drum diameter, depth, and lug-hole measurements against the original part before installation. Inspect brake shoes, wheel cylinders, and hardware condition during service, and clean the hub mounting surface so the drum seats evenly. After installation, adjust the rear drum brakes according to the vehicle service procedure and verify smooth rotation before road testing.

Quality Assurance

Raybestos is a long-established brake brand, and the R-Line is its replacement-focused product line for everyday brake service. The 2517R is built to match the listed dimensional specifications for the intended application.

Related reading

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1979American MotorsAMXRearComposite Drum; R-Line
1979American MotorsSpiritRearComposite Drum; R-Line
1976American MotorsGremlinRearComposite Drum; with Non-Finned Drum; with 9 IN Brakes; R-Line
1976American MotorsHornetRearComposite Drum; with Non-Finned Drum; R-Line
1976American MotorsPacerRearComposite Drum; with Non-Finned Drum; R-Line
1975American MotorsGremlinRearComposite Drum; with Non-Finned Drum; with 9 IN Brakes; R-Line
1975American MotorsHornetRearComposite Drum; with Non-Finned Drum; R-Line
1975American MotorsPacerRearComposite Drum; with Non-Finned Drum; R-Line
1974American MotorsGremlinRearComposite Drum; with Non-Finned Drum; with 9 IN Brakes; R-Line
1974American MotorsHornetRearComposite Drum; with Non-Finned Drum; R-Line
1974American MotorsJavelinRearComposite Drum; with Non-Finned Drum; R-Line
1973American MotorsGremlinRearFits drum brake shoe with a 9in diameter brake drum.; R-Line
1973American MotorsHornetRearFits drum brake shoe with a 9in diameter brake drum.; R-Line
1973American MotorsJavelinRearFits drum brake shoe with a 9in diameter brake drum.; R-Line
Directly replaces or cross-references 36 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
