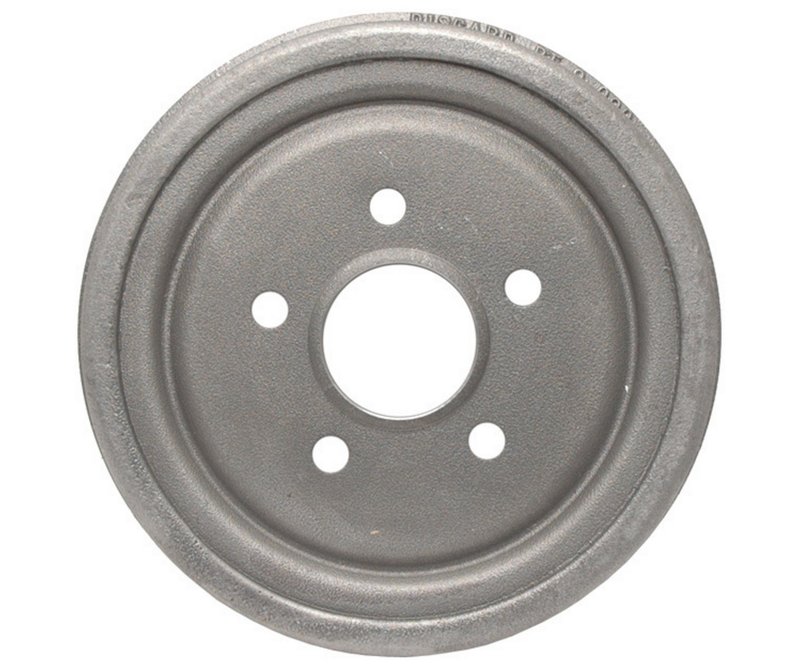

Raybestos 2940R Brake Drum - Front
| Brand | Raybestos 2940R |
|---|---|
| Position | Front |
| Outside Diameter | 0.409 |
| Outside Diameter | 10.400 |
| Depth | 2.860 |
| Depth | 72.650 |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 0.358 |
| Nominal Drum Diameter | 9.100 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.545 |
| Stud/Lug Hole Diameter | 13.850 |
| Product line | R-Line |
| Fits | Dodge · 9 vehicles |
Brake drum. Precision-engineered for dependable braking performance.
R-Line quality. Raybestos offers a trusted line of brake components.
Cross-references AMS Automotive 4190, AMS Automotive 6341 and Anchor 8190 for the same application. See all 60.
Raybestos R-Line Brake Drum 2940R
The Raybestos R-Line 2940R brake drum is built for front drum brake applications that call for a 9.100-inch nominal drum diameter and a 10.400-inch outside diameter. With a 2.860-inch depth and five lug holes, it matches the dimensional requirements used on select Dodge Dart and Dodge Lancer front brake setups.
Key Features
- Raybestos R-Line brake drum, part number 2940R
- Nominal drum diameter: 9.100 inches
- Outside diameter: 10.400 inches
- Depth: 2.860 inches
- Five stud/lug holes with 13.850 mm lug hole diameter
- No outer cooling fins
- Front-position brake drum for select Dodge applications
Product Details
Raybestos R-Line focuses on replacement brake components for everyday service needs, and the 2940R follows that approach with application-specific dimensions for front drum brake systems. This brake drum is listed for 1963-1969 Dodge Dart, front, with notes calling out a drum brake shoe setup using a 9-inch diameter brake drum, and for 1961-1962 Dodge Lancer, front. If you are searching for a Raybestos 2940R brake drum for a Dodge Dart front brake repair or a Dodge Lancer front drum brake replacement, this part number is the direct reference to verify against your existing drum.
This part cross-references Centric Parts 123.63003 and Anchor 8190 for the same application.
What It Is Used For
- Replacing a worn or out-of-round front brake drum
- Restoring proper drum-to-shoe contact on front drum brake systems
- Addressing brake pulsation caused by drum wear or scoring
- Correcting braking noise related to drum surface condition
- Supporting service work on 1963-1969 Dodge Dart and 1961-1962 Dodge Lancer front brakes
Installation Notes and Tips
Confirm the existing drum diameter, depth, lug hole count, and front-position fitment before installation. For best results, inspect brake shoes, wheel cylinders, and related hardware for wear while servicing the drum brake assembly. On 1963-1969 Dodge Dart front applications, verify the 9-inch drum brake shoe setup matches the vehicle before ordering the Raybestos 2940R.
Quality Assurance
Raybestos R-Line brake components are cataloged for direct replacement use and dimensional consistency. Verify all measurements and vehicle fitment details against the original part before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1969 | Dodge | Dart | Front | Fits drum brake shoe with a 9in diameter brake drum.; R-Line |
| 1968 | Dodge | Dart | Front | Fits drum brake shoe with a 9in diameter brake drum.; R-Line |
| 1967 | Dodge | Dart | Front | Fits drum brake shoe with a 9in diameter brake drum.; R-Line |
| 1966 | Dodge | Dart | Front | Fits drum brake shoe with a 9in diameter brake drum.; R-Line |
| 1965 | Dodge | Dart | Front | Fits drum brake shoe with a 9in diameter brake drum.; R-Line |
| 1964 | Dodge | Dart | Front | Fits drum brake shoe with a 9in diameter brake drum.; R-Line |
| 1963 | Dodge | Dart | Front | Fits drum brake shoe with a 9in diameter brake drum.; R-Line |
| 1962 | Dodge | Lancer | Front | R-Line |
| 1961 | Dodge | Lancer | Front | R-Line |
