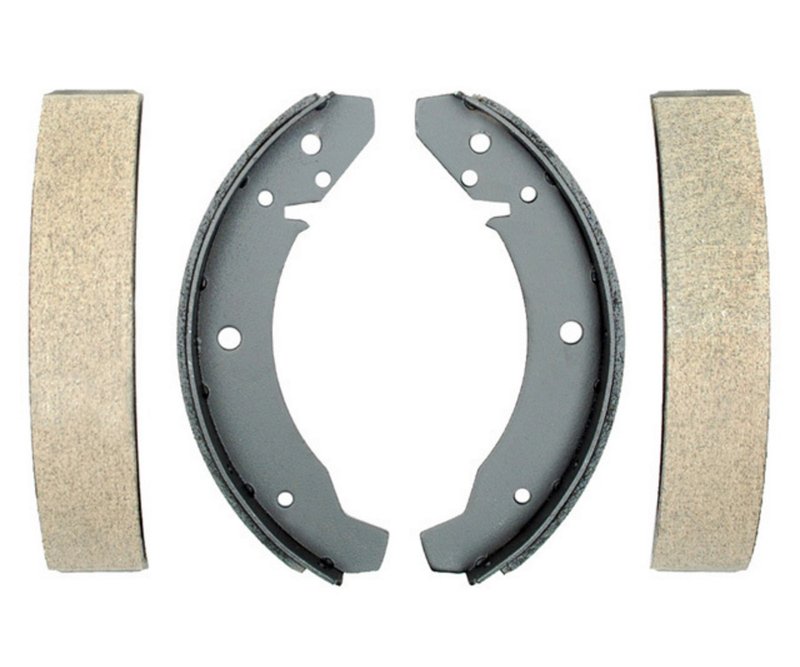

Raybestos 315PG Drum Brake Shoe - Rear
Raybestos 315PG Rear Drum Brake Shoe
Raybestos 315PG is a rear drum brake shoe for select Porsche 924 and Volkswagen Beetle applications. It uses an organic friction material and is built around the listed drum and shoe dimensions for a direct-fit brake service part.
Key Features
- Part number 315PG from Raybestos Element3; Organic
- Organic friction material for rear drum brake service
- Brake drum diameter: 230.000 mm / 9.055 in
- Brake shoe width: 40.000 mm / 1.575 in
- Friction lining length: 9.630 in
- Friction lining width: 1.600 in
- Shoe assembly radius: 4.530 in
- Steel radius: 4.366 in
- Steel width: 1.570 in
- Web thickness: 0.122 in
Product Details
The Raybestos Element3; Organic line focuses on brake shoes with organic friction material and application-specific dimensions. This 315PG drum brake shoe is specified for rear use on 1968-1977 Volkswagen Beetle and 1977-1982 Porsche 924 models, making it a fitment-based choice for classic import brake repair. The part number 315PG is also referenced in cross-application listings such as Bosch BS1052 and Wagner Brake Z315 for the same application.
What It Helps Address
- Rear brake shoe wear that reduces braking performance
- Uneven or inconsistent drum brake contact
- Noise or vibration from worn friction surfaces
- Brake service needs on classic Volkswagen Beetle and Porsche 924 rear drums
- Restoration work requiring the correct drum brake shoe dimensions
Installation Notes
Verify drum diameter, shoe width, and radius before installation. This rear drum brake shoe is listed for 1968-1977 Volkswagen Beetle and 1977-1982 Porsche 924 applications, so confirm the vehicle year and rear brake configuration against the fitment data before service. Inspect the brake drum and related hardware for wear or scoring during brake work.
Quality Assurance
Raybestos is a recognized brake parts brand with application-specific cataloging for import vehicles. The 315PG is listed with defined dimensional specifications and confirmed fitment data for the rear brake position on the vehicles shown above.
| Brand | Raybestos |
|---|---|
| Part Number | 315PG |
| Position | Element3; Organic, Rear |
| Brake Shoe Width | 1.575 |
| Brake Shoe Width | 40.000 |
| Friction Material | Organic |
| Brake Drum Diameter | 230.000 |
| Brake Drum Diameter | 9.055 |
| Friction Lining Length | 9.630 |
| Friction Lining Width | 1.600 |
| Shoe Assembly Radius | 4.530 |
| Steel Radius | 4.366 |
| Steel Width | 1.570 |
| Web Thickness | 0.122 |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1982 | Porsche | 924 | Base | Rear | Element3; Organic |
| 1981 | Porsche | 924 | Base | Rear | Element3; Organic |
| 1980 | Porsche | 924 | Base | Rear | Element3; Organic |
| 1979 | Porsche | 924 | Rear | Element3; Organic | |
| 1978 | Porsche | 924 | Rear | Element3; Organic | |
| 1977 | Porsche | 924 | Rear | Element3; Organic | |
| 1977 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1976 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1975 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1974 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1973 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1972 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1971 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1970 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1969 | Volkswagen | Beetle | Rear | Element3; Organic | |
| 1968 | Volkswagen | Beetle | Rear | Element3; Organic |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
