Raybestos 5060R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 R-Line

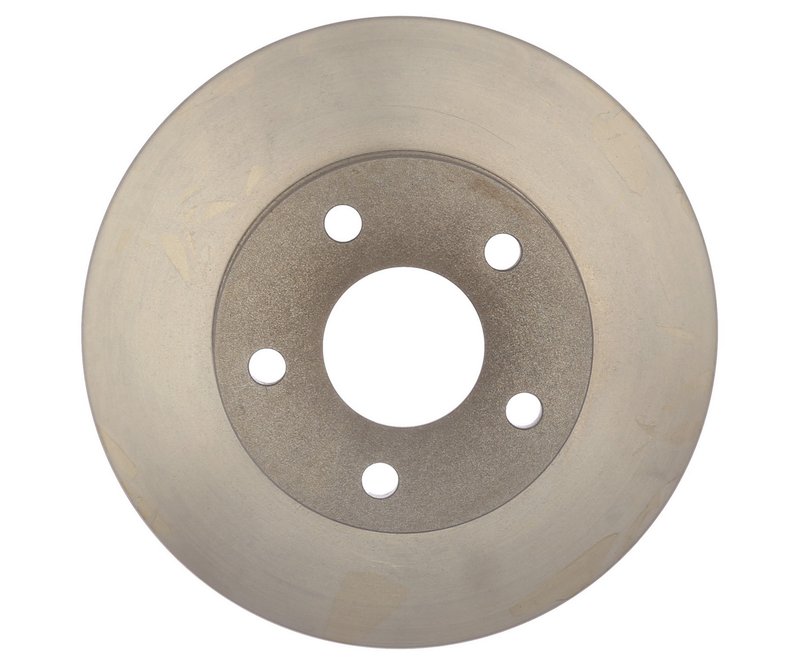

Raybestos 5060R Disc Brake Rotor - Front

Brand Raybestos 5060R
Position Front
Center Hole Diameter 2.300
Center Hole Diameter 58.400
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.815
Discard Thickness 20.700
Mounting Bolt Hole Circle Diameter 3.937
Mounting Bolt Hole Circle Diameter 100.000
Mounting Bolt Hole Diameter 3.937
Mounting Bolt Hole Diameter 100.000
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.875
Nominal Thickness 22.200
Outside Diameter 9.700
Outside Diameter 246.400
Overall Height 1.799
Overall Height 45.700
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 5
Product line R-Line
Fits Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac · 15 vehicles

Solid rotor. Conventional design for dependable braking performance.

Raybestos R-Line. A trusted brake line from a long-standing braking brand.

Cross-references AMS Automotive 4456, Centric Parts 121.62009 and FEL-PRO 60592 for the same application. See all 50.

$46.47Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $46.47
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line 5060R Front Disc Brake Rotor

The Raybestos R-Line 5060R is a solid front disc brake rotor built for specific compact GM applications from the early 1980s. With a 246.4 mm outside diameter, 22.2 mm nominal thickness, and 5-lug mounting pattern, it matches the dimensional requirements for listed Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac front brake setups.

Key Features

  • Raybestos R-Line replacement rotor for front brake service
  • Solid, conventional rotor design
  • Outside diameter: 246.4 mm (9.700 in.)
  • Nominal thickness: 22.2 mm (0.875 in.)
  • Discard thickness: 20.7 mm (0.815 in.)
  • Overall height: 45.7 mm (1.799 in.)
  • 5 mounting bolt holes and 5 stud/lug holes
  • Center hole diameter: 58.4 mm (2.300 in.)
  • Bolt circle diameter: 100.0 mm (3.937 in.)

Product Details

Raybestos 5060R is a front disc brake rotor for vehicles that use a conventional, solid rotor configuration. The R-Line product line focuses on direct-fit brake service parts, and this rotor is dimensioned for the listed applications, including 1982-1984 Buick Skyhawk front, 1982-1984 Cadillac Cimarron front, 1983-1984 Chevrolet Cavalier front, 1982-1984 Oldsmobile Firenza front, 1982-1983 Pontiac J2000 front, and 1984 Pontiac J2000 Sunbird front. This part cross-references Monroe Shocks & Struts 5543 for the same application.

What This Rotor Helps Address

  • Brake pulsation caused by rotor wear or thickness variation
  • Reduced braking consistency from a worn front rotor
  • Noise or vibration during light to moderate braking
  • Service replacement for rotors that have reached discard thickness
  • Front brake maintenance on listed Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models

Installation Notes and Fitment

Compatible With 1982-1984 Buick Skyhawk, front; 1982-1984 Cadillac Cimarron, front; 1983-1984 Chevrolet Cavalier, front; 1982-1984 Oldsmobile Firenza, front; 1982-1983 Pontiac J2000, front; and 1984 Pontiac J2000 Sunbird, front. Notes on several listings specify use only with vented rotors, so verify the existing brake configuration before installation. Confirm rotor dimensions, hub fit, and bolt pattern against the vehicle before service. Raybestos 5060R is a direct replacement-style rotor for the listed front applications.

Quality Assurance

Raybestos R-Line brake components are built around application-specific fitment and dimensional accuracy for routine brake service. The 5060R follows the listed OE-style specifications for diameter, thickness, center bore, and bolt pattern to support proper front brake rotor replacement on the confirmed vehicles.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1984BuickSkyhawkFrontOnly compatible with vented rotors.; R-Line
1984CadillacCimarronFrontR-Line
1984ChevroletCavalierFrontR-Line
1984OldsmobileFirenzaFrontOnly compatible with vented rotors.; R-Line
1984PontiacJ2000 SunbirdFrontOnly compatible with vented rotors.; R-Line
1983BuickSkyhawkFrontOnly compatible with vented rotors.; R-Line
1983CadillacCimarronFrontR-Line
1983ChevroletCavalierFrontR-Line
1983OldsmobileFirenzaFrontOnly compatible with vented rotors.; R-Line
1983PontiacJ2000FrontOnly compatible with vented rotors.; R-Line
1982BuickSkyhawkFrontOnly compatible with vented rotors.; R-Line
1982CadillacCimarronFrontR-Line
1982ChevroletCavalierFrontOnly compatible with vented rotors.; R-Line
1982OldsmobileFirenzaFrontOnly compatible with vented rotors.; R-Line
1982PontiacJ2000FrontOnly compatible with vented rotors.; R-Line
Directly replaces or cross-references 50 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AMS Automotive — 4456Centric Parts — 121.62009FEL-PRO — 60592Four Seasons — 55431Hayden — 5041Hayden — 5060Monroe Shocks & Struts — 5543OSC — 1732Raybestos Brakes — 5060RRemy — 14662Remy — 2502152-6059281-6059289-36009120.62009177-641177-733789-3600911685060RGS5207-880-6101430141218210247-C325291493570526030635060681002805060461506012309947123531751403041314075755AR8209AR8209EAX5543BD60592BR1205BR5543BR55430D5043D5060P60592RCDI00116SB5060X50271YH2175YH141218
