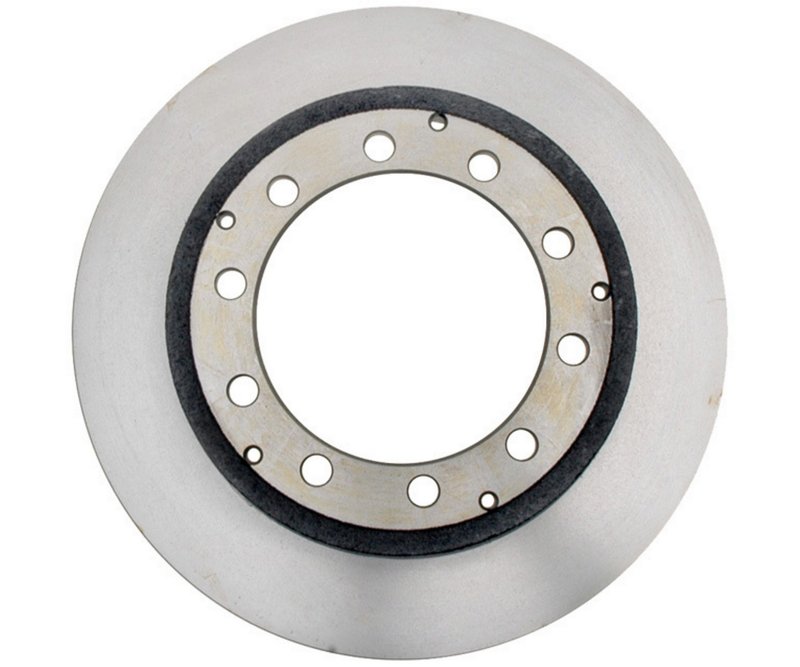

Raybestos 56996R Disc Brake Rotor - Rear

Raybestos R-Line 56996R Disc Brake Rotor Overview

The Raybestos R-Line 56996R disc brake rotor is engineered for reliable braking performance and durability. Designed as a vented, conventional rotor, it offers effective heat dissipation and consistent stopping power for vehicles requiring a 10-bolt mounting configuration.

• Vented disc brake rotor for improved heat management
• Overall height of 3.800 inches (96.5 mm) ensures proper fitment
• Outside diameter of 14.750 inches (374.65 mm) for compatibility with specific vehicle models
• Mounting bolt hole quantity: 10, with a bolt circle diameter of 7.250 inches (184.15 mm)
• Center hole diameter of 6.003 inches (152.5 mm) for precise hub alignment
• Nominal thickness of 1.345 inches (34.15 mm) with discard thickness at 1.225 inches (31.1 mm) to maintain rotor integrity

Detailed Specifications and Features

The Raybestos R-Line 56996R rotor is a vented type, which means it has internal vanes that allow air to flow through the rotor, reducing heat buildup during braking. This helps prevent brake fade and extends the rotor's service life. The rotor's conventional design is compatible with drum-in-hat style assemblies, commonly found on certain trucks and SUVs. With 10 mounting bolt holes and a stud/lug hole quantity of 10, this rotor is designed for vehicles requiring a robust and secure fitment. The precise center hole diameter ensures proper centering on the hub, minimizing vibrations and promoting even wear.

R-Line Product Line Information

The R-Line by Raybestos is a product line focused on delivering dependable brake components that meet or exceed OEM specifications. The 56996R rotor is part of this line, offering a balance of performance and durability suitable for daily driving and moderate-duty applications. R-Line rotors are engineered to provide consistent braking performance with attention to fit and finish, making them a practical choice for replacement rotors.

Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Solution for rotors below discard thickness leading to reduced braking efficiency
• Addressing overheating issues with vented rotor design to reduce brake fade
• Compatible with vehicles requiring 10-bolt mounting patterns and specific rotor dimensions
• Restores proper brake rotor thickness and height for safe braking performance

Installation Notes and Tips

Ensure the rotor surface and hub mounting area are clean and free of rust or debris before installation. Verify the mounting bolt hole pattern and center hole diameter match the vehicle specifications. Use a calibrated micrometer to check rotor thickness before installation to confirm it meets nominal thickness requirements. Proper torque specifications should be followed when securing the rotor to avoid warping.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet industry standards for quality and durability. While specific warranty details for part number 56996R are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. It is recommended to consult Raybestos or the vehicle manufacturer for exact warranty coverage related to this rotor.
