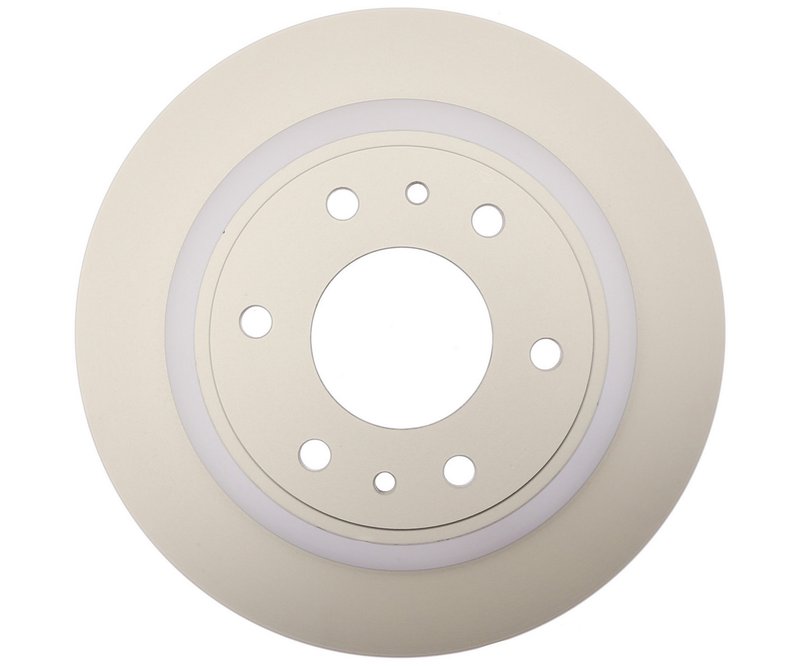

Raybestos 580029FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor 580029FZN

The Raybestos Element3; Coated Rotor 580029FZN is engineered for reliable braking performance on select Buick, Chevrolet, GMC, Isuzu, Oldsmobile, and Saab models. Designed as a vented disc brake rotor with a drum-in-hat configuration, this rotor supports vehicles such as the Trailblazer, Envoy, and Ascender.

• Vented disc brake rotor with drum-in-hat design
• Overall height: 3.345 inches (84.95 mm)
• Outside diameter: 12.8 inches (325.1 mm)
• Nominal thickness: 0.785 inches (19.95 mm)
• Discard thickness: 0.728 inches (18.5 mm)
• Mounting bolt hole quantity: 6 with 0.511 inch (13 mm) diameter
• Center hole diameter: 3.094 inches (78.6 mm)
• Mounting bolt hole circle diameter: 5 inches (127 mm)
• Stud/lug hole quantity: 6

Detailed Product Description

This Raybestos disc brake rotor, part number 580029FZN, features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade under demanding conditions. The drum-in-hat type rotor integrates a parking brake drum, providing a dual-function component suitable for vehicles like the Chevrolet Trailblazer and GMC Envoy. With a nominal thickness of 0.785 inches and a discard thickness of 0.728 inches, this rotor maintains structural integrity and safety standards throughout its service life. The precise mounting bolt hole pattern and center hole diameter ensure proper fitment and alignment on compatible vehicles.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos is designed to offer enhanced corrosion resistance through a protective coating, extending rotor life and maintaining appearance. This coating helps prevent rust buildup, which can affect braking performance and rotor longevity. The 580029FZN rotor benefits from this coating, making it suitable for drivers seeking durable and consistent braking components for their Buick, Chevrolet, GMC, Isuzu, Oldsmobile, and Saab vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion and rust buildup
• Improving heat dissipation to reduce brake fade
• Restoring proper parking brake function with drum-in-hat design
• Ensuring correct fitment for vehicles with 6-bolt mounting patterns

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness of 0.728 inches
• Ensure mounting surfaces are clean and free of debris for proper rotor seating
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Check parking brake adjustment after installation due to drum-in-hat design

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor 580029FZN to meet or exceed OEM specifications for fit, form, and function. The protective coating enhances corrosion resistance, contributing to longer service life. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
