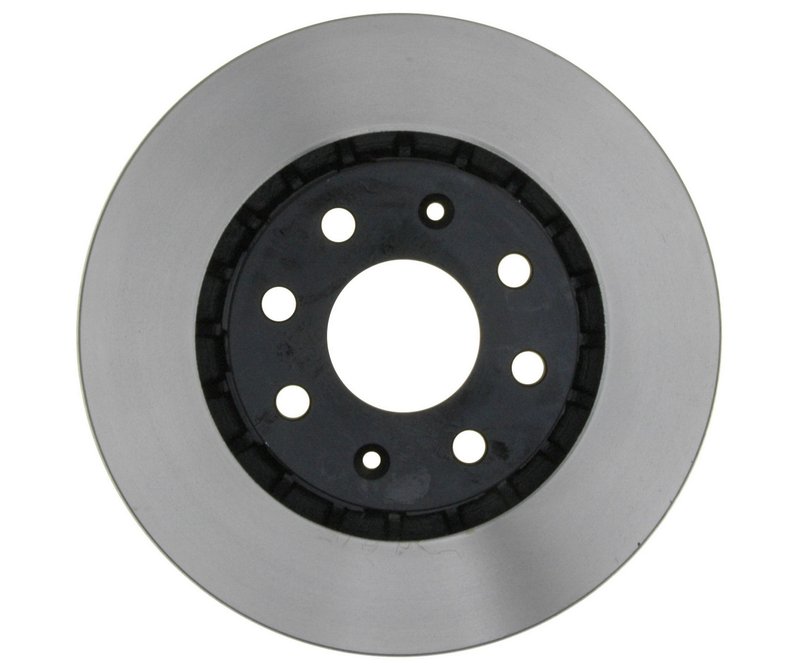

Raybestos 580212 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Street Performance Rotor

The Raybestos Specialty - Street Performance disc brake rotor 580212 is engineered for reliable braking performance on select Chevrolet, Pontiac, and Suzuki models. Designed as a vented rotor, it offers effective heat dissipation for consistent stopping power during everyday driving and street performance applications.

• Vented disc brake rotor for improved heat management
• Nominal thickness of 0.942 inches (23.95 mm) with discard thickness at 0.866 inches (22.00 mm)
• Overall height of 1.616 inches (41.05 mm)
• Outside diameter measures 10.080 inches (256.05 mm)
• Mounting bolt hole quantity: 4 with a 100 mm (3.937 inch) bolt circle diameter
• Conventional rotor type compatible with drum-in-hat setups
• Compatible with Chevrolet Aveo, Aveo5, Pontiac G3, G3 Wave, Spark, Spark EV, Suzuki Swift, Swift+, Wave, and Wave5

Product Line Details: Specialty - Street Performance

The Specialty - Street Performance line by Raybestos focuses on delivering rotors that balance everyday drivability with enhanced street performance characteristics. This rotor 580212 is designed to meet the demands of drivers who require dependable braking with improved thermal management, making it suitable for street-driven vehicles that occasionally experience spirited driving conditions.

Technical Specifications and Features

This Raybestos rotor features a vented design that helps reduce brake fade by allowing air to circulate between the rotor surfaces. The nominal thickness of 0.942 inches ensures durability and longevity, while the discard thickness of 0.866 inches indicates when the rotor should be replaced to maintain safe braking performance. The overall height of 1.616 inches and outside diameter of 10.080 inches are engineered to fit specific vehicle models precisely. The rotor includes four mounting bolt holes arranged on a 100 mm bolt circle diameter, ensuring proper fitment on compatible Chevrolet, Pontiac, and Suzuki vehicles.

Applications and Problem Solving

• Restores braking performance on Chevrolet Aveo and Aveo5 models
• Replaces worn or warped rotors on Pontiac G3 and G3 Wave vehicles
• Improves heat dissipation for Suzuki Swift and Swift+ during stop-and-go driving
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Suitable for Spark and Spark EV models requiring vented rotors for consistent braking

Installation Notes and Tips

Ensure the rotor 580212 is installed on vehicles with compatible mounting bolt patterns and dimensions. Verify the rotor thickness before installation to confirm it meets or exceeds the discard thickness specification. Properly torque mounting bolts to manufacturer specifications to avoid rotor warping. It is recommended to inspect brake pads and hardware during rotor replacement to maintain optimal braking system performance.

Quality Assurance and Warranty

Raybestos rotors undergo rigorous quality control to meet industry standards for safety and durability. The Specialty - Street Performance rotor 580212 is manufactured to precise specifications to ensure consistent fit and function. Warranty coverage details should be confirmed with the product documentation or manufacturer.
