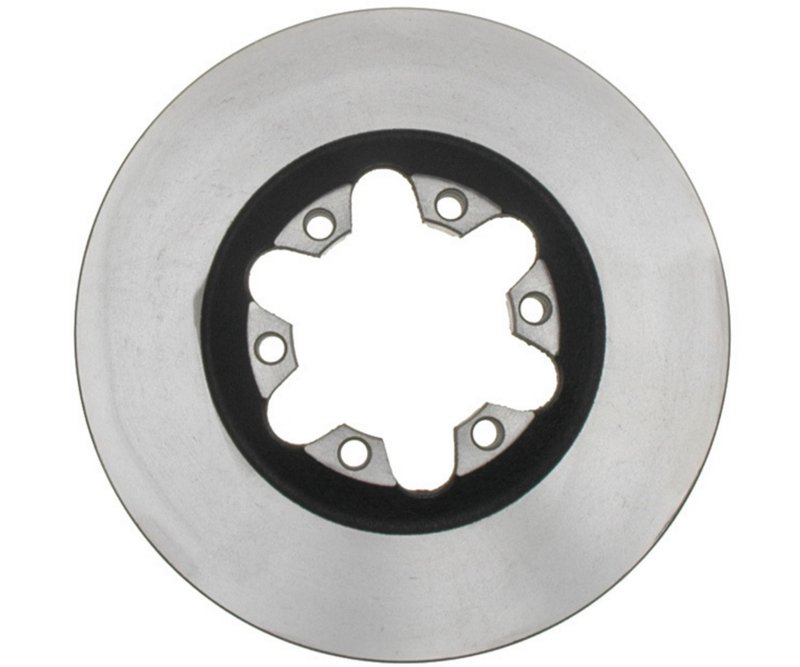

Raybestos 580216 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Truck Disc Brake Rotor

The Raybestos Specialty - Truck disc brake rotor 580216 is engineered for reliable braking performance on select Chevrolet, GMC, and Isuzu trucks. Designed specifically for models like the Chevrolet Colorado and GMC Canyon, this vented rotor ensures consistent heat dissipation and durability under demanding conditions.

• Vented disc brake rotor for improved cooling
• Nominal thickness of 1.063 inches (27.000 mm)
• Discard thickness at 1.010 inches (25.650 mm)
• Overall height of 1.573 inches (39.950 mm)
• Outside diameter measuring 11.030 inches (280.150 mm)
• 6 mounting bolt holes with a 4.409 inch (112.000 mm) bolt circle diameter
• Center hole diameter of 3.626 inches (92.100 mm)
• Conventional rotor type compatible with drum-in-hat setups

Detailed Product Description

This Raybestos disc brake rotor, part number 580216, is part of the Specialty - Truck product line, which focuses on heavy-duty and truck-specific braking components. The vented design enhances airflow to reduce heat buildup during braking, which helps maintain consistent stopping power and rotor longevity. With a nominal thickness of 1.063 inches and a discard thickness of 1.010 inches, this rotor meets precise wear limits to ensure safe operation. The rotor’s 11.030-inch outside diameter and 6-bolt mounting pattern with a 4.409-inch bolt circle diameter make it compatible with Chevrolet Colorado, GMC Canyon, and Isuzu i-Series trucks including i-280, i-290, i-350, and i-370 models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Chevrolet Colorado and GMC Canyon trucks
• Improves braking performance on Isuzu i-Series trucks experiencing fade or noise
• Addresses rotor thickness below discard limits to maintain safety
• Resolves vibration issues caused by uneven rotor surfaces
• Supports heavy-duty braking demands in truck applications

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it exceeds discard thickness of 1.010 inches
• Clean mounting surfaces and check bolt hole alignment for the 6-bolt pattern
• Use proper torque specifications for mounting bolts to avoid rotor warping
• Inspect brake pads and calipers during rotor replacement for optimal system performance

Quality Assurance and Warranty

Raybestos Specialty - Truck rotors are manufactured to meet or exceed OEM specifications for durability and performance. The 580216 rotor undergoes rigorous quality control to ensure consistent thickness, balance, and material integrity. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship.
