OE Quality
60-Day Returns

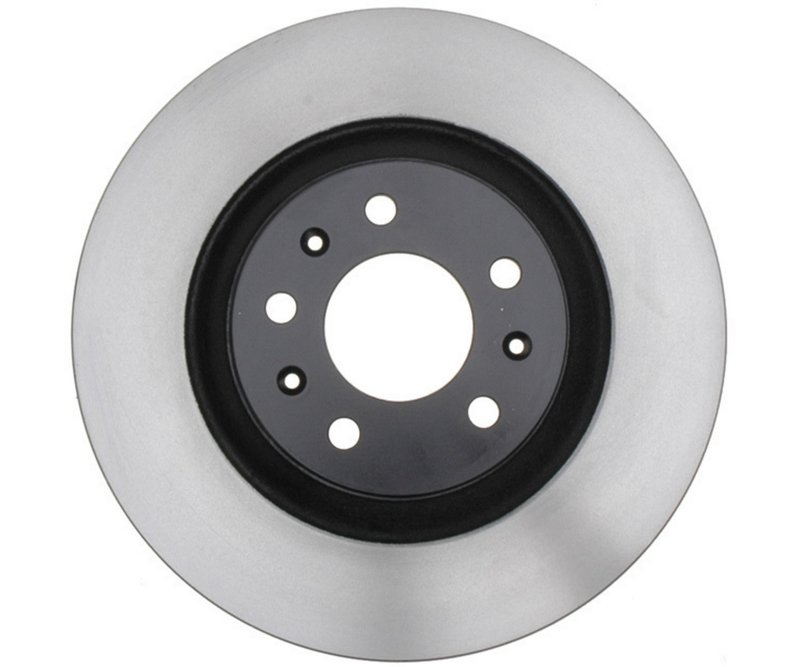

Raybestos 580264 Disc Brake Rotor - Front
Overview of Raybestos Specialty - Street Performance Rotor
The Raybestos Specialty - Street Performance disc brake rotor, part number 580264, is engineered for reliable braking performance on select Cadillac and Pontiac models. Designed as a solid rotor, it offers consistent stopping power for vehicles like the Cadillac CTS, STS, and Pontiac Bonneville.
- Solid disc brake rotor with conventional design
- Outside diameter: 12.715 inches (322.95 mm)
- Nominal thickness: 1.270 inches (32.25 mm)
- Discard thickness: 1.209 inches (30.7 mm)
- Overall height: 2.040 inches (51.8 mm)
- Five mounting bolt holes with 115 mm bolt circle diameter
- Center hole diameter: 2.783 inches (70.7 mm)
- Compatible with 5 stud/lug hole configuration
Detailed Product Description
This Raybestos disc brake rotor (part number 580264) is a solid, conventional rotor designed to meet the braking demands of Cadillac CTS, STS, and Pontiac Bonneville vehicles. The rotor features a 12.715-inch outside diameter and a nominal thickness of 1.270 inches, ensuring proper fit and function within the brake system. The discard thickness of 1.209 inches indicates the minimum allowable thickness before replacement is necessary, helping maintain safe braking performance. The rotor’s overall height measures 2.040 inches, and it includes five mounting bolt holes arranged on a 115 mm bolt circle diameter, compatible with the specified vehicle models. The center hole diameter of 2.783 inches ensures proper hub fitment for these applications.
Specialty - Street Performance Product Line
The Raybestos Specialty - Street Performance line focuses on delivering dependable braking components tailored for street-driven vehicles requiring consistent performance. This product line balances durability and everyday usability, making it suitable for drivers of Cadillac CTS, STS, and Pontiac Bonneville models who need reliable replacement rotors without vented or drilled features.
Applications and Problem Solving
- Replacement for worn or warped rotors on Cadillac CTS, STS, and Pontiac Bonneville
- Addresses brake pulsation caused by uneven rotor thickness
- Restores proper rotor thickness to maintain braking efficiency
- Solves issues related to rotor runout and noise
- Ensures compatibility with 5-lug bolt pattern vehicles
Installation Notes and Tips
- Verify rotor thickness before installation to ensure it meets minimum discard thickness
- Clean rotor surface and hub mounting area to prevent uneven wear
- Torque mounting bolts to manufacturer specifications for secure fitment
- Inspect brake pads and replace if worn to optimize rotor performance
- Perform a test drive to confirm proper brake operation after installation
Quality Assurance and Warranty
Raybestos rotors undergo rigorous quality control to meet OEM standards for fit, form, and function. The Specialty - Street Performance rotors are manufactured to provide consistent braking performance and durability. Warranty coverage details should be confirmed with the product documentation or supplier.
| Brand | Raybestos |
|---|---|
| Part Number | 580264 |
| Position | Specialty - Street Performance, Front |
| Center Hole Diameter | 2.783 |
| Center Hole Diameter | 70.700 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.209 |
| Discard Thickness | 30.700 |
| Mounting Bolt Hole Circle Diameter | 4.528 |
| Mounting Bolt Hole Circle Diameter | 115.000 |
| Mounting Bolt Hole Diameter | 4.528 |
| Mounting Bolt Hole Diameter | 115.000 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.270 |
| Nominal Thickness | 32.250 |
| Outside Diameter | 12.715 |
| Outside Diameter | 322.950 |
| Overall Height | 2.040 |
| Overall Height | 51.800 |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Cadillac | STS | Base | Front | GM Brake Code JE5; Rotor Diameter 12.72 IN; with Vented Rotors; with 5 Stud Rotor; Specialty - Street Performance |
| 2008 | Cadillac | STS | Platinum | Front | GM Brake Code JE5; Rotor Diameter 12.72 IN; with Vented Rotors; with 5 Stud Rotor; Specialty - Street Performance |
| 2007 | Cadillac | CTS | Base | Front | with FE5 PERFORMANCE AND HANDLING Suspension; Rotor Diameter 12.72 IN; Specialty - Street Performance |
| 2007 | Cadillac | STS | Base | Front | GM Brake Code JE5; Rotor Diameter 12.72 IN; with Vented Rotors; with 5 Stud Rotor; Specialty - Street Performance |
| 2006 | Cadillac | CTS | Base | Front | with FE5 PERFORMANCE AND HANDLING Suspension; Rotor Diameter 12.72 IN; Specialty - Street Performance |
| 2006 | Cadillac | STS | Base | Front | GM Brake Code JE5; Rotor Diameter 12.72 IN; with Vented Rotors; with 5 Stud Rotor; Specialty - Street Performance |
| 2005 | Cadillac | STS | Front | GM Brake Code JE5; Rotor Diameter 12.72 IN; with Vented Rotors; with 5 Stud Rotor; Specialty - Street Performance | |
| 2005 | Pontiac | Bonneville | GXP | Front | Specialty - Street Performance |
| 2004 | Pontiac | Bonneville | GXP | Front | Specialty - Street Performance |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
