RaybestosPart #: 580380FZN

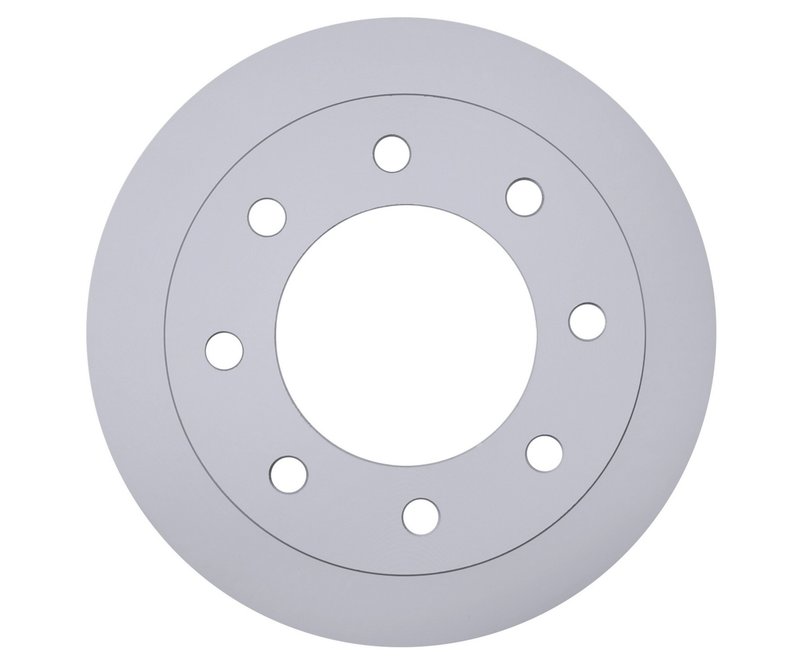

Raybestos 580380FZN Disc Brake Rotor - Rear
85 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$123.83Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
Out of Stock
OE Direct Replacement — Bolt-on fit, no modifications needed
Element3; Coated Rotor, Rear
Fitment: Chevrolet and GMC, Express 2500, Express 3500, Savana 2500, and Savana 3500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Disc Brake Rotor options
Overview of Raybestos Element3 Coated Rotor 580380FZN
The Raybestos Element3; Coated Rotor 580380FZN is engineered for reliable braking performance on heavy-duty vans. Designed specifically for Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500 models, this disc brake rotor meets precise specifications to ensure proper fit and function.
- Part Number: 580380FZN
- Brand Line: Element3; Coated Rotor
- Vented disc brake rotor with drum-in-hat design
- Outside diameter: 12.989 inches (329.9 mm)
- Nominal thickness: 1.147 inches (29.15 mm)
- Discard thickness: 1.083 inches (27.5 mm)
- Overall height: 3.416 inches (86.75 mm)
- Mounting bolt hole quantity: 8 with 6.5 inch (165.1 mm) bolt circle diameter
Detailed Product Description
This Raybestos disc brake rotor features a vented design to improve heat dissipation during braking, reducing the risk of brake fade under heavy load conditions. The drum-in-hat configuration integrates a parking brake drum within the rotor, providing a compact and efficient braking solution for Chevrolet Express and GMC Savana 2500 and 3500 series vans. The rotor’s outside diameter measures 12.989 inches, with a nominal thickness of 1.147 inches, ensuring compatibility with factory specifications. The discard thickness of 1.083 inches indicates the minimum safe thickness before replacement is required, helping maintain braking safety and performance.
The rotor includes eight mounting bolt holes arranged on a 6.5-inch bolt circle diameter, matching the wheel hub pattern of the specified vehicles. The overall height of 3.416 inches supports proper alignment and fitment within the brake assembly.
About the Element3; Coated Rotor Product Line
The Element3; Coated Rotor line by Raybestos is designed to provide enhanced corrosion resistance and durability. The coating helps protect the rotor surface from rust and environmental damage, extending the service life of the brake component. This product line is suitable for commercial and fleet vehicles requiring dependable braking under demanding conditions, such as the Chevrolet Express and GMC Savana vans.
Common Applications and Problem Solving
- Replacement for worn or warped rotors causing brake pulsation
- Addressing rotor corrosion and surface rust affecting braking efficiency
- Resolving noise issues related to uneven rotor wear
- Maintaining proper parking brake function with integrated drum-in-hat design
- Ensuring safe braking performance on heavy-duty Chevrolet and GMC vans
Installation Notes and Tips
- Verify rotor thickness before installation to ensure it meets or exceeds discard thickness
- Clean mounting surfaces and hub to prevent rotor runout
- Torque mounting bolts to manufacturer specifications for secure fitment
- Inspect brake pads and hardware during rotor replacement for optimal performance
- Follow vehicle-specific service manual instructions for parking brake adjustment
Quality Assurance and Warranty
Raybestos rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The Element3; Coated Rotor 580380FZN undergoes rigorous quality control to ensure consistent performance and durability. Warranty coverage details should be confirmed through Raybestos or authorized distributors, as terms may vary by application and region.
| Brand | Raybestos |
|---|---|
| Part Number | 580380FZN |
| Position | Element3; Coated Rotor, Rear |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 1.083 |
| Discard Thickness | 27.500 |
| Mounting Bolt Hole Circle Diameter | 6.500 |
| Mounting Bolt Hole Circle Diameter | 165.100 |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.147 |
| Nominal Thickness | 29.150 |
| Outside Diameter | 12.989 |
| Outside Diameter | 329.900 |
| Overall Height | 3.416 |
| Overall Height | 86.750 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
This part fits 85 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Fuel Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2025 | Chevrolet | Express 3500 | Cutaway Van | 6.6L | V8 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | |||
| 2025 | GMC | Savana 2500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2025 | GMC | Savana 3500 | Standard Passenger Van | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | |||||
| 2024 | Chevrolet | Express 2500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2024 | Chevrolet | Express 3500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2024 | GMC | Savana 2500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2024 | GMC | Savana 3500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2023 | Chevrolet | Express 2500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2023 | Chevrolet | Express 3500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2023 | GMC | Savana 2500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2023 | GMC | Savana 3500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2022 | Chevrolet | Express 2500 | Rear | Element3; Coated Rotor | ||||||
| 2022 | Chevrolet | Express 3500 | Rear | SRW; Element3; Coated Rotor | ||||||
| 2022 | GMC | Savana 2500 | Rear | Element3; Coated Rotor | ||||||
| 2022 | GMC | Savana 3500 | Rear | SRW; Element3; Coated Rotor | ||||||
| 2021 | Chevrolet | Express 2500 | Rear | Element3; Coated Rotor | ||||||
| 2021 | Chevrolet | Express 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2021 | GMC | Savana 2500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2021 | GMC | Savana 3500 | Rear | with Single Rear Wheels (SRW); Raybestos Element 3 | ||||||
| 2020 | Chevrolet | Express 2500 | Rear | Element3; Coated Rotor | ||||||
| 2020 | Chevrolet | Express 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2020 | GMC | Savana 2500 | Rear | Element3; Coated Rotor | ||||||
| 2020 | GMC | Savana 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2019 | Chevrolet | Express 2500 | Rear | Element3; Coated Rotor | ||||||
| 2019 | Chevrolet | Express 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2019 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2019 | GMC | Savana 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2018 | Chevrolet | Express 2500 | Rear | Element3; Coated Rotor | ||||||
| 2018 | Chevrolet | Express 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2018 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2018 | GMC | Savana 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2017 | Chevrolet | Express 2500 | Rear | Element3; Coated Rotor | ||||||
| 2017 | Chevrolet | Express 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2017 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2017 | GMC | Savana 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2016 | Chevrolet | Express 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2016 | Chevrolet | Express 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2016 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2016 | GMC | Savana 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2015 | Chevrolet | Express 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2015 | Chevrolet | Express 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2015 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2015 | GMC | Savana 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2014 | Chevrolet | Express 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2014 | Chevrolet | Express 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2014 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2014 | GMC | Savana 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2013 | Chevrolet | Express 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2013 | Chevrolet | Express 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2013 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2013 | GMC | Savana 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2012 | Chevrolet | Express 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2012 | Chevrolet | Express 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2012 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2012 | GMC | Savana 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2011 | Chevrolet | Express 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2011 | Chevrolet | Express 3500 | Rear | w/ RPO Code GU6; Except RPO Code G80 Limited Slip Rear Axle; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2011 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2011 | GMC | Savana 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2010 | Chevrolet | Express 3500 | Rear | RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2010 | GMC | Savana 3500 | Rear | w/ RPO Code GU6; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2009 | Chevrolet | Express 2500 | 6.0L | V8 | Rear | w/ Electronic Stability Control; Element3; Coated Rotor | ||||
| 2009 | Chevrolet | Express 2500 | 4.8L | V8 | Rear | w/ Electronic Stability Control; Element3; Coated Rotor | ||||
| 2009 | Chevrolet | Express 3500 | Standard Cargo Van | 4.8L | V8 | Rear | Element3; Coated Rotor | |||
| 2009 | Chevrolet | Express 3500 | Base | Standard Cargo Van | 6.0L | V8 | Rear | Element3; Coated Rotor | ||
| 2009 | Chevrolet | Express 3500 | LS | 6.0L | V8 | Rear | Element3; Coated Rotor | |||
| 2009 | Chevrolet | Express 3500 | LT | 6.0L | V8 | Rear | Element3; Coated Rotor | |||
| 2009 | Chevrolet | Express 3500 | Cutaway Van | 4.8L | V8 | 139.0" | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||
| 2009 | Chevrolet | Express 3500 | Base | Cutaway Van | 6.0L | V8 | 139.0" | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | |
| 2009 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2009 | GMC | Savana 3500 | GAS | Rear | Disc Brake Pad Wear Sensor for rotor diameter of 330mm.; Element3; Coated Rotor | |||||
| 2008 | Chevrolet | Express 2500 | 6.0L | V8 | Rear | w/ Electronic Stability Control; Element3; Coated Rotor | ||||
| 2008 | Chevrolet | Express 2500 | 4.8L | V8 | Rear | w/ Electronic Stability Control; Element3; Coated Rotor | ||||
| 2008 | Chevrolet | Express 3500 | Cutaway Van | Rear | Except RPO Code G80 Limited Slip Rear Axle; w/ 3.41" Overall Rotor Height; with Single Rear Wheels (SRW); Element3; Coated Rotor | |||||
| 2008 | GMC | Savana 2500 | Rear | RPO Code GU6; Element3; Coated Rotor | ||||||
| 2008 | GMC | Savana 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2007 | Chevrolet | Express 3500 | Cutaway Van | Rear | Except RPO Code G80 Limited Slip Rear Axle; w/ 3.41" Overall Rotor Height; with Single Rear Wheels (SRW); Element3; Coated Rotor | |||||
| 2007 | GMC | Savana 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2007 | GMC | Savana 3500 | Standard Cargo Van | Rear | Element3; Coated Rotor | |||||
| 2006 | Chevrolet | Express 3500 | Cutaway Van | Rear | Except RPO Code G80 Limited Slip Rear Axle; w/ 3.41" Overall Rotor Height; with Single Rear Wheels (SRW); Element3; Coated Rotor | |||||
| 2006 | Chevrolet | Express 3500 | Standard Cargo Van | GAS | Rear | Fits vehicles with dual rear wheels.; Element3; Coated Rotor | ||||
| 2006 | Chevrolet | Express 3500 | Extended Cargo Van | GAS | Rear | Fits vehicles with dual rear wheels.; Element3; Coated Rotor | ||||
| 2006 | GMC | Savana 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2005 | Chevrolet | Express 3500 | Rear | 4.63" Center Hole; with Single Rear Wheels (SRW); Element3; Coated Rotor | ||||||
| 2005 | GMC | Savana 3500 | Rear | Fitment: For vehicles equipped with Single Rear Wheels (SRW); Element3; Coated Rotor |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
14-5512015127537177-092832628655120580380580380FZN580380R580380RGS6621054AX900562BD126536BD126536EBR55120BR900562BR90056202PRT5875PS900562
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
