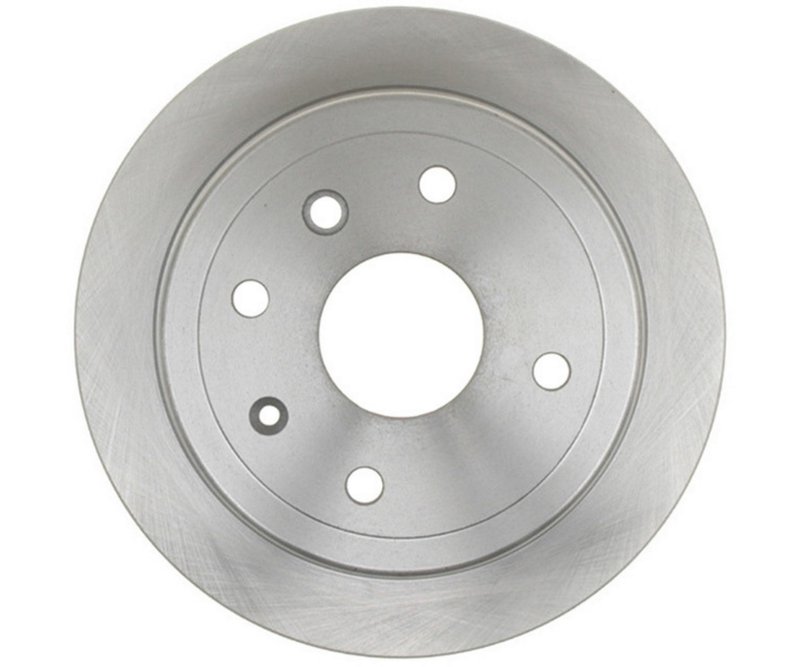

Raybestos 580409R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 580409R

The Raybestos R-Line Disc Brake Rotor 580409R is engineered for reliable braking performance on Suzuki Forenza vehicles. Designed as a solid, drum-in-hat type rotor, this part meets specific thickness and dimension requirements to ensure proper fit and function.

• Compatible with Suzuki Forenza models
• Part number 580409R for precise identification
• Solid disc brake rotor with drum-in-hat design
• Nominal thickness of 0.410 inches (10.400 mm)
• Discard thickness at 0.394 inches (10.000 mm)
• Overall height of 2.252 inches (57.200 mm)
• Outside diameter of 10.150 inches (257.800 mm)
• Mounting bolt hole quantity: 4 with 114.3 mm (4.500 inches) bolt circle diameter
• Stud/lug hole quantity: 4

Detailed Product Description

This Raybestos R-Line disc brake rotor, part number 580409R, is specifically designed for Suzuki Forenza vehicles requiring a solid rotor with a drum-in-hat configuration. The rotor features a nominal thickness of 0.410 inches (10.400 mm) and a discard thickness of 0.394 inches (10.000 mm), ensuring it meets OEM specifications for safe and effective braking. The overall height measures 2.252 inches (57.200 mm), and the outside diameter is 10.150 inches (257.800 mm), providing the correct fitment for the vehicle's braking system. The rotor includes four mounting bolt holes arranged on a 114.3 mm (4.500 inches) bolt circle diameter, matching the Suzuki Forenza's hub assembly requirements.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components designed to meet or exceed factory specifications. This line emphasizes precise fitment and consistent performance, making it suitable for drivers who require dependable replacement parts for their vehicles. The 580409R rotor exemplifies the R-Line's commitment to quality and compatibility with specific vehicle models like the Suzuki Forenza.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Suzuki Forenza
• Restores proper braking performance and pedal feel
• Eliminates brake noise caused by uneven rotor surfaces
• Prevents brake pulsation due to rotor thickness variation
• Ensures safe braking by maintaining correct rotor dimensions

Installation Notes and Tips

• Verify rotor thickness before installation; do not install below discard thickness of 0.394 inches
• Ensure mounting surfaces are clean and free of debris for proper rotor seating
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and hardware during rotor replacement for optimal system performance

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring durability and consistent braking performance. While specific warranty details for part number 580409R should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship.
