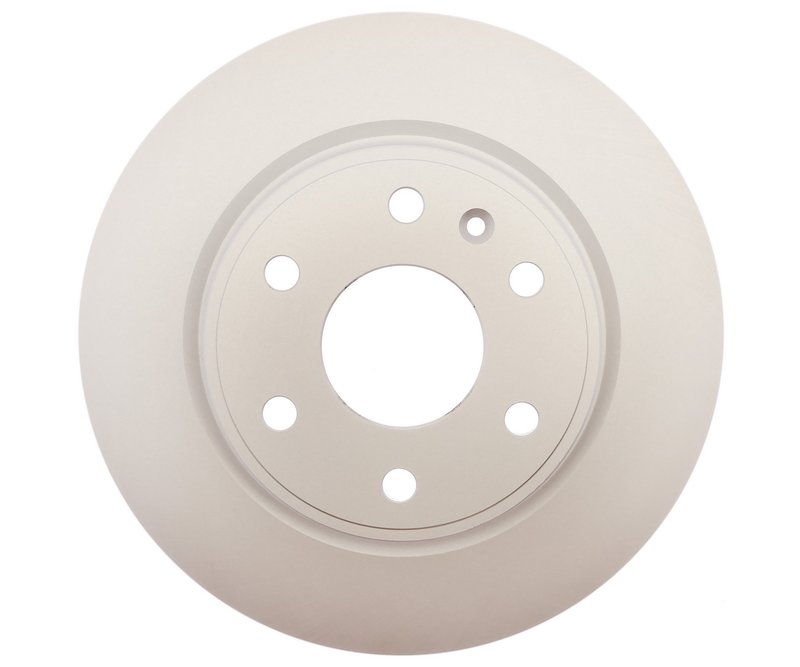

Raybestos 580560FZN Disc Brake Rotor - Front

Overview of Raybestos Element3 Coated Rotor 580560FZN

The Raybestos Element3; Coated Rotor 580560FZN is engineered for reliable braking performance on select Buick, Chevrolet, GMC, and Saturn vehicles. Designed specifically for models like the Acadia, Acadia Limited, Enclave, Outlook, and Traverse, this vented disc brake rotor offers precise fitment and durability.

• Compatible with Buick Acadia, Acadia Limited, Chevrolet Traverse, GMC Acadia, Saturn Outlook, and Enclave
• Part number 580560FZN ensures exact replacement fit
• Vented rotor design for improved heat dissipation
• Coated surface to resist corrosion and extend rotor life
• 6 mounting bolt holes and 6 stud/lug holes for secure installation
• Nominal thickness of 1.142 inches (29.000 mm) with discard thickness at 1.083 inches (27.500 mm)
• Overall height of 2.146 inches (54.500 mm) and outside diameter of 12.795 inches (325.000 mm)
• Center hole diameter of 2.976 inches (75.600 mm) and mounting bolt hole circle diameter of 5.197 inches (132.000 mm)

Raybestos Element3; Coated Rotor Product Line Details

The Element3; Coated Rotor line from Raybestos focuses on providing rotors with a protective coating that helps prevent rust and corrosion, which can degrade braking performance over time. This coating extends the rotor’s service life while maintaining consistent braking efficiency. The vented design of the 580560FZN rotor enhances heat dissipation, reducing the risk of brake fade during extended use, making it suitable for the specified Buick, Chevrolet, GMC, and Saturn models.

Technical Specifications and Features

This disc brake rotor features a vented design to improve airflow and cooling during braking. The nominal thickness of 1.142 inches (29.000 mm) ensures structural integrity, while the discard thickness of 1.083 inches (27.500 mm) indicates when the rotor should be replaced to maintain safe braking performance. The rotor’s overall height is 2.146 inches (54.500 mm), with an outside diameter of 12.795 inches (325.000 mm), matching OEM specifications for proper fitment. The 6 mounting bolt holes and 6 stud/lug holes provide secure attachment to the vehicle’s hub assembly. The center hole diameter of 2.976 inches (75.600 mm) and mounting bolt hole circle diameter of 5.197 inches (132.000 mm) ensure compatibility with the specified vehicle models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion and surface rust that reduce braking efficiency
• Improving heat dissipation to prevent brake fade during heavy use
• Restoring proper rotor thickness for safe braking performance
• Ensuring secure fitment on Buick Acadia, Chevrolet Traverse, GMC Acadia, Saturn Outlook, and Enclave models

Installation Notes and Tips

When installing the Raybestos Element3; Coated Rotor 580560FZN, ensure the rotor surface is clean and free of debris before mounting. Verify that the mounting bolt holes and stud/lug holes align correctly with the vehicle hub. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Check rotor thickness with a micrometer to confirm it meets or exceeds the nominal thickness and is above the discard thickness limit. Proper torque specifications should be followed for mounting bolts to avoid rotor warping.

Quality Assurance and Warranty

Raybestos rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The Element3; Coated Rotor line includes a protective coating to resist corrosion and extend rotor life. While specific warranty details for part number 580560FZN should be confirmed with the retailer or manufacturer, Raybestos typically offers limited warranties covering defects in materials and workmanship.
