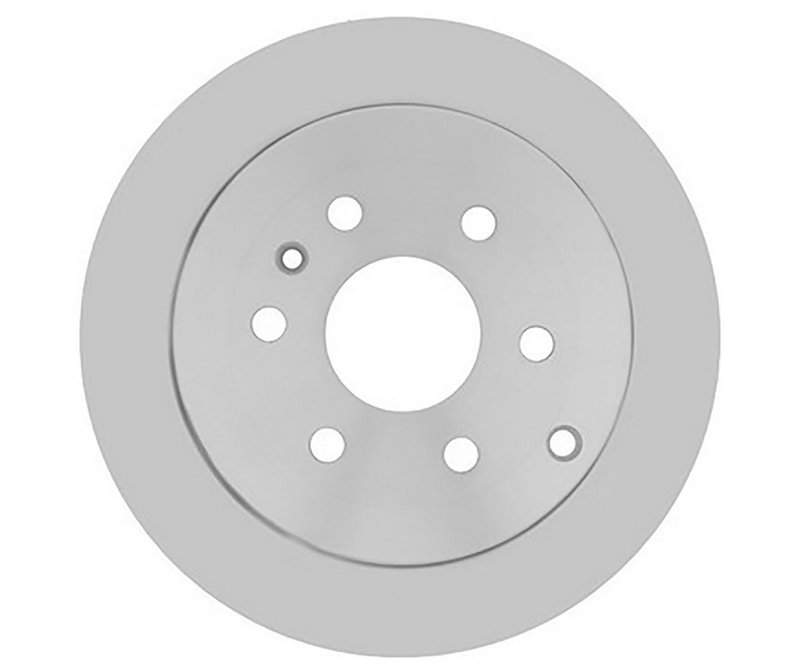

Raybestos 580569FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor 580569FZN

The Raybestos Element3; Coated Rotor 580569FZN is engineered for reliable braking performance on select Buick, Chevrolet, GMC, and Saturn vehicles. Designed as a vented disc brake rotor with drum-in-hat configuration, this rotor meets specific fitment requirements for models like the Acadia, Enclave, Outlook, and Traverse.

• Vented disc brake rotor with drum-in-hat design
• Overall height: 2.102 inches (53.4 mm)
• Outside diameter: 13.031 inches (331 mm)
• Nominal thickness: 0.787 inches (20 mm)
• Discard thickness: 0.724 inches (18.4 mm)
• Mounting bolt hole quantity: 6 with 5.197 inch (132 mm) bolt circle diameter
• Center hole diameter: 2.976 inches (75.6 mm)
• Stud/lug hole quantity: 6

Product Line Details: Element3; Coated Rotor

The Element3; Coated Rotor line by Raybestos focuses on providing rotors with a protective coating to resist corrosion and extend service life. This coating helps maintain rotor integrity under various driving conditions, making it suitable for vehicles like the Buick Enclave and Chevrolet Traverse. The 580569FZN part benefits from this coating, ensuring consistent braking performance and durability.

Technical Specifications and Features

This vented rotor features a drum-in-hat design, combining the benefits of disc braking with integrated drum parking brake functionality. The rotor’s nominal thickness of 0.787 inches (20 mm) and discard thickness of 0.724 inches (18.4 mm) provide clear service limits for maintenance. The 6 mounting bolt holes on a 5.197 inch (132 mm) bolt circle diameter ensure precise fitment on compatible vehicles. The overall height of 2.102 inches (53.4 mm) and outside diameter of 13.031 inches (331 mm) align with factory specifications for the listed Buick, Chevrolet, GMC, and Saturn models.

Compatible Vehicles and Applications

• Buick Acadia and Acadia Limited
• Buick Enclave
• Chevrolet Traverse
• GMC Acadia
• Saturn Outlook

This rotor is designed to replace factory disc brake rotors on these vehicles, addressing issues such as brake fade, rotor warping, and uneven wear.

Common Issues Addressed by This Rotor

• Brake rotor warping causing vibration during braking
• Excessive rotor wear beyond discard thickness
• Corrosion and rust buildup reducing braking efficiency
• Uneven rotor surface leading to brake noise
• Failure of integrated drum-in-hat parking brake function

Installation Notes and Tips

Ensure the rotor is installed on vehicles matching the specified bolt pattern and dimensions. Clean the hub surface before installation to prevent runout. Use proper torque specifications on the 6 mounting bolts to avoid rotor distortion. Verify the drum-in-hat parking brake components are compatible and properly adjusted after installation. It is recommended to replace brake pads simultaneously for optimal braking performance.

Quality Assurance and Warranty

Raybestos rotors, including the Element3; Coated Rotor 580569FZN, are manufactured to meet or exceed OEM standards. The protective coating helps resist corrosion and extends rotor life. While specific warranty details are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
