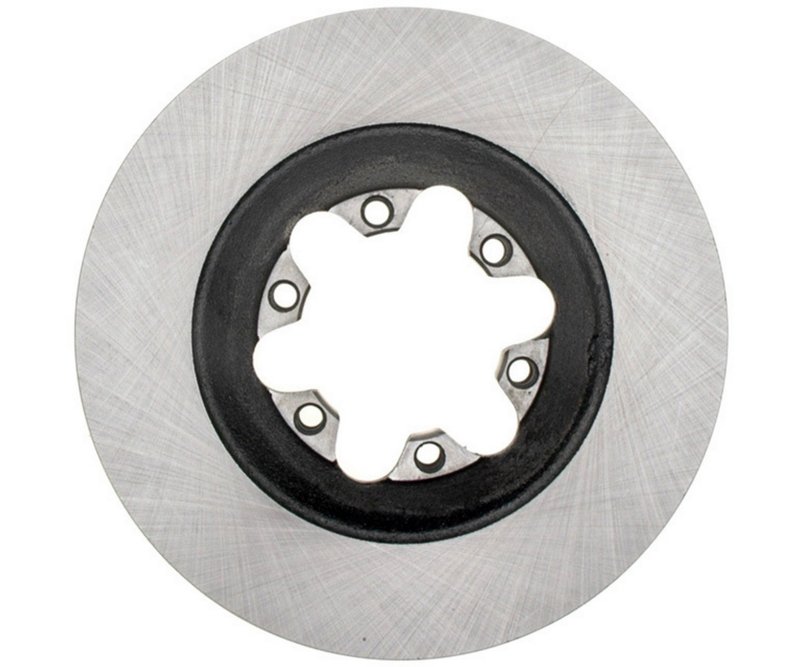

Raybestos 580709R Disc Brake Rotor - Front
| Brand | Raybestos 580709R |
|---|---|
| Position | Front |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.080 |
| Discard Thickness | 27.450 |
| Mounting Bolt Hole Circle Diameter | 4.410 |
| Mounting Bolt Hole Circle Diameter | 112.000 |
| Mounting Bolt Hole Diameter | 4.410 |
| Mounting Bolt Hole Diameter | 112.000 |
| Nominal Thickness | 1.140 |
| Nominal Thickness | 28.950 |
| Product line | R-Line |
| Fits | Chevrolet and GMC · 8 vehicles |
Conventional rotor. A straightforward disc brake rotor for standard replacement needs.
R-Line part. Part of Raybestos' value-focused line for dependable braking performance.
Cross-references Bosch 25011458, Carlson 41244 and Centric Parts 120.66072 for the same application. See all 32.
Raybestos R-Line Front Brake Rotor
The Raybestos R-Line 580709R is a conventional disc brake rotor for front axle applications on select Chevrolet Colorado and GMC Canyon models. It is built around the key dimensions needed for proper brake service, including nominal thickness, discard thickness, and the correct 112 mm bolt circle.
For shoppers searching for a front brake rotor for 2009-2012 Chevrolet Colorado or 2009-2012 GMC Canyon, this Raybestos rotor provides a direct-fit replacement option in the R-Line product line. The 580709R part number is also useful when cross-checking brake rotor replacements by OE-style dimensions and vehicle fitment.
Key Features
- Part number: 580709R
- Raybestos R-Line disc brake rotor
- Front position application
- Conventional rotor design
- Nominal thickness: 1.140 in. / 28.950 mm
- Discard thickness: 1.080 in. / 27.450 mm
- Mounting bolt hole circle diameter: 112.000 mm / 4.410 in.
- Mounting bolt hole diameter: 112.000 mm / 4.410 in.
R-Line Product Line
Raybestos R-Line covers everyday brake service needs with replacement components built to match the application requirements of common passenger vehicles and light trucks. In this case, the 580709R is a conventional front rotor sized for the Chevrolet Colorado and GMC Canyon platforms listed below.
Detailed Description
Use the Raybestos 580709R when replacing a worn front brake rotor on 2009-2012 Chevrolet Colorado or 2009-2012 GMC Canyon models. The rotor’s nominal and discard thickness specifications help confirm service limits during brake inspection, while the 112 mm bolt circle supports correct wheel hub mounting. This part cross-references Bosch 25011458 for the same application.
What It Is Used For
- Replacing a front rotor that is below service thickness
- Correcting brake pulsation caused by rotor wear or variation
- Restoring braking surface condition during front brake service
- Addressing scoring, rust buildup, or heat-related wear on the rotor face
- Supporting brake maintenance on Chevrolet Colorado and GMC Canyon front axle applications
Installation Notes and Tips
Verify rotor thickness before installation and compare it to the discard thickness specification. Clean the hub mounting surface before installing the rotor to help ensure proper seating and minimize runout concerns. Confirm front axle fitment for your specific 2009-2012 Chevrolet Colorado or 2009-2012 GMC Canyon before ordering the Raybestos 580709R.
Quality Assurance
Raybestos is a recognized brake parts brand with application-specific replacement components. This rotor is identified by published dimensional specifications and vehicle fitment data for front brake service on the listed Colorado and Canyon models.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Chevrolet | Colorado | Front | R-Line |
| 2012 | GMC | Canyon | Front | R-Line |
| 2011 | Chevrolet | Colorado | Front | R-Line |
| 2011 | GMC | Canyon | Front | R-Line |
| 2010 | Chevrolet | Colorado | Front | R-Line |
| 2010 | GMC | Canyon | Front | R-Line |
| 2009 | Chevrolet | Colorado | Front | R-Line |
| 2009 | GMC | Canyon | Front | R-Line |
| No rows match your filter. | ||||
