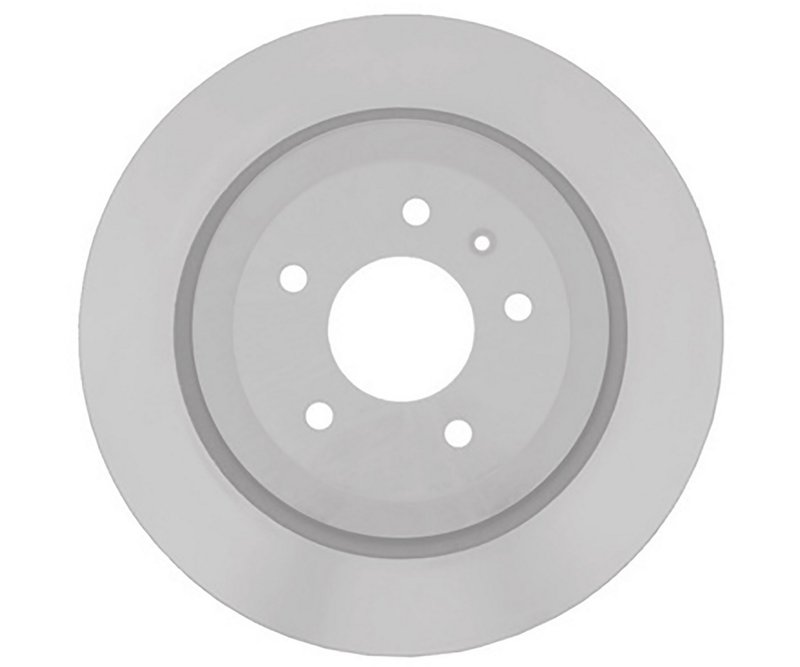

Raybestos 580713FZN Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Cadillac CTS and STS

The Raybestos Element3; Coated Rotor 580713FZN is engineered to meet the braking demands of Cadillac CTS and STS models. Designed as a vented, conventional disc brake rotor, it offers consistent performance and durability for your vehicle's braking system.

• Compatible with Cadillac CTS and STS models
• Part number 580713FZN for precise identification
• Vented rotor design for improved heat dissipation
• Coated surface to resist corrosion and extend rotor life
• 5 mounting bolt holes with a 115 mm bolt circle diameter
• Nominal thickness of 1.024 inches (26.000 mm) and discard thickness of 0.945 inches (24.000 mm)
• Overall height of 1.890 inches (48.000 mm) and outside diameter of 12.598 inches (320.000 mm)
• Smooth surface type for consistent pad contact

Detailed Specifications and Features

This Raybestos disc brake rotor features a vented design that enhances cooling during braking, reducing the risk of brake fade. The rotor's nominal thickness is 1.024 inches (26.000 mm), with a discard thickness of 0.945 inches (24.000 mm), ensuring safe replacement intervals. Its overall height measures 1.890 inches (48.000 mm), and the outside diameter is 12.598 inches (320.000 mm), matching factory specifications for Cadillac CTS and STS vehicles. The rotor includes five mounting bolt holes arranged on a 115 mm bolt circle diameter, with each hole measuring 0.511 inches (13.000 mm) in diameter. The smooth surface type promotes even brake pad wear and reliable stopping power.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos is designed to provide enhanced corrosion resistance through a protective coating, which helps maintain rotor integrity and appearance over time. This coating also aids in reducing brake noise and vibration. The 580713FZN rotor benefits from this technology, making it a suitable replacement part for maintaining the braking performance and longevity of Cadillac CTS and STS models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor corrosion that affects braking efficiency
• Improving heat dissipation to reduce brake fade during heavy use
• Restoring proper rotor thickness for safe braking performance
• Ensuring compatibility with factory mounting specifications on Cadillac CTS and STS

Installation Notes and Tips

When installing the Raybestos 580713FZN rotor, ensure the mounting surface is clean and free of debris to prevent uneven rotor seating. Verify the rotor thickness before installation to confirm it meets or exceeds the discard thickness specification of 0.945 inches (24.000 mm). Use proper torque settings on the five mounting bolts arranged on the 115 mm bolt circle diameter to secure the rotor. It is recommended to replace brake pads simultaneously to optimize braking performance and rotor life.

Quality Assurance and Warranty

Raybestos disc brake rotors undergo rigorous quality control to meet OEM standards for fit, form, and function. The Element3; Coated Rotor 580713FZN is manufactured to provide consistent braking performance and durability. Warranty coverage details should be confirmed with the product documentation or manufacturer, as they may vary by region and application.
