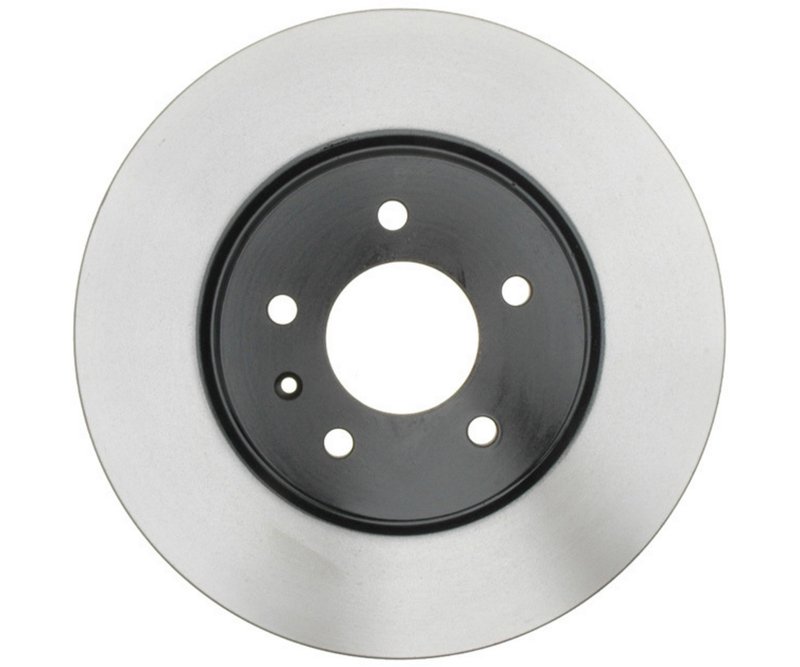

Raybestos 580714 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Street Performance Rotor

The Raybestos Specialty - Street Performance disc brake rotor 580714 is engineered for Cadillac STS models requiring reliable braking performance. This vented rotor offers precise dimensions and smooth surface finish to maintain consistent stopping power under street driving conditions.

• Compatible with Cadillac STS vehicles
• Part number 580714 for exact fitment
• Vented disc brake rotor design for improved heat dissipation
• Smooth surface type for consistent pad contact
• Conventional rotor with 5 mounting bolt holes
• Nominal thickness of 1.184 inches (30.050 mm)
• Discard thickness at 1.122 inches (28.500 mm)
• Outside diameter of 12.439 inches (315.950 mm)
• Inside diameter of 7.482 inches (190.050 mm)
• Overall height of 2.010 inches (51.050 mm)
• Center hole diameter of 2.783 inches (70.700 mm)
• Mounting bolt hole circle diameter of 4.528 inches (115.000 mm)
• Mounting bolt hole diameter of 0.509 inches (12.950 mm)

Details on Raybestos Specialty - Street Performance Brake Rotors

The Specialty - Street Performance line by Raybestos is designed to meet the demands of street-driven vehicles like the Cadillac STS. This rotor features a vented design that helps dissipate heat more effectively than solid rotors, reducing the risk of brake fade during extended use. The smooth surface finish ensures even pad wear and consistent braking feel. With a conventional rotor style and precise bolt pattern, part number 580714 installs directly onto the vehicle without modification. The rotor’s nominal thickness of 1.184 inches and discard thickness of 1.122 inches provide a clear service life indicator to maintain safe braking performance.

Applications and Problem Solving

• Replacement for worn or warped rotors on Cadillac STS
• Improves heat dissipation to reduce brake fade during street driving
• Restores smooth braking performance and pedal feel
• Addresses rotor thickness below manufacturer specifications
• Compatible with vehicles requiring 5 lug mounting bolt pattern

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surface to prevent rotor runout
• Torque mounting bolts to manufacturer specifications
• Inspect brake pads for wear and replace if necessary
• Perform a bed-in procedure after installation for optimal performance

Quality Assurance and Warranty

Raybestos Specialty - Street Performance rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The vented rotor design and precise machining contribute to consistent braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
