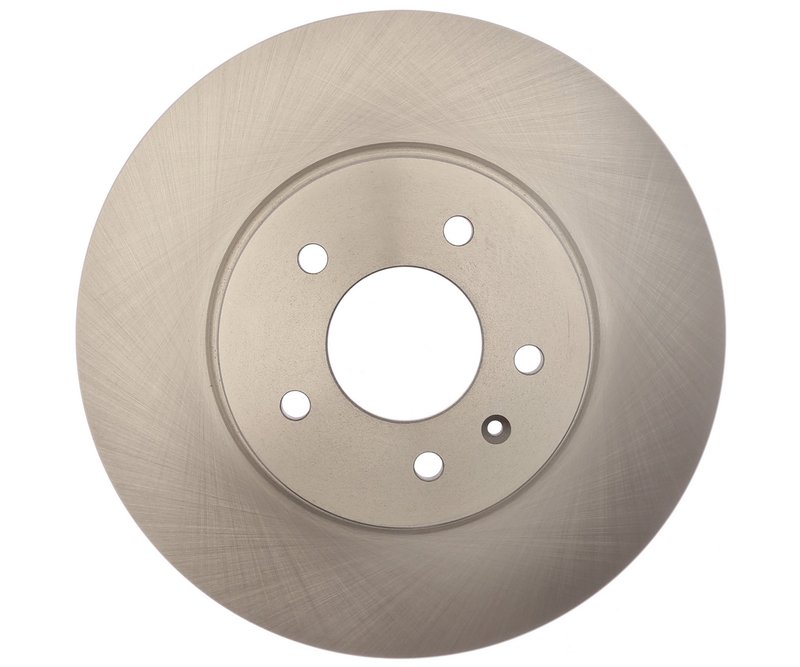

Raybestos 580714R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 580714R

The Raybestos R-Line Disc Brake Rotor 580714R is engineered for precise fitment on Cadillac STS models. Designed as a vented, conventional rotor, it offers reliable braking performance with specifications tailored to maintain vehicle safety and handling.

• Compatible with Cadillac STS
• Part Number: 580714R
• Vented disc brake rotor for improved heat dissipation
• Overall diameter: 315.95 mm (12.439 inches)
• Nominal thickness: 30.05 mm (1.184 inches)
• Discard thickness: 28.5 mm (1.122 inches)
• Mounting bolt hole quantity: 5 with 115 mm bolt circle diameter
• Smooth surface type for consistent pad contact
• Center hole diameter: 70.7 mm (2.783 inches)

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable brake components that meet or exceed OEM specifications. This product line emphasizes durability and consistent performance, making it suitable for drivers who require reliable replacement parts for their Cadillac STS. The 580714R rotor is part of this line, ensuring compatibility and quality aligned with Raybestos standards.

Technical Specifications and Features

This disc brake rotor features a vented design to enhance cooling during braking, reducing the risk of brake fade. The rotor's overall height measures 51.05 mm (2.010 inches), and it includes five mounting bolt holes with a 12.95 mm diameter, arranged on a 115 mm bolt circle. The smooth surface finish supports even brake pad wear and consistent stopping power. The nominal thickness of 30.05 mm ensures structural integrity, while the discard thickness of 28.5 mm indicates the minimum safe thickness for replacement.

Applications and Problem Solving

• Replacement for worn or warped rotors on Cadillac STS
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during heavy use
• Restores proper braking performance and pedal feel
• Compatible with vehicles requiring a 5-bolt mounting pattern and specific rotor dimensions

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean mounting surfaces to prevent rotor runout
• Torque mounting bolts to manufacturer specifications
• Inspect brake pads for wear and replace if necessary
• Perform a bed-in procedure after installation for optimal performance

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 580714R should be confirmed with the supplier, Raybestos typically offers coverage against defects in materials and workmanship. This rotor is designed to provide reliable service life when installed and maintained according to vehicle manufacturer guidelines.
