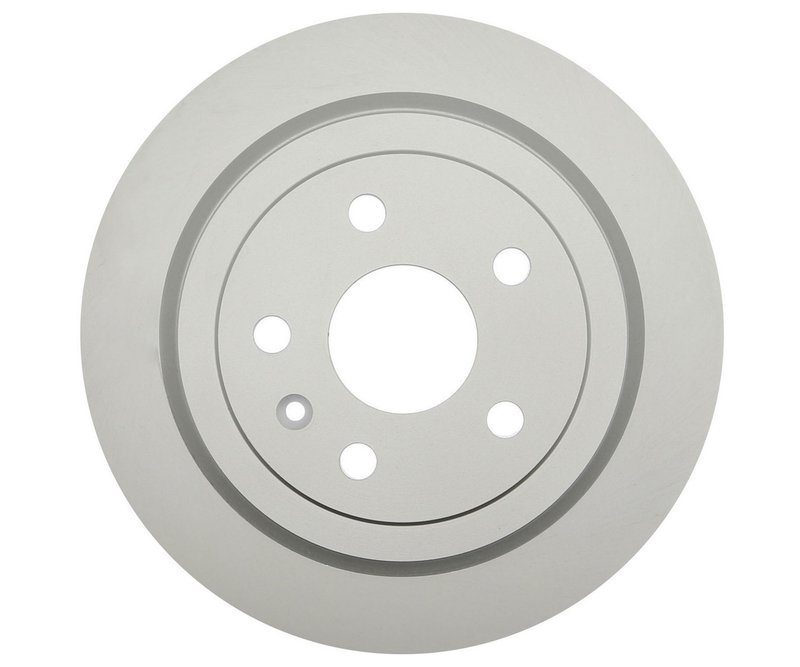

Raybestos 580722FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor 580722FZN

The Raybestos Element3; Coated Rotor 580722FZN is engineered for reliable braking performance on select Cadillac and Chevrolet vehicles. Designed as a vented, drum-in-hat disc brake rotor, it offers durability and consistent stopping power for models like the Cadillac CTS and Chevrolet Camaro.

• Part Number: 580722FZN
• Compatible with Cadillac CTS and Chevrolet Camaro
• Vented disc brake rotor with drum-in-hat design
• Full cast construction with smooth surface finish
• Nominal thickness: 0.906 inches (23.000 mm)
• Discard thickness: 0.846 inches (21.500 mm)
• Outside diameter: 12.402 inches (315.000 mm)
• Inside diameter: 9.177 inches (233.100 mm)
• Overall height: 1.890 inches (48.000 mm)
• Mounting bolt pattern: 5 lug holes, 0.645 inch (16.400 mm) diameter

Detailed Product Description and Specifications

This Raybestos disc brake rotor features a full cast construction that ensures structural integrity and heat dissipation during braking. The vented design improves airflow to reduce rotor temperature, helping to maintain consistent brake performance under demanding conditions. The smooth surface finish supports even pad wear and quiet operation. With a drum-in-hat configuration, this rotor integrates a drum brake surface for rear parking brake functionality, making it suitable for vehicles equipped with this system.

Key dimensions include a nominal thickness of 0.906 inches (23.000 mm) and a discard thickness of 0.846 inches (21.500 mm), which define the rotor’s usable lifespan. The outside diameter measures 12.402 inches (315.000 mm), while the inside diameter is 9.177 inches (233.100 mm). The rotor’s overall height is 1.890 inches (48.000 mm), and it mounts using a 5-lug bolt pattern with 0.645 inch (16.400 mm) diameter holes spaced on a 4.724 inch (120.000 mm) bolt circle diameter.

About the Element3; Coated Rotor Product Line

The Element3; Coated Rotor line by Raybestos is designed to provide enhanced corrosion resistance and extended rotor life through a specialized coating process. This coating helps protect the rotor surface from rust and environmental damage, which is particularly beneficial for vehicles exposed to moisture and road salt. The 580722FZN rotor benefits from this coating, contributing to longer service intervals and maintaining braking efficiency over time.

Applications and Problem Solving

• Replacement rotor for worn or warped disc brake rotors on Cadillac CTS and Chevrolet Camaro
• Addresses brake pulsation caused by uneven rotor surfaces
• Solves noise issues related to rotor surface imperfections
• Restores proper braking performance and pedal feel
• Supports rear parking brake function with drum-in-hat design

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.846 inches) before installation
• Clean mounting surface to prevent rotor runout and vibration
• Use proper torque specifications for 5-lug mounting bolts
• Inspect brake pads and replace if worn to ensure optimal rotor performance
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor 580722FZN to meet or exceed OEM specifications for fit, form, and function. The full cast, vented rotor construction undergoes rigorous quality control to ensure durability and consistent braking performance. While specific warranty details are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. Verify warranty terms with the supplier or manufacturer documentation.
