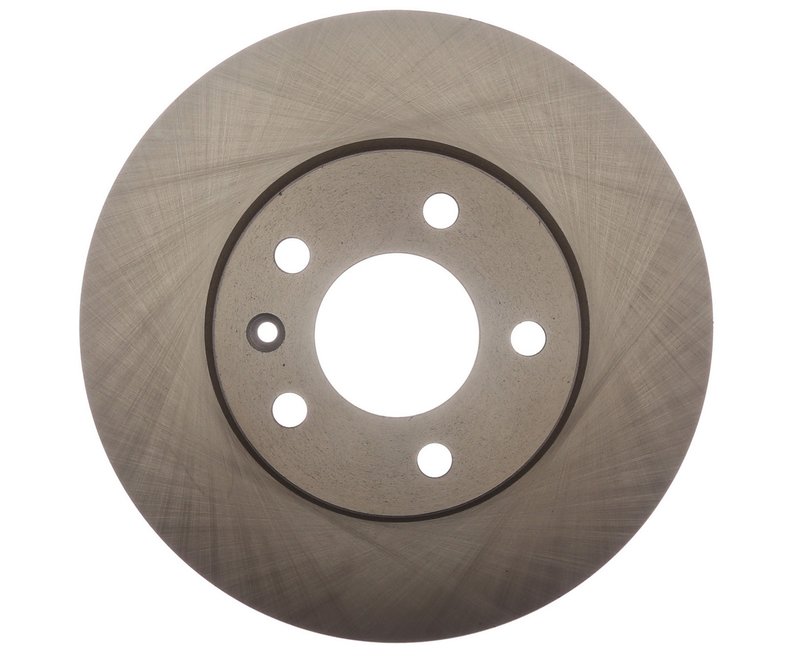

Raybestos 581043R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 581043R

The Raybestos R-Line Disc Brake Rotor 581043R is engineered for reliable braking performance on Cadillac ATS and CT4 models. Designed as a vented, conventional rotor, it offers consistent heat dissipation and durability for everyday driving conditions.

• Compatible with Cadillac ATS and CT4 vehicles
• Vented disc brake rotor design for improved cooling
• Overall height: 2.402 inches (61.000 mm)
• Outside diameter: 11.819 inches (300.200 mm)
• Inside diameter: 7.067 inches (179.500 mm)
• Mounting bolt hole quantity: 5 with 0.566 inch (14.400 mm) diameter
• Smooth surface type for consistent pad contact
• Nominal thickness: 1.024 inches (26.000 mm), discard thickness: 0.906 inches (23.000 mm)

Detailed Product Description

The Raybestos R-Line 581043R disc brake rotor is a vented rotor designed to provide effective heat dissipation during braking, reducing the risk of brake fade. Its conventional drum-in-hat type construction ensures compatibility with the specified Cadillac ATS and CT4 models. The rotor features a smooth surface type that promotes even brake pad wear and consistent braking performance. With an outside diameter of 11.819 inches and an overall height of 2.402 inches, this rotor meets the precise specifications required for proper fitment and function.

The rotor includes five mounting bolt holes arranged in a 4.520 inch (114.800 mm) bolt circle diameter, with each hole measuring 0.566 inches in diameter. The center hole diameter is 2.787 inches (70.800 mm), ensuring proper alignment on the vehicle hub. The nominal thickness of 1.024 inches allows for a substantial braking surface, while the discard thickness of 0.906 inches indicates when the rotor should be replaced to maintain safety and performance.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components designed to meet the demands of daily driving. This line emphasizes precise fitment and consistent performance, making it suitable for vehicles like the Cadillac ATS and CT4. The R-Line rotors are engineered to provide dependable braking without unnecessary complexity, supporting safe and effective stopping power.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Cadillac ATS and CT4
• Resolves brake pulsation caused by uneven rotor surfaces
• Addresses reduced braking efficiency due to rotor thinning
• Improves heat dissipation to prevent brake fade during extended use
• Restores proper rotor dimensions for safe brake pad contact

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (0.906 inches) before installation
• Clean rotor surface to remove any protective coatings or debris
• Verify bolt hole alignment with vehicle hub using the 5-bolt pattern and 4.520 inch bolt circle diameter
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards for fit, form, and function. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in material and workmanship. Using the correct part number 581043R ensures compatibility and adherence to Cadillac ATS and CT4 braking system requirements.
