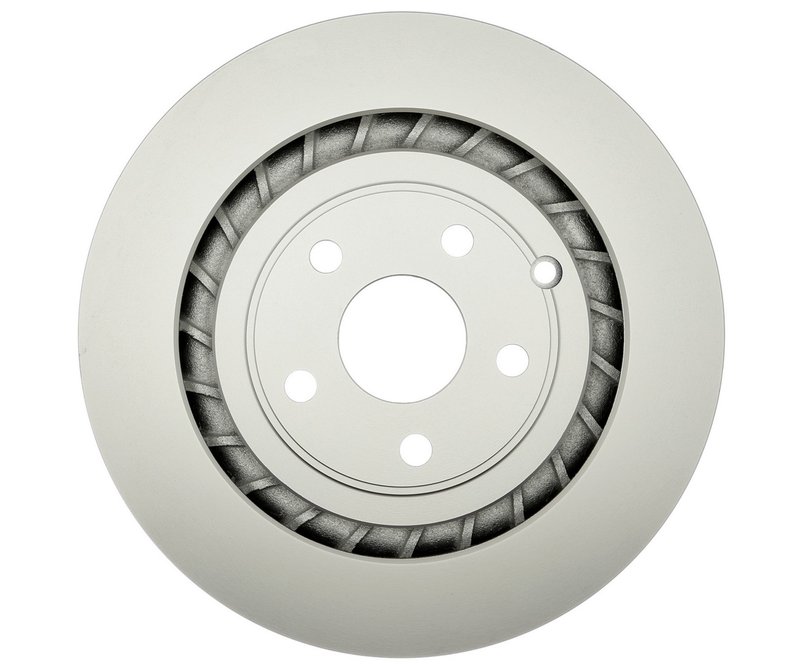

Raybestos 581795 Disc Brake Rotor - Rear

Raybestos Specialty Coated Rotor for Chevrolet SS

The Raybestos Specialty - Street Performance; Coated Rotor (Part Number 581795) is engineered to provide reliable braking performance for Chevrolet SS models. Designed with precision, this vented disc brake rotor offers consistent stopping power and durability under street driving conditions.

• Compatible with Chevrolet SS vehicles
• Vented disc brake rotor design for improved heat dissipation
• Coated surface to resist corrosion and extend rotor life
• Nominal thickness of 1.108 inches (28.150 mm) with discard thickness at 1.024 inches (26.000 mm)
• Overall height of 2.031 inches (51.600 mm) and outside diameter of 14.173 inches (360.000 mm)
• Five mounting bolt holes with a bolt circle diameter of 4.724 inches (120.000 mm)
• Smooth surface type for consistent pad contact

Product Line Details: Specialty - Street Performance; Coated Rotor

The Specialty - Street Performance; Coated Rotor line by Raybestos is designed for street-driven vehicles requiring dependable braking with enhanced rotor protection. The coating helps prevent rust and corrosion, which is especially beneficial for vehicles like the Chevrolet SS that are exposed to varying weather conditions. This rotor line balances performance and longevity, making it suitable for daily driving and spirited street use.

Technical Specifications and Features

This Raybestos disc brake rotor features a vented design that improves airflow and heat dissipation, reducing the risk of brake fade during extended use. The rotor’s nominal thickness is 1.108 inches (28.150 mm), with a discard thickness of 1.024 inches (26.000 mm), ensuring a clear maintenance threshold. The overall height measures 2.031 inches (51.600 mm), and the outside diameter is 14.173 inches (360.000 mm), matching OEM specifications for the Chevrolet SS. The rotor includes five mounting bolt holes with a 4.724-inch (120.000 mm) bolt circle diameter and a center hole diameter of 2.652 inches (67.350 mm), ensuring proper fitment and secure installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Chevrolet SS models
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Helps restore braking performance diminished by rotor corrosion or pitting
• Improves heat management to reduce brake fade during street performance driving
• Prevents premature rotor wear through corrosion-resistant coating

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (1.024 inches) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and replace if worn to maintain optimal braking performance
• Perform a bed-in procedure after installation to maximize rotor and pad contact

Quality Assurance and Warranty

Raybestos rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The Specialty - Street Performance; Coated Rotor line undergoes rigorous quality control to ensure durability and consistent braking performance. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms related to part number 581795.
