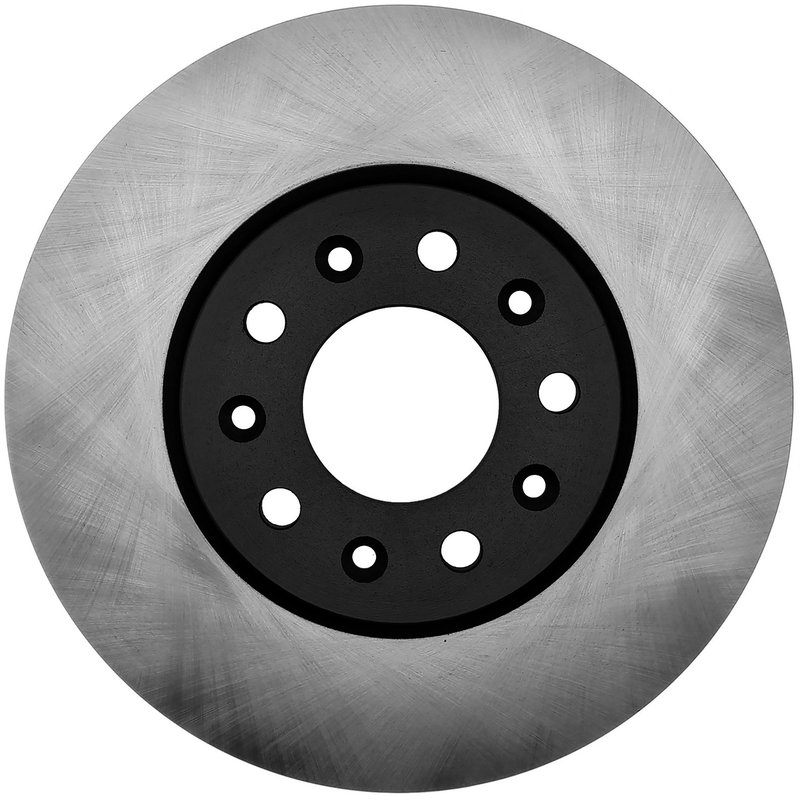

Raybestos 582000R2 Disc Brake Rotor - Front
| Brand | Raybestos 582000R2 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 0.906 |
| Discard Thickness | 23 |
| Nominal Thickness | 1.024 |
| Nominal Thickness | 26 |
| Construction | Full cast |
| Inside Diameter | 179 |
| Inside Diameter | 7.047 |
| Overall Height | 1.791 |
| Overall Height | 45.5 |
| Outside Diameter | 11.811 |
| Outside Diameter | 300 |
| Mounting Bolt Hole Quantity | 5 |
| Grade Type | Regular |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.783 |
| Center Hole Diameter | 70.7 |
| Mounting Bolt Hole Circle Diameter | 115 |
| Mounting Bolt Hole Circle Diameter | 4.528 |
| Mounting Bolt Hole Diameter | 0.551 |
| Mounting Bolt Hole Diameter | 14 |
| Stud/Lug Hole Quantity | 5 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Harmonize Code | 8708.30.5030 |
| Misc. Holes | 1 |
| Salability Restrictions | No |
| Product line | Raybestos R-Line |
| Fits | Buick, Chevrolet, and GMC · 65 vehicles |
OE-style replacement. Raybestos R-Line service rotor for direct brake replacement.
Vented cast iron. Helps manage heat with a full cast rotor design.
Smooth braking surface. Supports even pad contact in everyday service.
Cross-references Centric Parts 120.62132, Centric Parts 121.62132 and Centric Parts 320.62132 for the same application. See all 23.
Overview
Raybestos R-Line disc brake rotor 582000R2 is a front replacement rotor built for a wide range of GM compact and midsize applications. It uses a full cast iron, vented construction with a smooth, non-directional braking surface for consistent service replacement performance.
Compatible With front brake applications on Buick, Chevrolet, and GMC models including Encore GX, Equinox, Malibu, Trailblazer, Trax, and Terrain. Part number 582000R2 is a direct fit for multiple brake-code and rotor-diameter applications across these platforms.
Key Features
- Cast iron, full cast construction for standard rotor service replacement
- Vented design helps manage heat during repeated braking
- Smooth, non-directional surface supports even pad contact
- Conventional rotor design for common front brake applications
- 5-lug mounting pattern with 300 mm outside diameter
Detailed Description
Raybestos R-Line 582000R2 is engineered as a conventional front disc brake rotor with a 300 mm outside diameter, 26 mm nominal thickness, and 23 mm discard thickness. The rotor includes a 5-bolt mounting pattern, 70.7 mm center hole diameter, and a vented internal design, making it a fitment-specific replacement for several Buick, Chevrolet, and GMC platforms. This part number, 582000R2, is used across applications such as the Chevrolet Malibu, Buick Encore GX, and GMC Terrain, along with other listed models and brake-code variants.
Raybestos R-Line focuses on service-grade brake components for everyday repair work. For buyers sourcing a front brake rotor for Buick, Chevrolet, or GMC vehicles, 582000R2 provides the dimensional and construction details needed for direct replacement selection without guesswork.
Common Problems This Rotor Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Reduced braking consistency from a worn front rotor
- Surface scoring that affects pad contact
- Heat buildup in repeated stop-and-go driving
- Rotor replacement needs on brake-code-specific applications
Installation Notes and Tips
Verify rotor diameter, brake code, and hub dimensions before installation. This rotor is listed for front applications only, so match the vehicle’s brake configuration to the fitment table before ordering. Clean the hub mounting surface and inspect pads and caliper hardware during service to help ensure proper rotor seating and braking feel.
Quality Assurance
Raybestos R-Line is a service line from Raybestos, a long-established brake brand used in aftermarket replacement applications. Part number 582000R2 cross-references Raybestos Brakes 582000 and 582000R for the same application.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2025 | Buick | Encore GX | — | — | — | — | Front | Raybestos R-Line |
| 2025 | Buick | Envista | — | — | — | — | Front | Raybestos R-Line |
| 2025 | Chevrolet | Equinox | — | — | — | — | Front | Raybestos R-Line |
| 2025 | Chevrolet | Malibu | — | — | — | — | Front | Raybestos R-Line |
| 2025 | Chevrolet | Trailblazer | — | 1.3L | L3 | — | Front | Raybestos R-Line |
| 2025 | Chevrolet | Trax | — | — | — | — | Front | Raybestos R-Line |
| 2024 | Buick | Encore GX | — | — | — | — | Front | Raybestos R-Line |
| 2024 | Buick | Envista | — | — | — | — | Front | Raybestos R-Line |
| 2024 | Chevrolet | Equinox | — | — | — | — | Front | Raybestos R-Line |
| 2024 | Chevrolet | Malibu | — | — | — | — | Front | Raybestos R-Line |
| 2024 | Chevrolet | Trailblazer | — | 1.3L | L3 | — | Front | Raybestos R-Line |
| 2024 | Chevrolet | Trax | — | — | — | — | Front | Raybestos R-Line |
| 2024 | GMC | Terrain | — | — | — | — | Front | Raybestos R-Line |
| 2023 | Buick | Encore GX | — | — | — | — | Front | Raybestos R-Line |
| 2023 | Chevrolet | Equinox | — | — | — | — | Front | Raybestos R-Line |
| 2023 | Chevrolet | Malibu | — | — | — | — | Front | Raybestos R-Line |
| 2023 | Chevrolet | Trailblazer | — | 1.3L | L3 | — | Front | Raybestos R-Line |
| 2023 | GMC | Terrain | — | — | — | — | Front | Raybestos R-Line |
| 2022 | Buick | Encore GX | — | — | — | — | Front | Raybestos R-Line |
| 2022 | Chevrolet | Equinox | — | — | — | — | Front | Raybestos R-Line |
| 2022 | Chevrolet | Malibu | — | — | — | — | Front | Raybestos R-Line |
| 2022 | Chevrolet | Trailblazer | — | 1.3L | L3 | — | Front | Raybestos R-Line |
| 2022 | GMC | Terrain | — | — | — | — | Front | Raybestos R-Line |
| 2021 | Buick | Encore GX | — | — | — | — | Front | Coated; Raybestos R-Line |
| 2021 | Chevrolet | Equinox | — | — | — | — | Front | Buick Brake Code J60; Raybestos R-Line |
| 2021 | Chevrolet | Malibu | — | — | — | — | Front | Chevrolet Brake Code J60; Raybestos R-Line |
| 2021 | Chevrolet | Trailblazer | — | 1.3L | L3 | — | Front | Coated; Raybestos R-Line |
| 2021 | GMC | Terrain | — | — | — | — | Front | GMC Brake Code J60; Raybestos R-Line |
| 2020 | Buick | Encore GX | — | — | — | — | Front | Raybestos R-Line |
| 2020 | Buick | Regal Sportback | — | 2.0L | L4 | — | Front | Buick Brake Code J60; Raybestos R-Line |
| 2020 | Buick | Regal TourX | — | — | — | — | Front | Buick Brake Code J60; Raybestos R-Line |
| 2020 | Chevrolet | Equinox | FWD | — | — | — | Front | Chevrolet Brake Code J60; Raybestos R-Line |
| 2020 | Chevrolet | Malibu | — | — | — | — | Front | CHEVROLET Brake Code J60; Raybestos R-Line |
| 2020 | GMC | Terrain | FWD | 1.5L | L4 | — | Front | GMC Brake Code J60; Raybestos R-Line |
| 2019 | Buick | LaCrosse | — | 3.6L | V6 | — | Front | Rotor Diameter 16in; Raybestos R-Line |
| 2019 | Buick | Regal Sportback | — | 2.0L | L4 | — | Front | Rotor Diameter 16in; Raybestos R-Line |
| 2019 | Buick | Regal TourX | — | — | — | — | Front | Rotor Diameter 16in; Raybestos R-Line |
| 2019 | Chevrolet | Equinox | — | — | — | — | Front | Chevrolet Brake Code Equinox; Raybestos R-Line |
| 2019 | Chevrolet | Malibu | — | — | — | — | Front | CHEVROLET Brake Code JJ2; Raybestos R-Line |
| 2019 | GMC | Terrain | — | — | — | — | Front | GMC Brake Code J60; Raybestos R-Line |
| 2018 | Buick | LaCrosse | — | 2.5L | L4 | — | Front | Raybestos R-Line |
| 2018 | Buick | Regal Sportback | — | 2.0L | L4 | — | Front | Rotor Diameter 16in; Raybestos R-Line |
| 2018 | Buick | Regal TourX | — | — | — | — | Front | Rotor Diameter 16in; Raybestos R-Line |
| 2018 | Chevrolet | Equinox | — | — | — | — | Front | Buick Brake Code J60; Raybestos R-Line |
| 2018 | Chevrolet | Malibu | — | — | — | — | Front | Raybestos R-Line |
| 2018 | GMC | Terrain | — | — | — | — | Front | Rotor Diameter 300mm; Raybestos R-Line |
| 2017 | Buick | LaCrosse | — | — | — | — | Front | Rotor Diameter 300mm; Raybestos R-Line |
| 2017 | Buick | Verano | — | — | — | — | Front | Raybestos R-Line |
| 2017 | Chevrolet | Malibu | — | — | — | — | Front | Raybestos R-Line |
| 2016 | Buick | Verano | — | — | — | — | Front | Raybestos R-Line |
| 2016 | Chevrolet | Malibu | — | — | — | — | Front | Raybestos R-Line |
| 2015 | Buick | Verano | — | — | — | — | Front | Raybestos R-Line |
| 2015 | Chevrolet | Cruze | — | — | — | DIESEL | Front | 300mm Front Disc; Raybestos R-Line |
| 2015 | Chevrolet | Volt | — | — | — | — | Front | Raybestos R-Line |
| 2014 | Buick | Verano | — | — | — | — | Front | Raybestos R-Line |
| 2014 | Chevrolet | Cruze | — | — | — | DIESEL | Front | 300mm Front Disc; Raybestos R-Line |
| 2014 | Chevrolet | Orlando | — | — | — | — | Front | Raybestos R-Line |
| 2014 | Chevrolet | Volt | — | — | — | — | Front | Raybestos R-Line |
| 2013 | Buick | Verano | — | — | — | — | Front | Raybestos R-Line |
| 2013 | Chevrolet | Orlando | — | — | — | — | Front | Raybestos R-Line |
| 2013 | Chevrolet | Volt | — | — | — | — | Front | Raybestos R-Line |
| 2012 | Buick | Verano | — | — | — | — | Front | Raybestos R-Line |
| 2012 | Chevrolet | Orlando | — | — | — | — | Front | Raybestos R-Line |
| 2012 | Chevrolet | Volt | — | — | — | — | Front | Raybestos R-Line |
| 2011 | Chevrolet | Volt | — | — | — | — | Front | Raybestos R-Line |
