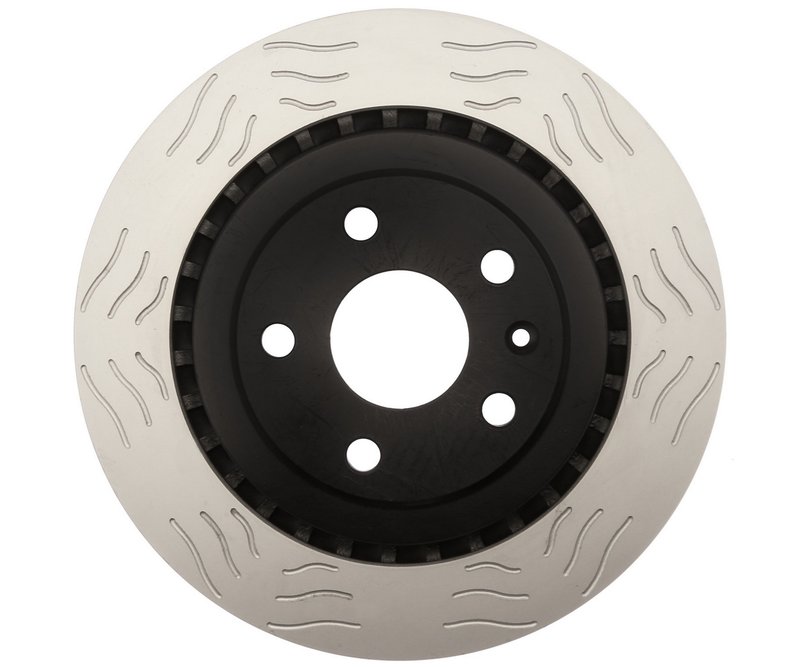

Raybestos 582059PER Disc Brake Rotor - Rear

Overview of Raybestos Disc Brake Rotor 582059PER

The Raybestos Specialty - Street Performance; S-Groove Technology disc brake rotor 582059PER is engineered for reliable braking performance on Cadillac ATS and Chevrolet Camaro models. Designed as a vented, conventional rotor, it offers effective heat dissipation and consistent stopping power for street-driven vehicles.

• Compatible with Cadillac ATS and Chevrolet Camaro
• Vented disc brake rotor for improved cooling
• Overall height: 1.890 inches (48.000 mm)
• Outside diameter: 13.346 inches (339.000 mm)
• Mounting bolt hole quantity: 5 with 0.630 inch (16.000 mm) diameter
• Center hole diameter: 2.657 inches (67.500 mm)
• Nominal thickness: 1.024 inches (26.000 mm)
• Discard thickness: 0.945 inches (24.000 mm)
• Mounting bolt hole circle diameter: 120.000 mm (4.724 inches)
• Stud/lug hole quantity: 5

Specialty - Street Performance; S-Groove Technology Line Details

This rotor is part of the Raybestos Specialty - Street Performance; S-Groove Technology line, which focuses on delivering enhanced street performance through advanced rotor design. The S-Groove pattern helps reduce brake fade and improve pad bite, making it suitable for drivers seeking dependable braking under typical street conditions. This product line balances durability and performance without compromising rotor longevity.

Technical Description and Specifications

The 582059PER disc brake rotor features a vented design that promotes efficient heat dissipation during braking, reducing the risk of warping and maintaining consistent brake feel. With a nominal thickness of 1.024 inches (26.000 mm) and a discard thickness of 0.945 inches (24.000 mm), this rotor meets OEM specifications for thickness tolerances. The overall height of 1.890 inches (48.000 mm) and an outside diameter of 13.346 inches (339.000 mm) ensure proper fitment and compatibility with the specified vehicles. The rotor includes five mounting bolt holes and five stud/lug holes, each with precise measurements to match factory mounting points on Cadillac ATS and Chevrolet Camaro models.

Applications and Problem Solving

• Replacement for worn or warped rotors on Cadillac ATS and Chevrolet Camaro
• Addresses brake fade caused by overheating during street driving
• Resolves uneven rotor wear and vibration issues
• Improves braking consistency and pedal feel
• Suitable for vehicles requiring vented, conventional rotors with 5-lug mounting

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.945 inches (24.000 mm) before installation. Clean the rotor surface to remove any protective coating or debris. Verify that the mounting bolt holes and center hole diameter match the vehicle specifications for proper alignment. Use proper torque specifications for mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to maintain optimal braking performance.

Quality Assurance and Warranty

Raybestos disc brake rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 582059PER rotor undergoes rigorous quality control to ensure durability and consistent performance. While specific warranty details are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
