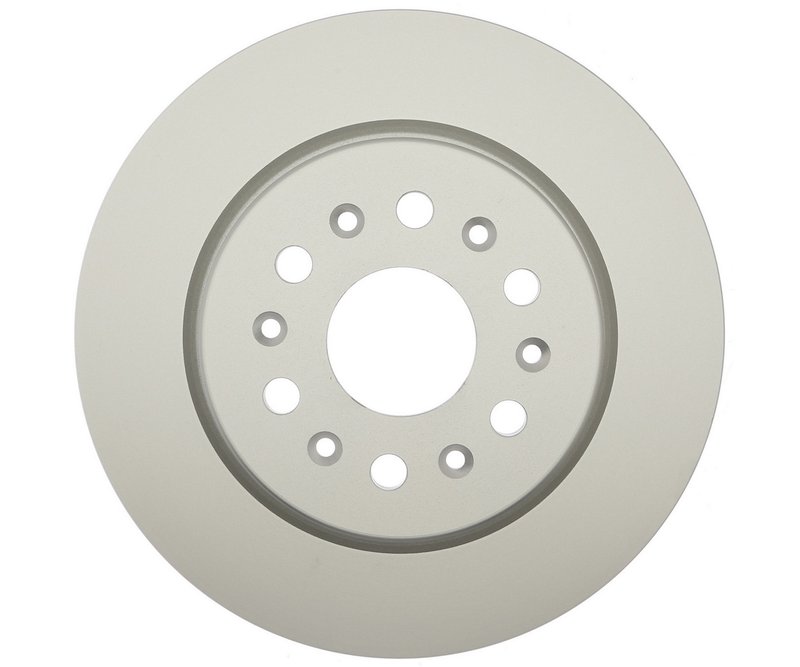

Raybestos 582060FZN Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Buick, Cadillac, Chevrolet, and GMC

The Raybestos Element3; Coated Rotor 582060FZN is engineered to provide consistent braking performance for select Buick, Cadillac, Chevrolet, and GMC models. Designed as a vented disc brake rotor, it offers enhanced heat dissipation and durability for vehicles like the Acadia, Blazer, Enclave, Equinox EV, OPTIQ, Spark, Traverse, XT5, and XT6.

• Part Number: 582060FZN
• Brand Line: Element3; Coated Rotor
• Vented disc brake rotor with smooth surface
• Nominal thickness: 0.906 inches (23.000 mm)
• Discard thickness: 0.787 inches (20.000 mm)
• Outside diameter: 12.402 inches (315.000 mm)
• Inside diameter: 8.150 inches (207.000 mm)
• Overall height: 1.890 inches (48.000 mm)
• Mounting bolt hole quantity: 6 with 0.630 inch (16.000 mm) diameter
• Center hole diameter: 2.657 inches (67.500 mm)
• Mounting bolt hole circle diameter: 4.724 inches (120.000 mm)
• Conventional rotor type

About the Raybestos Element3; Coated Rotor Line

The Element3; Coated Rotor line by Raybestos focuses on providing rotors with a protective coating that helps resist rust and corrosion, extending the rotor's service life. This coating also contributes to maintaining a clean appearance and consistent braking performance over time. The 582060FZN rotor is part of this line, combining vented rotor design with a smooth braking surface to optimize heat dissipation and reduce brake fade.

Technical Specifications and Features

This disc brake rotor features a vented design that improves airflow and cooling during braking, which is critical for maintaining performance under heavy use. The smooth surface ensures even pad contact, reducing noise and vibration. With a nominal thickness of 0.906 inches and a discard thickness of 0.787 inches, this rotor meets precise wear limits to maintain safety and effectiveness. The rotor’s 12.402-inch outside diameter and 8.150-inch inside diameter are engineered to fit specific vehicle models, ensuring proper fitment and function.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Buick Acadia and GMC Acadia models
• Addressing brake noise and vibration issues in Cadillac XT5 and XT6 vehicles
• Improving heat dissipation to reduce brake fade in Chevrolet Traverse and Blazer
• Restoring braking performance on Chevrolet Equinox EV and Spark
• Ensuring proper rotor fitment and durability for GMC Enclave and OPTIQ

Installation Notes and Tips

When installing the Raybestos 582060FZN rotor, ensure the mounting surface is clean and free of debris to promote proper rotor seating. Verify the rotor thickness before installation to confirm it is above the discard thickness of 0.787 inches. Use the correct torque specifications for the 6 mounting bolts to avoid rotor warping. This rotor is designed for conventional mounting and requires compatible brake pads for optimal performance.

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor line to meet or exceed OEM specifications, ensuring reliable braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or manufacturer for exact warranty terms.
