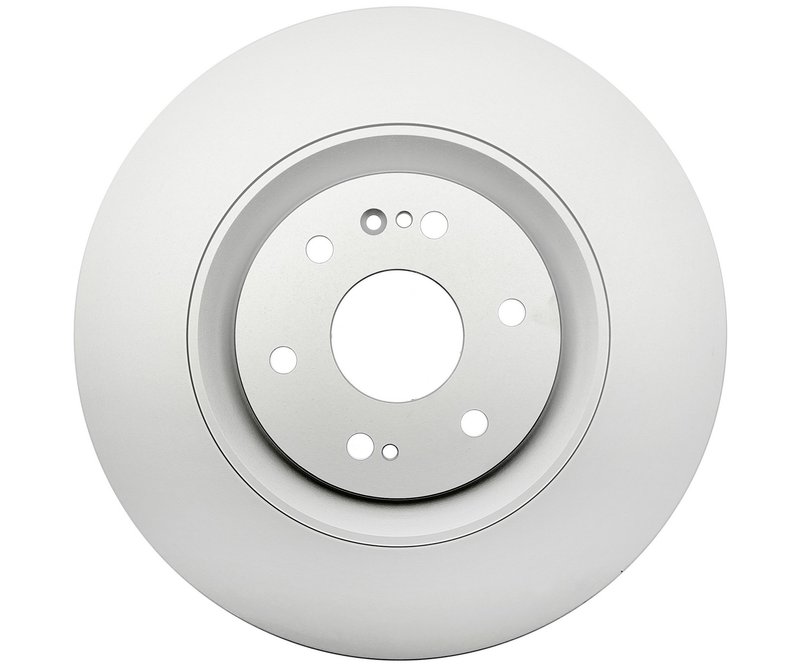

Raybestos 582799 Disc Brake Rotor - Front
| Brand | Raybestos 582799 |
|---|---|
| Position | Front |
| Material | Cast iron |
| Discard Thickness | 1.181 |
| Discard Thickness | 30 |
| Nominal Thickness | 1.26 |
| Nominal Thickness | 32 |
| Construction | Full cast |
| Inside Diameter | 10.394 |
| Inside Diameter | 264 |
| Overall Height | 2.145 |
| Overall Height | 54.5 |
| Outside Diameter | 16.141 |
| Outside Diameter | 410 |
| Grade Type | Regular |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.094 |
| Center Hole Diameter | 78.6 |
| Mounting Bolt Hole Circle Diameter | 139.7 |
| Mounting Bolt Hole Circle Diameter | 5.5 |
| Mounting Bolt Hole Diameter | 0.622 |
| Mounting Bolt Hole Diameter | 15.8 |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.622 |
| Stud/Lug Hole Diameter | 15.8 |
| Directional or Non-Directional Brake Surface | Non-directional |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Product line | Raybestos Specialty - Truck |
| Fits | Cadillac, Chevrolet, and GMC · 11 vehicles |
Vented design. Promotes efficient airflow for more consistent braking performance.
Full cast construction. Cast iron rotor built for dependable strength and heat management.
Non-directional surface. Helps simplify installation and maintain even brake contact.
Cross-references Centric Parts 120.66086, DuraGo BR901948-03 and 120.66084 for the same application. See all 17.
Front Brake Rotor for Heavy-Duty GM Applications
The Raybestos Specialty - Truck 582799 is a front disc brake rotor built for select GM truck and SUV applications. It uses a full cast, vented cast iron construction with a non-directional brake surface to support consistent braking performance and serviceability.
Fits 2025 Cadillac Escalade, front; Fits 2025 Cadillac Escalade ESV, front; Fits 2025 Chevrolet Silverado 1500, front; Fits 2025 Chevrolet Tahoe, front; Fits 2025 GMC Sierra 1500, front; Fits 2025 GMC Yukon, front; Fits 2025 GMC Yukon XL, front; Fits 2024 Chevrolet Tahoe, front; Fits 2021-2023 Chevrolet Tahoe, front with Police Package.
Key Features
- Part number 582799 from Raybestos Specialty - Truck
- Cast iron, full cast rotor construction
- Vented rotor design for front brake applications
- Non-directional brake surface for straightforward service prep
- Outside diameter: 16.141 in. (410 mm)
- Nominal thickness: 1.26 in. (32 mm)
- Discard thickness: 1.181 in. (30 mm)
- Center hole diameter: 3.094 in. (78.6 mm)
- 6-lug pattern with 5.5 in. (139.7 mm) bolt circle
Product Details
Raybestos Specialty - Truck focuses on brake components for truck and SUV duty cycles, and this rotor follows that application profile with a regular-grade cast iron design. The 582799 measures 16.141 inches in outside diameter, 2.145 inches in overall height, and 10.394 inches in inside diameter, with a 6-hole mounting pattern and 15.8 mm lug holes. It is a conventional, drum-in-hat style rotor with no ABS tone ring and no bearings included.
This rotor cross-references Centric Parts 120.66086 and DuraGo BR901948-03 for the same application. The Raybestos 582799 is a direct-fit front rotor for 2025 Chevrolet Silverado 1500, 2025 Chevrolet Tahoe, and 2025 GMC Sierra 1500 applications, along with the other listed GM truck and SUV fitments.
Common Brake Issues It Can Address
- Front brake pulsation from rotor wear or thickness variation
- Brake noise caused by a worn or heat-affected rotor surface
- Reduced braking consistency from a rotor at or near discard thickness
- Service needs on GM truck and SUV front brake systems
- Replacement for a vented front rotor with the correct hub and bolt pattern
Installation Notes
Verify rotor dimensions, hub center diameter, bolt circle, and lug-hole count before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation, and inspect pads, calipers, and hardware condition at the same time. For best results, follow the vehicle service manual for torque procedures and brake-in steps after installation.
Quality Assurance
Raybestos manufactures this rotor as a regular-grade brake component for truck and SUV service. The cast iron, full cast construction and application-specific dimensions support proper fitment on the listed GM vehicles, including 2021-2023 Chevrolet Tahoe Police Package models and 2024-2025 GM truck and SUV front brake applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Cadillac | Escalade | Front | GM Brake Code J61; Raybestos Specialty - Truck |
| 2025 | Cadillac | Escalade ESV | Front | GM Brake Code J61; Raybestos Specialty - Truck |
| 2025 | Chevrolet | Silverado 1500 | Front | GM Brake Code J61; Raybestos Specialty - Truck |
| 2025 | Chevrolet | Tahoe | Front | GM Brake Code J61; Raybestos Specialty - Truck |
| 2025 | GMC | Sierra 1500 | Front | GM Brake Code J61; Raybestos Specialty - Truck |
| 2025 | GMC | Yukon | Front | GM Brake Code J61; Raybestos Specialty - Truck |
| 2025 | GMC | Yukon XL | Front | GM Brake Code J61; Raybestos Specialty - Truck |
| 2024 | Chevrolet | Tahoe | Front | Raybestos Specialty - Truck |
| 2023 | Chevrolet | Tahoe | Front | with Police Package; Raybestos Specialty - Truck |
| 2022 | Chevrolet | Tahoe | Front | with Police Package; Raybestos Specialty - Truck |
| 2021 | Chevrolet | Tahoe | Front | with Police Package; Raybestos Specialty - Truck |
