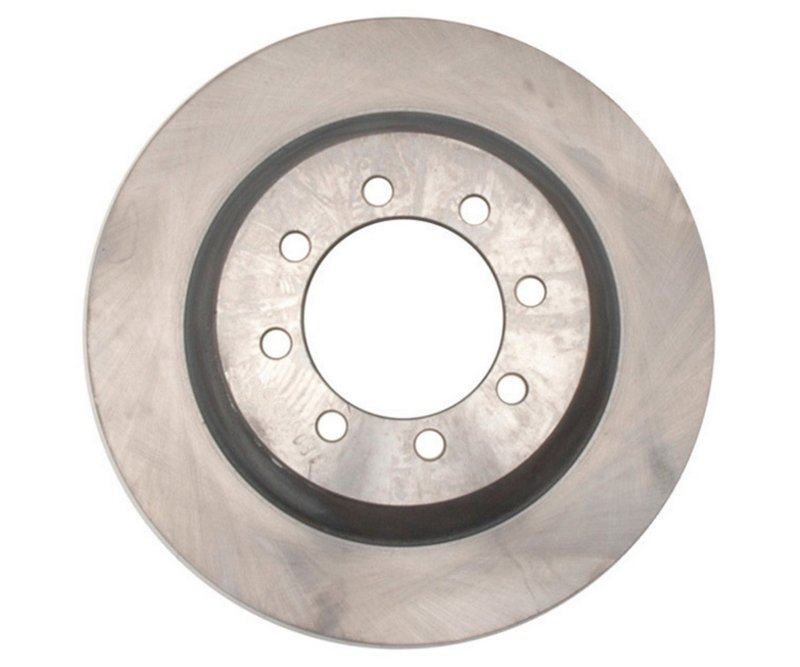

Raybestos 6020R Disc Brake Rotor - Front
| Brand | Raybestos 6020R |
|---|---|
| Position | Front |
| Discard Thickness | 0.940 |
| Discard Thickness | 23.900 |
| Nominal Thickness | 1.000 |
| Nominal Thickness | 25.400 |
| Overall Height | 3.850 |
| Overall Height | 97.800 |
| Outside Diameter | 12.560 |
| Outside Diameter | 319.000 |
| Mounting Bolt Hole Quantity | 8 |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 3.576 |
| Center Hole Diameter | 90.850 |
| Mounting Bolt Hole Circle Diameter | 120.650 |
| Mounting Bolt Hole Circle Diameter | 4.750 |
| Mounting Bolt Hole Diameter | 120.650 |
| Mounting Bolt Hole Diameter | 4.750 |
| Stud/Lug Hole Quantity | 8 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Product line | R-Line |
| Fits | Ford · 10 vehicles |
Vented design. Promotes efficient airflow for more consistent braking performance.
Conventional rotor. A straightforward disc brake rotor for standard replacement needs.
R-Line. Raybestos line focused on dependable everyday braking parts.
Cross-references AMS Automotive 6020, ATP 102230 and Centric Parts 121.65004 for the same application. See all 41.
Raybestos R-Line 6020R Front Brake Rotor
The Raybestos R-Line 6020R is a vented front disc brake rotor built for select Ford heavy-duty applications. With a 12.560-inch outside diameter, 8 mounting bolt holes, and a conventional drum-in-hat rotor design, it is sized for front axle service on dual rear wheel Ford trucks and vans that require this specific fitment.
Key Features
- Raybestos R-Line part number 6020R
- Vented front disc brake rotor
- 12.560 in. outside diameter for the specified Ford applications
- 1.000 in. nominal thickness and 0.940 in. discard thickness
- 8 mounting bolt holes with an 8-lug pattern
- 3.576 in. center hole diameter
- Conventional rotor design for standard brake service
R-Line Product Line Details
Raybestos R-Line focuses on replacement brake components for everyday repair work. For this rotor, the line emphasizes direct-fit dimensions and application-specific sizing, including the correct bolt circle, center hole, and overall height needed for the listed Ford front brake setups.
Detailed Description
Raybestos 6020R is a front brake rotor for 1968-1975 Ford F-350 and 1975-1976 Ford E-350 Econoline models with dual rear wheels, including E-350 applications built to chassis # A75000. The rotor’s vented construction helps support heat management during repeated braking, while the listed nominal and discard thickness measurements provide the dimensional reference needed during brake service. This part cross-references Centric Parts 121.65004 for the same application.
What It Helps Address
- Brake pulsation caused by rotor wear or thickness variation
- Reduced braking performance from an out-of-spec front rotor
- Rotor replacement needs during Ford F-350 front brake service
- Front brake service on Ford E-350 Econoline dual rear wheel vehicles
- Fitment issues when the original rotor requires the same bolt pattern and center bore
Installation Notes and Tips
Verify the vehicle’s front brake configuration before ordering, especially on Ford E-350 Econoline models with dual rear wheels and the chassis cutoff noted above. Confirm outside diameter, center hole diameter, bolt hole count, and overall height against the removed rotor to ensure proper fit. During installation, inspect pads, caliper condition, and hub surfaces so the new rotor seats evenly.
Quality Assurance
Raybestos manufactures this rotor as part of its R-Line replacement brake program, with application-specific dimensions intended to match the listed Ford front brake setups. Confirm all measurements and vehicle details before installation to ensure the correct part number, 6020R, is selected for service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1976 | Ford | E-350 Econoline | — | Front | With Dual Rear Wheels; To Chassis # A75000; R-Line |
| 1975 | Ford | E-350 Econoline | — | Front | With Dual Rear Wheels; To Chassis # A75000; R-Line |
| 1975 | Ford | F-350 | — | Front | Fits vehicles with dual rear wheels.; R-Line |
| 1974 | Ford | F-350 | RWD | Front | Fits vehicles with dual rear wheels.; R-Line |
| 1973 | Ford | F-350 | — | Front | Fits vehicles with dual rear wheels.; R-Line |
| 1972 | Ford | F-350 | — | Front | Fits vehicles with dual rear wheels.; R-Line |
| 1971 | Ford | F-350 | — | Front | Fits vehicles with dual rear wheels.; R-Line |
| 1970 | Ford | F-350 | — | Front | Fits vehicles with dual rear wheels.; R-Line |
| 1969 | Ford | F-350 | — | Front | Fits vehicles with dual rear wheels.; R-Line |
| 1968 | Ford | F-350 | — | Front | Fits vehicles with dual rear wheels.; R-Line |
