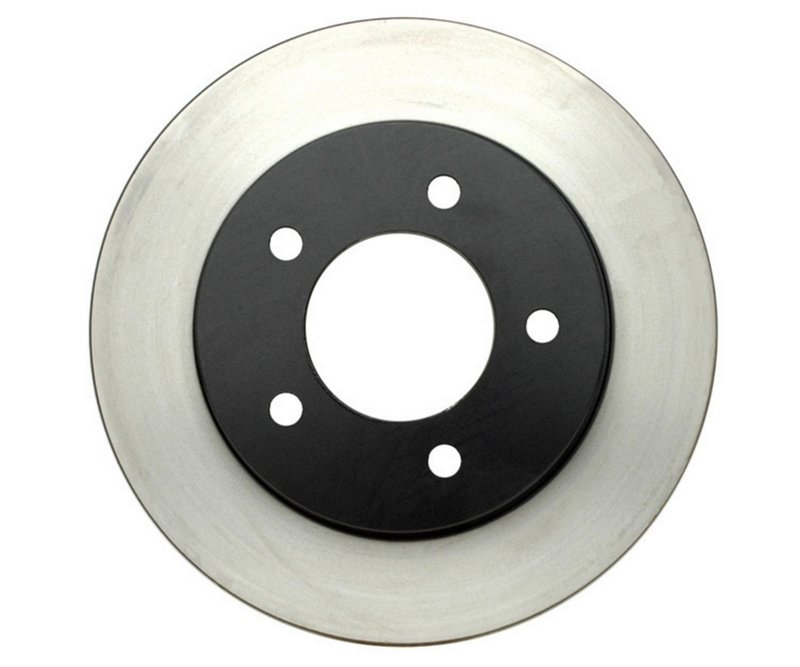

Raybestos 66630 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Ford F-150 and F-150 Heritage

The Raybestos Specialty - Truck Disc Brake Rotor 66630 is engineered to meet the braking demands of Ford F-150 and F-150 Heritage trucks. Designed with precision, this vented rotor ensures consistent performance and durability under heavy-duty conditions.

• Vented disc brake rotor for improved heat dissipation
• Overall diameter of 12.120 inches (307.85 mm) for optimal fit
• Nominal thickness of 1.025 inches (26.05 mm) with discard thickness at 0.965 inches (24.5 mm)
• Conventional rotor design compatible with drum-in-hat systems
• Five mounting bolt holes and stud/lug holes for secure installation
• Center hole diameter of 3.544 inches (90 mm) for precise alignment
• Mounting bolt hole circle diameter of 5.315 inches (135 mm)
• Overall height of 2.045 inches (51.95 mm) ensuring proper clearance

About the Raybestos Specialty - Truck Product Line

The Specialty - Truck line by Raybestos focuses on heavy-duty brake components tailored for truck applications. This product line emphasizes durability and performance under demanding conditions, making it suitable for vehicles like the Ford F-150 and F-150 Heritage. The 66630 rotor is part of this line, designed to provide reliable braking with vented construction to manage heat effectively during extended use.

Detailed Product Description

The Raybestos 66630 disc brake rotor features a vented design that enhances heat dissipation, reducing the risk of brake fade during prolonged braking. With a nominal thickness of 1.025 inches and a discard thickness of 0.965 inches, this rotor maintains structural integrity and safety throughout its service life. The rotor’s overall diameter of 12.120 inches and height of 2.045 inches ensure compatibility with the braking system of Ford F-150 and F-150 Heritage models. The conventional rotor type supports drum-in-hat configurations, and the five mounting bolt holes with a 5.315-inch bolt circle diameter provide a secure fitment. The center hole diameter of 3.544 inches allows for precise centering on the hub, contributing to smooth braking performance.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Ford F-150 and F-150 Heritage trucks
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves braking efficiency by restoring proper rotor thickness and heat management
• Prevents brake fade during heavy towing or hauling by using vented rotor design
• Ensures safe stopping power for trucks used in daily driving and work environments

Installation Notes and Tips

When installing the Raybestos 66630 rotor, ensure the mounting surface is clean and free of rust or debris to achieve proper rotor alignment. Verify that the rotor thickness is above the discard thickness of 0.965 inches before installation. Use the five mounting bolt holes and stud/lug holes to securely fasten the rotor, matching the 5.315-inch bolt circle diameter. It is recommended to inspect brake pads and hardware during rotor replacement to maintain overall braking system performance.

Quality Assurance and Warranty

Raybestos manufactures the 66630 rotor to meet strict quality standards for durability and performance. The Specialty - Truck line undergoes rigorous testing to ensure compatibility and reliability for Ford F-150 and F-150 Heritage vehicles. While specific warranty details are not provided, Raybestos products typically come with manufacturer-backed quality assurance to support long-term use.
