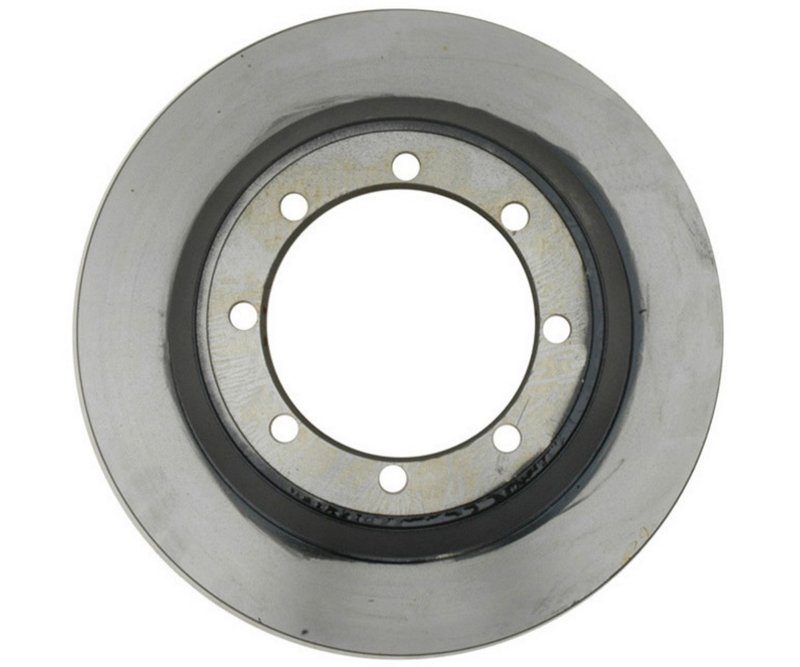

Raybestos 66834 Disc Brake Rotor - Rear

Overview of Raybestos Specialty - Truck Disc Brake Rotor 66834

The Raybestos Specialty - Truck Disc Brake Rotor 66834 is engineered for reliable braking performance on select Ford trucks and vans. Designed specifically for models like the Ford E-350 Club Wagon and F-150, this vented, drum-in-hat rotor meets precise specifications to maintain vehicle safety and handling.

• Vented disc brake rotor with drum-in-hat design
• Compatible with Ford E-350 Club Wagon, E-350 Econoline, F-150, and F-350 models
• Outside diameter of 12.835 inches (326 mm) for optimal fit
• Nominal thickness of 1.180 inches (29.95 mm) with discard thickness at 1.102 inches (28 mm)
• Eight mounting bolt holes with a 5.709 inch (145 mm) bolt circle diameter
• Center hole diameter of 4.855 inches (123.3 mm) for precise hub alignment
• Overall height of 4.360 inches (110.75 mm) to match factory specifications

Detailed Product Description

This Raybestos disc brake rotor, part number 66834, is part of the Specialty - Truck product line, which focuses on heavy-duty and commercial vehicle applications. The rotor features a vented design to improve heat dissipation during braking, reducing the risk of brake fade under demanding conditions. The drum-in-hat configuration integrates a parking brake drum within the rotor, providing a compact and efficient braking solution for trucks and vans.

With an outside diameter of 12.835 inches and a nominal thickness of 1.180 inches, this rotor is engineered to meet the exacting standards required for Ford trucks such as the E-350 Econoline and F-150 Heritage. The eight mounting bolt holes and precise bolt circle diameter ensure secure installation and compatibility with factory hubs.

Applications and Problem Solving

• Replacement for worn or warped rotors on Ford E-350 and F-150 models
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Restores proper braking performance and pedal feel
• Supports parking brake functionality with integrated drum-in-hat design
• Helps prevent brake fade during heavy-duty or commercial use

Installation Notes and Tips

• Verify rotor dimensions and bolt pattern against vehicle specifications before installation
• Ensure mounting surfaces are clean and free of debris for proper rotor seating
• Torque mounting bolts to manufacturer-recommended specifications
• Inspect brake pads and hardware for wear and replace as necessary during rotor installation
• Check parking brake adjustment after installation due to drum-in-hat design

Quality Assurance and Warranty

Raybestos Specialty - Truck rotors are manufactured to meet or exceed OEM standards for durability and performance. Each rotor undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Raybestos typically offers coverage against defects in materials and workmanship, providing confidence in the longevity of part number 66834 for your Ford E-350 and F-150 vehicles.
