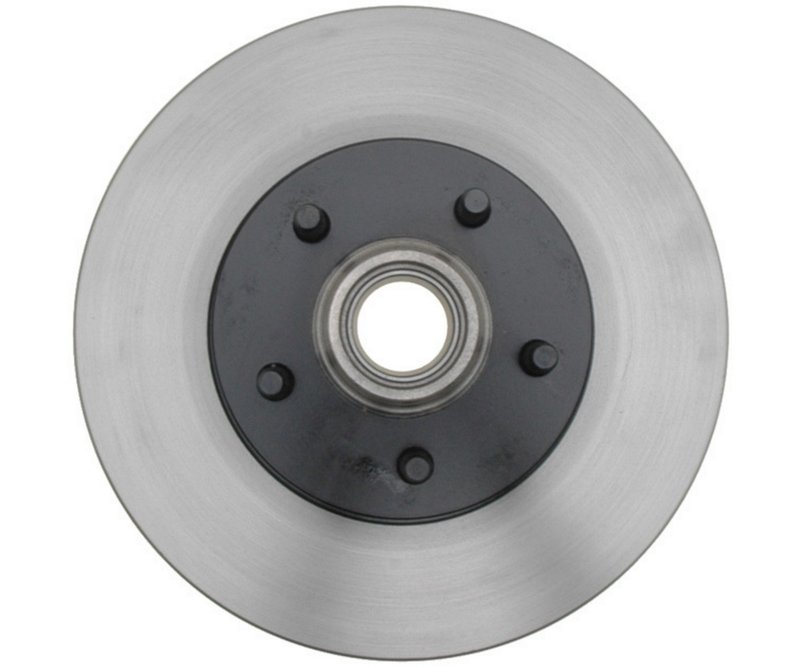

Raybestos 680093 Disc Brake Rotor and Hub Assembly - Front

Overview of Raybestos 680093 Disc Brake Rotor and Hub Assembly

The Raybestos Specialty - Truck 680093 disc brake rotor and hub assembly is engineered for reliable braking performance on Ford Ranger trucks. Designed to meet specific fitment requirements, this assembly ensures proper fit and function for your vehicle's braking system.

• Compatible with Ford Ranger models
• Includes disc brake rotor and hub assembly
• Mounting bolt hole quantity: 5
• Mounting bolt hole circle diameter: 114.3 mm (4.5 inches)
• Mounting bolt hole diameter: 13.7 mm (0.54 inches)
• Nominal rotor thickness: 26.05 mm (1.025 inches)
• Discard rotor thickness: 24.5 mm (0.965 inches)
• Stud/lug hole quantity: 5

Detailed Product Specifications

This disc brake rotor and hub assembly (part number 680093) is designed with precise dimensions to ensure compatibility with Ford Ranger trucks. The rotor features a nominal thickness of 26.05 mm (1.025 inches) and a discard thickness of 24.5 mm (0.965 inches), which are critical for maintaining safe braking performance and rotor longevity. The assembly includes five mounting bolt holes arranged in a circle with a diameter of 114.3 mm (4.5 inches), each hole measuring 13.7 mm (0.54 inches) in diameter. Additionally, the hub assembly accommodates five stud or lug holes, matching the Ford Ranger's wheel configuration.

About the Raybestos Specialty - Truck Product Line

The Specialty - Truck line from Raybestos focuses on components tailored for truck applications, emphasizing durability and fitment precision. This product line addresses the unique demands of truck braking systems, providing assemblies like the 680093 rotor and hub that meet specific vehicle requirements such as those found on the Ford Ranger.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake rotors and hubs on Ford Ranger trucks
• Resolves issues related to rotor thickness below safety limits
• Addresses mounting fitment problems due to incorrect bolt hole patterns
• Improves braking stability by ensuring proper rotor and hub alignment
• Helps eliminate vibrations caused by warped or uneven rotors

Installation Notes and Tips

When installing the Raybestos 680093 disc brake rotor and hub assembly, ensure the mounting surfaces are clean and free of debris. Verify that the bolt hole pattern matches the vehicle specifications exactly. Use a calibrated torque wrench to tighten mounting bolts to the manufacturer’s recommended torque settings. Check rotor thickness before installation to confirm it meets or exceeds the nominal thickness of 26.05 mm. Proper installation will help maintain braking performance and extend component life.

Quality Assurance and Warranty

Raybestos products undergo rigorous quality control to meet industry standards for durability and performance. The Specialty - Truck 680093 disc brake rotor and hub assembly is manufactured to precise specifications to ensure reliable operation on Ford Ranger vehicles. Warranty coverage details should be confirmed with the product documentation or authorized Raybestos distributors.
