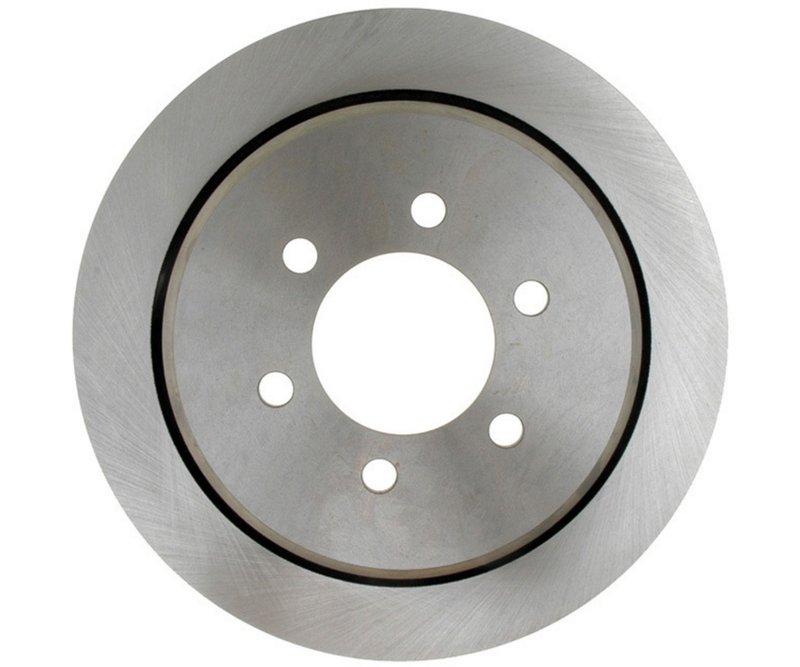

Raybestos 680106R Disc Brake Rotor - Rear

Overview of Raybestos R-Line 680106R Disc Brake Rotor

The Raybestos R-Line 680106R disc brake rotor is engineered for reliable braking performance on Ford Expedition and Lincoln Navigator models. Designed as a vented, drum-in-hat type rotor, it offers precise fitment and durability for these specific vehicles.

• Compatible with Ford Expedition and Lincoln Navigator
• Part number 680106R for exact replacement
• Vented disc brake rotor with drum-in-hat design
• Overall height: 2.025 inches (51.450 mm)
• Outside diameter: 13.465 inches (342.000 mm)
• Nominal thickness: 0.865 inches (21.950 mm)
• Discard thickness: 0.748 inches (19.000 mm)
• Mounting bolt hole quantity: 6 with 5.315 inch (135.000 mm) bolt circle diameter
• Center hole diameter: 3.544 inches (90.000 mm)

Detailed Product Description

The Raybestos R-Line 680106R rotor is a vented disc brake rotor featuring a drum-in-hat design, which integrates a parking brake drum within the rotor itself. This design is common for heavy-duty applications such as the Ford Expedition and Lincoln Navigator, providing both braking and parking brake functions in one component. The rotor measures 13.465 inches in outside diameter and has an overall height of 2.025 inches, ensuring proper clearance and fitment. The nominal thickness of 0.865 inches allows for effective heat dissipation, while the discard thickness of 0.748 inches indicates the minimum safe thickness before replacement is necessary. The rotor includes six mounting bolt holes arranged on a 5.315 inch bolt circle diameter, matching factory specifications for secure installation. The center hole diameter of 3.544 inches ensures proper centering on the hub.

R-Line Product Line Information

The R-Line by Raybestos is designed to provide reliable, OEM-quality replacement parts for a range of vehicles. This product line focuses on delivering rotors that meet or exceed factory specifications, ensuring consistent performance and fitment. The 680106R rotor exemplifies the R-Line’s commitment to quality and durability, making it suitable for the demanding braking needs of Ford Expedition and Lincoln Navigator owners.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Restores braking performance affected by rotor thickness below discard limits
• Addresses noise and vibration issues related to rotor surface irregularities
• Supports parking brake functionality with integrated drum-in-hat design
• Ensures proper fitment for vehicles requiring 6-bolt mounting patterns

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it meets nominal specifications
• Clean mounting surfaces to prevent rotor runout and vibration
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Use proper tools to avoid damage to the vented rotor design

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 680106R should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship. This rotor is engineered to provide reliable braking for Ford Expedition and Lincoln Navigator vehicles when installed and maintained according to manufacturer guidelines.
