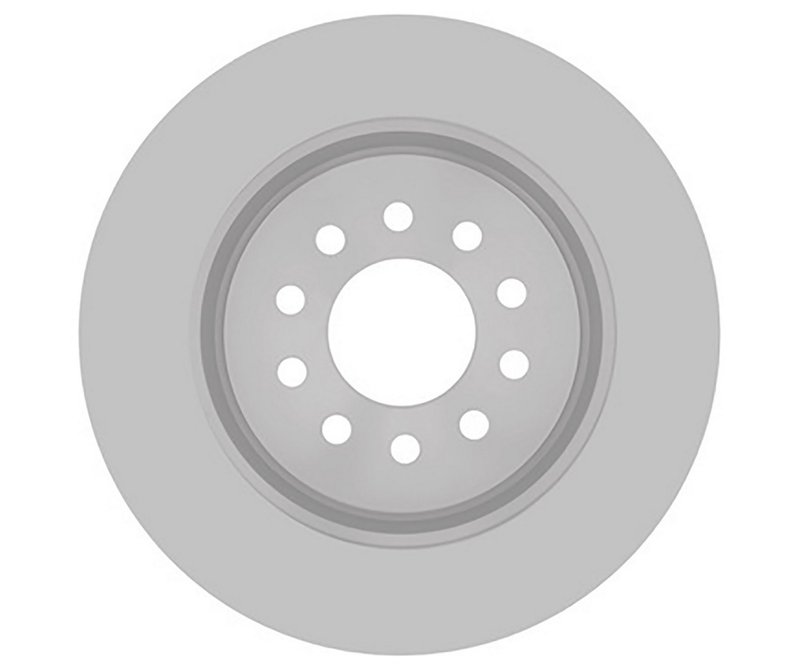

Raybestos 680107FZN Disc Brake Rotor - Rear

Overview of Raybestos Element3 Coated Rotor for Lincoln Town Car

The Raybestos Element3; Coated Rotor 680107FZN is engineered specifically for Lincoln Town Car models, providing reliable braking performance. This vented, drum-in-hat type disc brake rotor is designed to meet precise fitment and durability requirements.

• Compatible with Lincoln Town Car
• Part Number: 680107FZN
• Vented disc brake rotor with drum-in-hat design
• Overall height: 2.420 inches (61.450 mm)
• Outside diameter: 11.615 inches (295.000 mm)
• Mounting bolt hole quantity: 10
• Mounting bolt hole circle diameter: 4.500 inches (114.300 mm)
• Center hole diameter: 2.782 inches (70.650 mm)
• Nominal thickness: 0.750 inches (19.050 mm)
• Discard thickness: 0.709 inches (18.000 mm)

Details on Raybestos Element3; Coated Rotor Product Line

The Element3; Coated Rotor line from Raybestos focuses on enhanced corrosion resistance and consistent braking performance. The coating helps protect the rotor surface from rust and environmental damage, extending the service life of the rotor. This product line is designed to maintain the original equipment specifications, ensuring proper fit and function for vehicles like the Lincoln Town Car.

Technical Specifications and Features

This disc brake rotor features a vented design to improve heat dissipation during braking, reducing the risk of brake fade. The drum-in-hat configuration integrates a parking brake drum within the rotor, which is common for certain Lincoln Town Car models. The rotor measures 11.615 inches in outside diameter and has a nominal thickness of 0.750 inches, with a discard thickness of 0.709 inches, indicating when replacement is necessary. The mounting bolt hole pattern includes 10 holes with a 4.500-inch bolt circle diameter, ensuring secure installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Lincoln Town Car
• Addresses brake noise and vibration issues
• Improves braking consistency and pedal feel
• Prevents rust-related rotor surface degradation
• Supports proper parking brake function with drum-in-hat design

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.709 inches before installation. Clean the mounting surface and check the mounting bolt holes for proper alignment with the vehicle hub. Use proper torque specifications for the 10 mounting bolts to avoid rotor warping. The vented design requires adequate clearance for airflow, so verify fitment on the Lincoln Town Car model. The drum-in-hat feature integrates the parking brake drum, so inspect the parking brake components during installation.

Quality Assurance and Warranty

Raybestos Element3; Coated Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The coating provides additional protection against corrosion, contributing to longer rotor life. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
