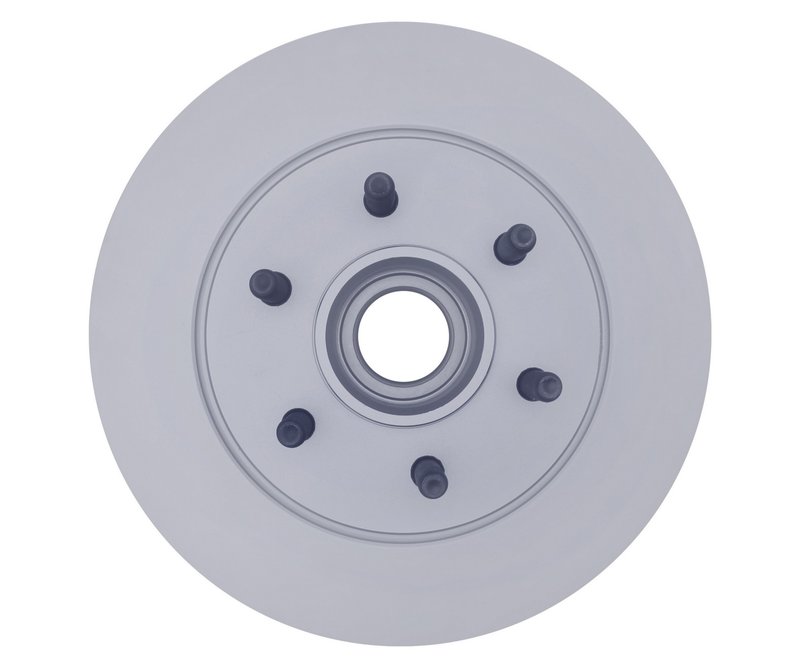

Raybestos 680178FZN Disc Brake Rotor and Hub Assembly - Front

Overview of Raybestos 680178FZN Disc Brake Rotor and Hub Assembly

The Raybestos Element3; Coated Rotor 680178FZN is designed for reliable braking performance on Ford and Lincoln trucks. This disc brake rotor and hub assembly is engineered to meet the specific requirements of Ford F-150, F-150 Heritage, and Lincoln Mark LT models.

• Compatible with Ford F-150, F-150 Heritage, and Lincoln Mark LT
• Part number 680178FZN for precise identification
• 6 mounting bolt holes with a 135 mm bolt circle diameter
• Nominal rotor thickness of 1.180 inches (29.950 mm)
• Discard thickness at 1.122 inches (28.500 mm) to ensure safety
• Includes hub assembly for integrated installation

Raybestos Element3; Coated Rotor Product Line Details

The Element3; Coated Rotor line from Raybestos features rotors with a protective coating designed to resist corrosion and extend service life. This coating helps maintain rotor integrity and appearance, especially in environments prone to moisture and road salt. The 680178FZN rotor and hub assembly benefits from this coating, providing consistent braking performance and durability for Ford and Lincoln trucks.

Technical Specifications and Features

This disc brake rotor and hub assembly includes six mounting bolt holes arranged on a 135 mm (5.315 inch) bolt circle diameter, ensuring proper fitment and secure attachment. The nominal thickness of the rotor is 1.180 inches (29.950 mm), with a discard thickness of 1.122 inches (28.500 mm), which indicates the minimum safe thickness before replacement is necessary. The mounting bolt hole diameter measures 0.600 inches (15.250 mm), compatible with the stud and lug hole quantity of six.

Applications and Problem Solving

• Replacement for worn or warped rotors on Ford F-150 and F-150 Heritage trucks
• Restores braking efficiency on Lincoln Mark LT vehicles
• Addresses rotor corrosion and surface degradation issues
• Eliminates brake noise caused by uneven rotor surfaces
• Ensures proper hub alignment and wheel mounting stability

Installation Notes and Tips

When installing the Raybestos 680178FZN rotor and hub assembly, verify compatibility with your specific Ford or Lincoln model year. Ensure the mounting surfaces are clean and free of debris before installation. Torque the mounting bolts to manufacturer specifications to maintain proper fit and function. It is recommended to inspect related brake components such as pads and calipers during installation for optimal performance.

Quality Assurance and Warranty

Raybestos products undergo rigorous quality control to meet industry standards for safety and durability. The Element3; Coated Rotor line is engineered to provide consistent braking performance over time. Please refer to Raybestos warranty documentation for specific coverage details related to the 680178FZN part number.
