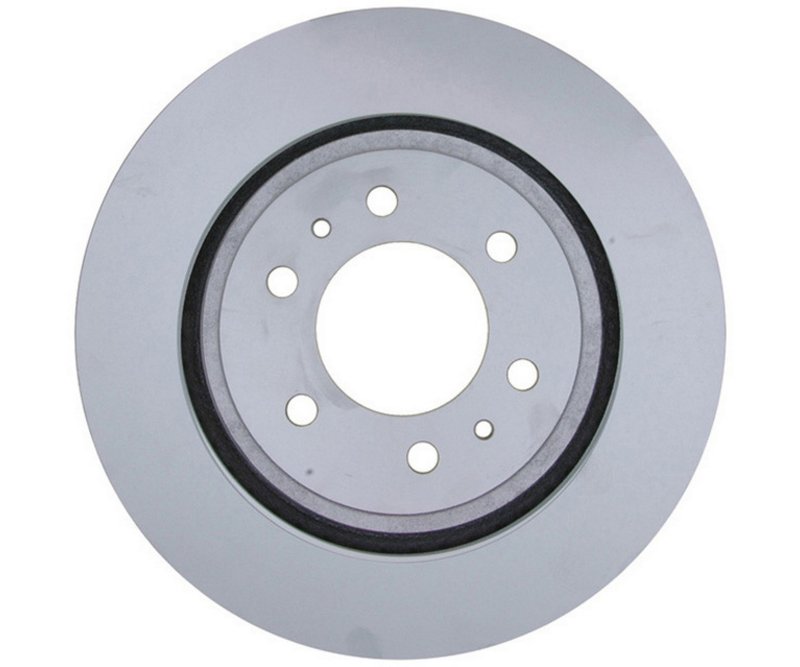

Raybestos 680508P Disc Brake Rotor - Front

Raybestos 680508P Front Brake Rotor

The Raybestos 680508P is a vented front disc brake rotor for police-duty applications on Ford Expedition, Ford F-150, and Lincoln Navigator models. Built for vehicles with a 6-lug, 6-bolt mounting pattern, it matches the dimensional requirements used on listed front axle fitments.

Key Features

• Vented conventional disc brake rotor for front axle use
• Outside diameter: 13.780 in. / 350.000 mm
• Nominal thickness: 1.339 in. / 34.000 mm
• Discard thickness: 1.260 in. / 32.000 mm
• Overall height: 1.945 in. / 49.400 mm
• Center hole diameter: 3.543 in. / 90.000 mm
• 6 mounting bolt holes with a 5.315 in. / 135.000 mm bolt circle
• Raybestos Specialty - Police line for severe-service front brake applications

Product Details

Raybestos 680508P is a conventional, vented front brake rotor engineered to match the fitment and dimensional profile required on police-package Ford Expedition, Ford F-150, and Lincoln Navigator vehicles. The rotor’s 350 mm outside diameter, 34 mm nominal thickness, and 90 mm center bore support proper brake system alignment on the listed applications. This part cross-references Bosch 20011442 and Wagner Brake BD126433E for the same application.

The Raybestos Specialty - Police line is aimed at demanding fleet use where consistent rotor dimensions and OE-style fit are important. For buyers searching for a front brake rotor for 2015-2020 Ford F-150 police package, or a front rotor for 2007-2021 Ford Expedition and 2007-2021 Lincoln Navigator police applications, the 680508P matches the confirmed vehicle coverage below.

What It Helps Address

• Front brake pulsation caused by worn or out-of-spec rotors
• Brake noise related to rotor wear or uneven braking surfaces
• Reduced braking consistency from heat-stressed front rotors
• Fitment issues on police-package vehicles requiring the correct 6-lug rotor dimensions
• Service replacement needs for front brake maintenance on listed Ford and Lincoln models

Installation Notes and Tips

Verify rotor dimensions, hub fit, and bolt pattern before installation. This rotor is for front position use only and is listed for conventional, vented applications. Confirm the vehicle’s police-package brake configuration and compare the discard thickness, nominal thickness, and center hole diameter to the original part before service.

• Fits 2022-2023 Lincoln Navigator, front, Raybestos Specialty - Police
• Fits 2007-2021 Ford Expedition, front, Specialty - Police
• Fits 2007-2021 Lincoln Navigator, front, Specialty - Police
• Fits 2015-2020 Ford F-150, front, Specialty - Police
• Fits 2010-2014 Ford F-150, front, w/ 6 Mounting Holes; Specialty - Police

Quality Assurance

Raybestos is a recognized brake brand with specialty coverage for police-duty applications. Part number 680508P is built to the listed dimensional specifications and vehicle fitment data for direct replacement use on the confirmed front applications.
