Raybestos 680544R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Raybestos R-Line

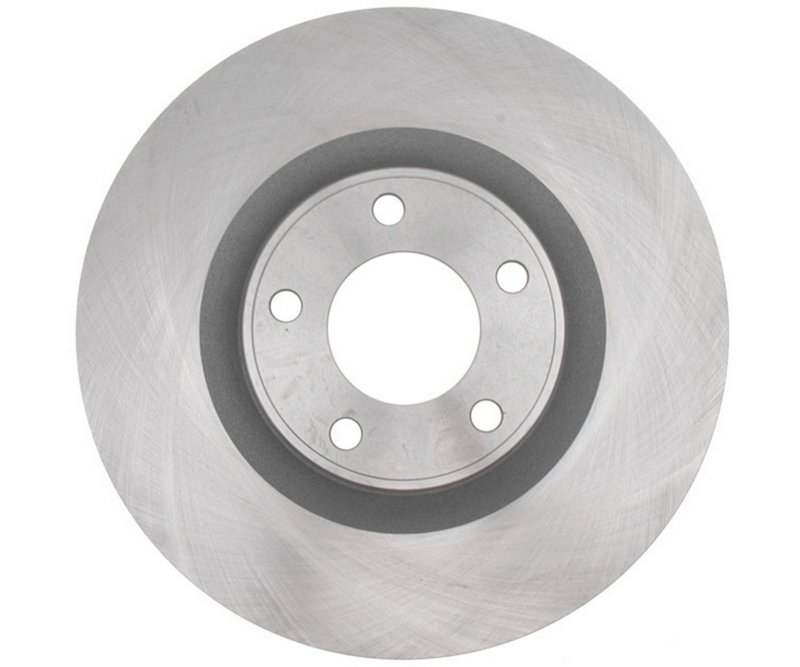

Raybestos 680544R Disc Brake Rotor - Front

Brand Raybestos 680544R
Position Front
Discard Thickness 1.024
Discard Thickness 26.000
Nominal Thickness 1.102
Nominal Thickness 28.000
Overall Height 1.900
Overall Height 48.250
Outside Diameter 12.598
Outside Diameter 320.000
Mounting Bolt Hole Quantity 5
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.835
Center Hole Diameter 72.000
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Diameter 114.300
Mounting Bolt Hole Diameter 4.500
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Conventional
Product line Raybestos R-Line
Fits Ford and Lincoln · 18 vehicles

Vented design. Promotes airflow for more consistent braking performance.

Conventional rotor. A straightforward disc brake replacement for everyday service.

R-Line series. Raybestos line focused on dependable brake components.

Cross-references BBB Industries 42255, Bosch 20010489 and Bosch 20011510 for the same application. See all 52.

$73.16Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $73.16
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Front Brake Rotor for Ford Edge and Lincoln MKX

Restore consistent front braking performance with the Raybestos R-Line 680544R disc brake rotor. This vented, conventional rotor is built for 5-lug front applications and matches the 320 mm / 12.598 in. diameter used on select Ford Edge and Lincoln MKX models.

The Raybestos R-Line focuses on OE-style replacement coverage for everyday repair work. Part number 680544R is a front rotor with a 1.102 in. nominal thickness, 1.024 in. discard thickness, 48.250 mm overall height, and a 72.000 mm center hole diameter.

  • Front disc brake rotor for select Ford Edge and Lincoln MKX applications
  • Vented, conventional rotor design
  • Outside diameter: 12.598 in. / 320.000 mm
  • Nominal thickness: 1.102 in. / 28.000 mm
  • Discard thickness: 1.024 in. / 26.000 mm
  • Overall height: 1.900 in. / 48.250 mm
  • 5 mounting bolt holes and 5 stud/lug holes
  • Center hole diameter: 2.835 in. / 72.000 mm
  • Mounting bolt hole circle diameter: 4.500 in. / 114.300 mm

Fitment Details

  • Fits 2015 Ford Edge, front, W/O hub; Raybestos R-Line
  • Fits 2010-2014 Ford Edge, front, R-Line
  • Fits 2007-2008 Ford Edge, front, R-Line
  • Fits 2009 Ford Edge, front, disc brake rotor - 320mm diameter; R-Line
  • Fits 2010-2015 Lincoln MKX, front, rotor diameter 12.60 in.; R-Line
  • Fits 2008 Lincoln MKX, front, rotor diameter 12.60 in.; R-Line
  • Fits 2009 Lincoln MKX, front, disc brake rotor - 320mm diameter; R-Line
  • Fits 2007 Lincoln MKX, front, disc brake rotor - 320mm diameter; R-Line

What This Rotor Helps Address

  • Brake pulsation from a worn or uneven front rotor
  • Reduced braking consistency during routine stop-and-go driving
  • Rotor replacement needs after thickness reaches discard limits
  • Front brake service on Ford Edge and Lincoln MKX vehicles
  • Noise or vibration related to rotor wear

Installation Notes

Verify rotor diameter, hub style, and 5-lug fitment before installation. This part is listed for front position applications only, and 2015 Ford Edge coverage is noted as W/O hub. Confirm the vehicle’s brake package and compare the existing rotor dimensions to the specifications above before ordering.

Quality Assurance

Raybestos R-Line is positioned as an OE-style replacement line for common brake service applications. Part number 680544R also cross-references Raybestos Brakes 680544 for the same application.

Related reading

This part fits 18 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2015FordEdge—FrontW/O Hub; Raybestos R-Line
2015LincolnMKX—FrontRotor Diameter 12.60 IN; R-Line
2014FordEdge—FrontR-Line
2014LincolnMKX—FrontRotor Diameter 12.60 IN; R-Line
2013FordEdge—FrontR-Line
2013LincolnMKX—FrontRotor Diameter 12.60 IN; R-Line
2012FordEdge—FrontR-Line
2012LincolnMKX—FrontRotor Diameter 12.60 IN; R-Line
2011FordEdge—FrontR-Line
2011LincolnMKX—FrontRotor Diameter 12.60 IN; R-Line
2010FordEdge—FrontR-Line
2010LincolnMKX—FrontRotor Diameter 12.60 IN; R-Line
2009FordEdge—FrontDisc Brake Rotor - 320mm Diameter; R-Line
2009LincolnMKX—FrontDisc Brake Rotor - 320mm Diameter; R-Line
2008FordEdgeAWDFrontR-Line
2008LincolnMKX—FrontRotor Diameter 12.60 IN; R-Line
2007FordEdgeAWDFrontR-Line
2007LincolnMKX—FrontDisc Brake Rotor - 320mm Diameter; R-Line
Directly replaces or cross-references 52 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BBB Industries — 42255Bosch — 20010489Bosch — 20011510Centric Parts — 120.61090Centric Parts — 121.61090Centric Parts — 320.61090DuraGo — BR900636Gates — 42254NGK — 54154Parts Authority — PRT5702PowerStop — AR8190EVCPromax — 14-54154Raybestos Brakes — 680544Raybestos Brakes — 680544FZNRaybestos Brakes — 680544PERRaybestos Brakes — 680544RStopTech — 126.61090SLStopTech — 126.61090SRStopTech — 127.61090LStopTech — 127.61090RStopTech — 128.61090LStopTech — 128.61090RStopTech — 227.61090LStopTech — 227.61090R7T4Z1125A7T431032A20-54154126.61090CSL126.61090CSR127.61090CL127.61090CR128.61090CL128.61090CR321.6109042255DG326360592865680544RGS20541546620796AX900636BD126432BD126432EBR54154BR900298BR900636-02BRR152BRR241PS126432YH145702YH145702CYH145702P
