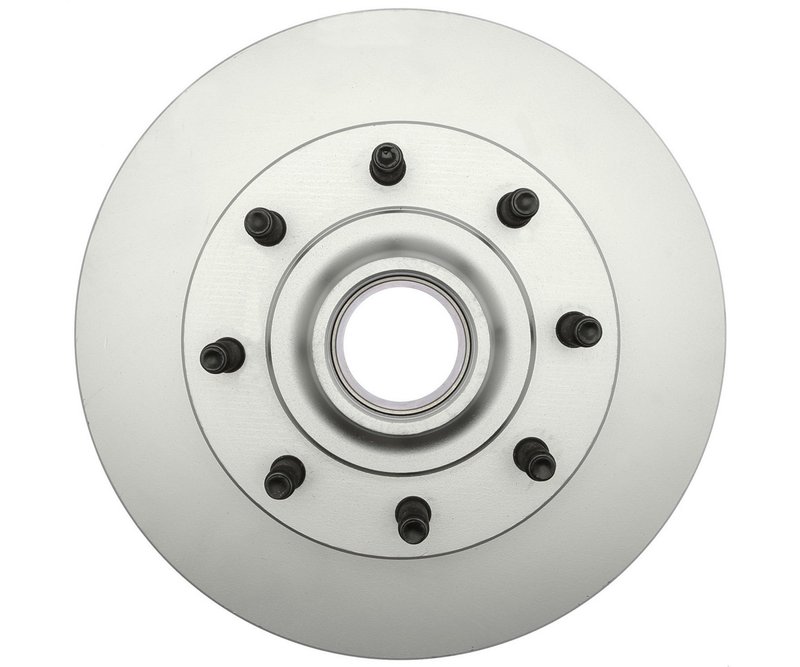

Raybestos 680681FZN Disc Brake Rotor and Hub Assembly - Front

Overview of Raybestos Element3 Coated Rotor 680681FZN

The Raybestos Element3; Coated Rotor 680681FZN is engineered for reliable braking performance on select Ford trucks and vans. Designed as a disc brake rotor and hub assembly, this part ensures compatibility with Ford E-150, E-250, E-350 Econoline, and F-250/F-350 models.

• Includes ABS tone ring for enhanced anti-lock braking system functionality
• Non-directional brake surface for versatile installation
• Nominal thickness of 1.58 inches (40.15 mm) with discard thickness at 1.51 inches (38.35 mm)
• Overall height measures 5.66 inches (143.75 mm)
• Mounting bolt hole circle diameter of 6.5 inches (165.1 mm)

Raybestos Element3; Coated Rotor Product Line Details

The Element3; Coated Rotor line from Raybestos focuses on corrosion resistance and durability through a specialized coating process. This coating helps protect the rotor surface from rust and environmental wear, extending the service life of the rotor and maintaining consistent braking performance. The 680681FZN rotor and hub assembly benefits from this coating, making it suitable for Ford E-150 Econoline vans and F-350 Super Duty trucks operating in varied conditions.

Technical Specifications and Features

This disc brake rotor and hub assembly features a nominal thickness of 1.58 inches (40.15 mm) and a discard thickness of 1.51 inches (38.35 mm), ensuring it meets precise wear limits for safe operation. The overall height of 5.66 inches (143.75 mm) and a mounting bolt hole circle diameter of 6.5 inches (165.1 mm) align with factory specifications for the compatible Ford models. The inclusion of an ABS tone ring supports the vehicle’s anti-lock braking system, providing accurate wheel speed data for improved braking control. The non-directional brake surface allows for flexible installation without concern for rotor orientation.

Compatible Vehicles and Common Applications

• Ford E-150 and E-150 Econoline vans requiring disc brake rotor and hub replacement
• Ford E-250 and E-350 Econoline vans and wagons with disc brake systems
• Ford E-350 Super Duty vans and trucks needing ABS-compatible rotors
• Ford F-250 and F-350 trucks requiring durable, coated rotors for heavy-duty use
• Replacement for worn or damaged rotors causing brake noise, vibration, or reduced stopping power

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 1.51 inches (38.35 mm) before installation. Verify the mounting bolt hole circle diameter of 6.5 inches (165.1 mm) matches the vehicle hub. The non-directional brake surface allows installation on either side without orientation concerns. Confirm ABS tone ring compatibility with the vehicle’s ABS system. Proper torque specifications should be followed when securing the rotor and hub assembly to avoid premature wear or damage.

Quality Assurance and Warranty

Raybestos manufactures the Element3; Coated Rotor 680681FZN to meet or exceed OEM standards for fit, form, and function. The coating process enhances corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
