Raybestos 680758R2 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 Raybestos R-Line

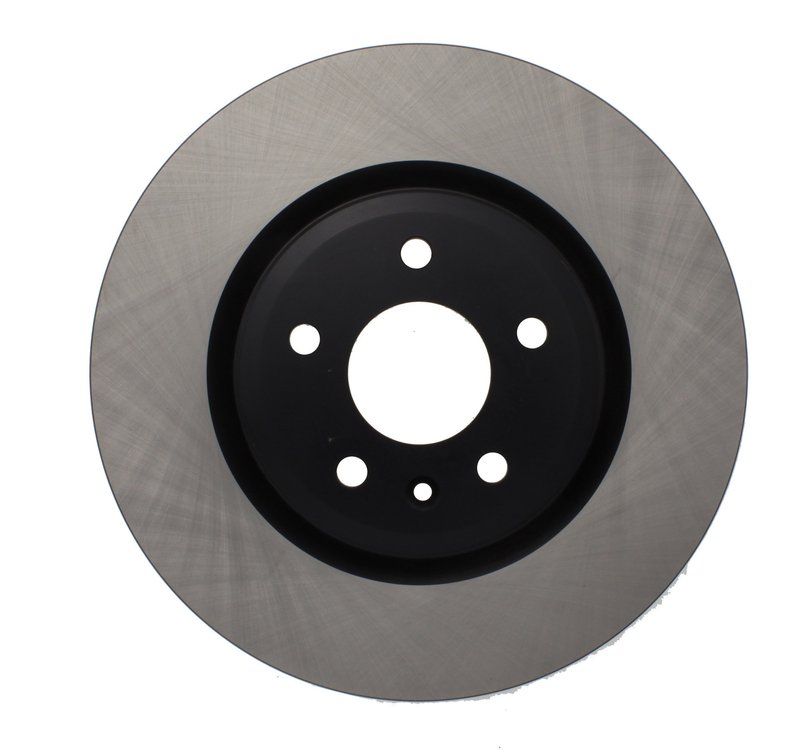

Raybestos 680758R2 Disc Brake Rotor - Front

Brand Raybestos 680758R2
Position Front
Material Cast iron
Discard Thickness 1.122
Discard Thickness 28.5
Nominal Thickness 1.183
Nominal Thickness 30.05
Inside Diameter 209.3
Inside Diameter 8.24
Overall Height 1.852
Overall Height 47.05
Outside Diameter 12.806
Outside Diameter 325.25
Mounting Bolt Hole Quantity 5
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.68
Center Hole Diameter 68.05
Mounting Bolt Hole Circle Diameter 114.3
Mounting Bolt Hole Circle Diameter 4.5
Mounting Bolt Hole Diameter 0.56
Mounting Bolt Hole Diameter 14.2
Stud/Lug Hole Quantity 5
Directional or Non-Directional Brake Surface Non-directional
Conventional Or Drum-In-Hat Type Rotor Conventional
Harmonize Code 8708.30.5030
Salability Restrictions No
UNSPSC Code 25171715
Product line Raybestos R-Line
Fits Ford and Lincoln · 42 vehicles

Cast iron construction. Provides durable braking performance with a smooth surface.

Vented rotor design. Helps dissipate heat for more consistent braking.

Conventional rotor type. A straightforward brake rotor replacement.

Cross-references AP Exhaust 54171, Bosch 20011505 and Bosch 20011511 for the same application. See all 53.

$87.11Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $87.11
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Brake Rotor for Ford and Lincoln

The Raybestos R-Line 680758R2 is a front disc brake rotor built for specific Ford and Lincoln applications, including Explorer, Flex, Taurus, MKT, and MKS models. It uses a cast iron construction with a vented, smooth, non-directional braking surface for consistent rotor service and straightforward pad contact.

Key Features

  • Cast iron construction for dependable braking performance
  • Vented, conventional rotor design
  • Smooth, non-directional brake surface
  • Outside diameter: 12.806 in. (325.25 mm)
  • Nominal thickness: 1.183 in. (30.05 mm)
  • Discard thickness: 1.122 in. (28.5 mm)
  • 5-lug pattern with 4.5 in. bolt circle diameter
  • Center hole diameter: 2.68 in. (68.05 mm)
  • Front position application

Product Details

Raybestos R-Line focuses on direct-fit brake service parts for everyday repair work, and the 680758R2 follows that approach with OE-style dimensions and a conventional vented rotor layout. This part number is used on front brake applications for 2010-2019 Ford Taurus, 2010-2019 Ford Flex with standard duty brakes, 2011-2012 Ford Explorer, 2013-2014 Ford Explorer with the listed brake configurations, 2010-2012 Lincoln MKT, 2013-2019 Lincoln MKT, and 2010-2012 Lincoln MKS with the listed fitment notes. If you are replacing a worn front brake rotor on a Ford Explorer or Lincoln MKT, Raybestos 680758R2 provides the correct size and mounting dimensions for the specified vehicles.

This part cross-references Raybestos Brakes 680758 and Bosch 20011505 for the same application.

Common Reasons for Replacement

  • Brake pulsation from rotor thickness variation
  • Scoring or uneven pad contact on the braking surface
  • Rotor wear reaching discard thickness
  • Noise or vibration during front brake service
  • Corrosion or heat-related surface damage

Installation Notes and Tips

Verify rotor diameter, center hole size, bolt pattern, and front-position fitment before installation. Match the vehicle’s brake configuration notes, including standard duty brakes, non-painted calipers, or heavy-duty exclusions where listed. Clean the hub mounting surface before installing the rotor, and inspect pads and caliper hardware during service to help maintain even braking performance.

Quality Assurance

Raybestos R-Line brake components are built to meet the dimensional requirements of the listed applications and support routine brake repair on Ford and Lincoln vehicles. The 680758R2 is a conventional vented rotor with OE-style fitment details for the specified front brake applications.

Related reading

This part fits 42 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
2019FordExplorerBaseFrontRaybestos R-Line
2019FordFlex—Frontw/ Standard Duty Brakes; Raybestos R-Line
2019FordTaurusSELFrontRaybestos R-Line
2019LincolnMKT—FrontNon Painted Calipers; Raybestos R-Line
2018FordExplorerBaseFrontRaybestos R-Line
2018FordFlex—Frontw/ Standard Duty Brakes; Raybestos R-Line
2018FordTaurusLimitedFrontRaybestos R-Line
2018LincolnMKT—FrontNon Painted Calipers; Raybestos R-Line
2017FordExplorerBaseFrontRaybestos R-Line
2017FordFlex—Frontw/ Standard Duty Brakes; Raybestos R-Line
2017FordTaurusSELFrontRaybestos R-Line
2017LincolnMKT—FrontRotor Diameter 12.80in; Raybestos R-Line
2016FordExplorerBaseFrontRaybestos R-Line
2016FordFlex—Frontw/ Standard Duty Brakes; Raybestos R-Line
2016FordTaurusSELFrontRaybestos R-Line
2016LincolnMKT—FrontRotor Diameter 12.80in; Raybestos R-Line
2015FordExplorerBaseFrontRaybestos R-Line
2015FordFlex—Frontw/ Standard Duty Brakes; Raybestos R-Line
2015FordTaurusSELFrontRaybestos R-Line
2015LincolnMKT—FrontRotor Diameter 12.80in; Raybestos R-Line
2014FordExplorer—FrontStandard Duty; Raybestos R-Line
2014FordFlex—Frontw/ Standard Duty Brakes; Raybestos R-Line
2014FordTaurusLimitedFrontRaybestos R-Line
2014LincolnMKT—FrontRotor Diameter 12.80in; Raybestos R-Line
2013FordExplorerBaseFrontwithout Heavy Duty Brakes; Raybestos R-Line
2013FordFlex—Frontw/ Standard Duty Brakes; Raybestos R-Line
2013FordTaurusSELFrontRaybestos R-Line
2013LincolnMKT—FrontRotor Diameter 12.80in; Raybestos R-Line
2012FordExplorer—FrontRaybestos R-Line
2012FordFlex—Frontw/ Standard Duty Brakes; Raybestos R-Line
2012FordTaurus—FrontRaybestos R-Line
2012LincolnMKS—FrontThru 02/05/2012; Raybestos R-Line
2012LincolnMKT—FrontRaybestos R-Line
2011FordExplorer—FrontRaybestos R-Line
2011FordFlex—FrontRaybestos R-Line
2011FordTaurus—FrontRaybestos R-Line
2011LincolnMKS—FrontRaybestos R-Line
2011LincolnMKT—FrontRaybestos R-Line
2010FordFlex—FrontRaybestos R-Line
2010FordTaurus—FrontRaybestos R-Line
2010LincolnMKS—FrontRaybestos R-Line
2010LincolnMKT—FrontRaybestos R-Line
Directly replaces or cross-references 53 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AP Exhaust — 54171Bosch — 20011505Bosch — 20011511Centric Parts — 120.61102Centric Parts — 121.61102Centric Parts — 320.61102DuraGo — BR901020Parts Authority — PRT6124PowerStop — AR8194EVCPowerStop — AR85137EVCRaybestos Brakes — 680758Raybestos Brakes — 680758FZNRaybestos Brakes — 680758PERRaybestos Brakes — 680758RStopTech — 126.61102SLStopTech — 126.61102SRStopTech — 127.61102LStopTech — 127.61102RStopTech — 128.61102RStopTech — 227.61102LStopTech — 227.61102RWagner Brake — BD180462E120.61102CRY126.61102CSL126.61102CSR128.61102CL128.61102CR128.61102L321.611021407-2703451407-3224551427-7318474227842278DL621261RGS680758RGS90102029010206621261AG1Z1125ABD180285BD180462BR54171BR901020-02CB5Z1125AG09526SDN1000393056WBRNBRR12R61102TN680758GEOYH322455YH322455CYH322455P
